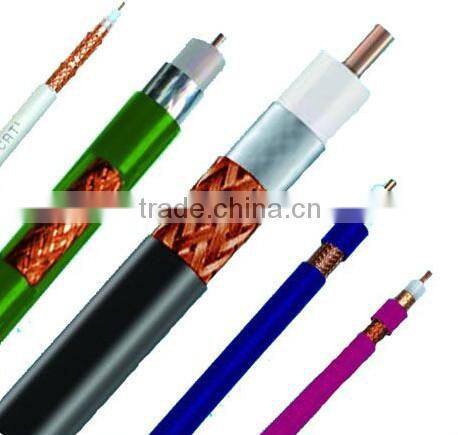

xlpe armoured cable, stainless steel braided cable, cable braided
- 10000 Meter / Meters per Month
- Tianjin port or any port in china
- T/T Credit Card
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Place of Origin: | Hebei, China | Brand Name: | yiteng | Insulation Material: | XLPE |
Type: | Low Voltage | Application: | Industrial | Conductor Material: | Copper |
Jacket: | Other, PVC, PVC, XLPE, PE or other |
Product Description
xlpe armoured cable, stainless steel braided cable, cable braided
Advantage
Main advantage
ISO9001
Factory
OEM
SGS
Single core: ≥20(d+D)±5%.
Three-core:≥15(d+D)±5%(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor)
1. Material: Cooper, Aluminum
2. Rated voltage: low and medium voltage
3. Wire identification: Red, yellow, blue, white, black
4. No. Of cores : Single core cable: from 1.5 mm2 to 800 mm2; Multi-core cable: from 1.5 mm2 to 400 mm2
5. Standard: Low voltage: IEC60502-1 Medium voltage :IEC60502-2 or other requirement.
6. Insulation: PVC, XLPE, PE
7. Application: Suitable for indoor, channel, conduit,underground,vertical well etc.
8. Nominal cross section area: from 1.5 mm2 to 800 mm2.
Rated Voltage,Core Numbers & Nominal Cross-section Area as following Table 1-1
U0/Um(kv) | 1st class | 0.6/1 | 1.8/3 | 3.6/6 | 6/10 | 8.7/15 | 12/20 | 18/30 | 21/35 |
No.of Core | 2nd class | 1/1 | 3/3 | 6/6 | 8.7/10 | 12/15 | 18/20 | - | 26/35 |
1 Core | Section area(mm2) | 1.5-800 | 25-800 | 25-800 | 25-800 | 35-800 | 50-800 | 50-800 | 50-800 |
2 Core | Section Area(mm2) | 1.5-185 | / | / | / | / | / | / | / |
3 Core | Section area(mm2) | 1.5-400 | 25-400 | 25-400 | 25-400 | 35-400 | 50-400 | 50-400 | 50-400 |
4 Core | Section Area(mm2) | 2.5-400 | 25-400 | / | / | / | / | / | / |
5 Core | Section area(mm2) | 2.5-400 | 25-400 | / | / | / | / | / | / |
Description & Application Occasion of cable
Type | Description | Application n | |
Cu | Al | ||
YJV | YJLV | XLPE insulation PVC sheath power cable | To be laid indoors, in tunnel, cable furrow or pipe, the cable couldn't bear mechanical force outside |
YJY | YJLY | XLPE insulation PE sheath power cable | |
YJV22 | YJLV22 | XLPE insulation, steel tape armor, PVC sheath power cable | To be laid underground, the cable could bear certain mechanical force, but it couldn't bear great pulling force. |
YJV23 | YJLV23 | XLPE insulation, steel tape armor, PE sheath power cable | |
YJV62 | YJLV62 | XLPE insulation, have no the magnetism steel tape armor, PE sheath power cable | |
YJV32 | YJLV32 | XLPE insulation, thin steel-wire armor, PVC sheath power cable | Be applicable to the well, water inside and fall in the bad soil, the cable cans bear the equal dint outside the machine with pull the dint . |
YJV72 | YJLV72 | XLPE insulation, have no the magnetism thick steel-wire armor, PVC sheath power cable | |
YJV42 | YJLV42 | XLPE insulation, thick steel-wire armor, PVC sheath power cable | Be applicable to the well, underwater with the bottom of sea, the cable cans bear the bigger pressure with lead to pull the dint. |
Special Note | ,6272.,. The single-core magnetism material packs the cable is not suitable for to use for the AC power supply back track, the necessity hour eligibility uses the single-core 62 or 72 type pack the cable. Disallow the cent to cross the magnetism piping mutually when single-core cable establish, the in order to prevent results in the descent that cable transport electric current ability. |
We can product other product and accept OEM .If you have any question or requirement ,contact me .
Other product:
Power cable
Rubber cable
Control cable
Shided cable
Mining cable
Boat cable
Special cable
......
