Rated Voltage 1KV and Below Copper Fixed Laying Power Cables

Rated Voltage 1KV and Below Copper Fixed Laying Power Cables photo-1

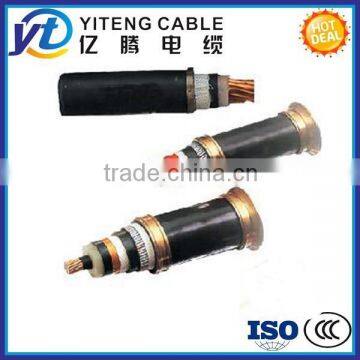

Rated Voltage 1KV and Below Copper Fixed Laying Power Cables photo-2

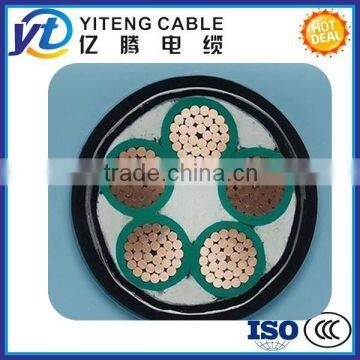

Rated Voltage 1KV and Below Copper Fixed Laying Power Cables photo-3

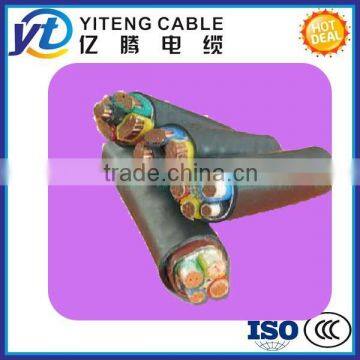

Rated Voltage 1KV and Below Copper Fixed Laying Power Cables photo-4

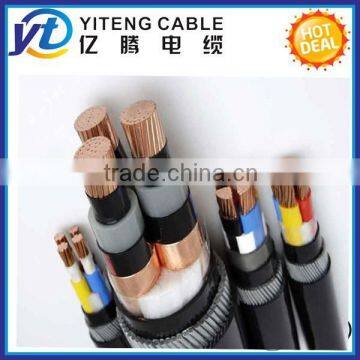

Rated Voltage 1KV and Below Copper Fixed Laying Power Cables photo-5
Rated Voltage 1KV and Below Copper Fixed Laying Power Cables photo-6
US$ 1 - 25 MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
YITENG
Model Number:
0.6/1kv 8.7/15KV 26/35kV
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN SHANGHAI QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name YITENG
Model Number 0.6/1kv 8.7/15KV 26/35kV
Insulation Material XLPE
Type Low Voltage
Application Industrial
Conductor Material Copper
Jacket PVC

Rated voltage 1KV and below copper fixed laying power cables



Product Description

Rated voltage 1KV and below copper fixed laying power cables for use in mines

Standard

MT 818—1999



Scope

This product is suitable for coal mine 0.6/1KV and below rated voltage transmission and distribution lines .



Use features

Permissible working temperature of cable conductor : PVC insulation is 65 ℃;
XLPE insulation is 90 ℃;
Cable laying and installation allows the temperature should not be less than 0 ℃.
Cable minimum bend radius of 15 (D + d) ± 5%



Model Name

Model

Name

Use

MVV

PVC insulated and sheathed power cable

Mine power transmission lines , but can not bear external mechanical forces

MVV22

Mine PVC insulated steel tape armored PVC sheathed power cable

Mine power transmission lines , able to bear external mechanical forces

MYJV

Crosslinked vinyl insulated PVC sheathed power cable for mining

Mine power transmission lines , but can not bear external mechanical forces

MYJV22

Crosslinked vinyl insulated steel tape armored PVC sheathed power cables for use in mines

Mine power transmission lines , able to bear external mechanical forces

MYJV32

XLPE insulated , steel wire armored PVC sheathed power cables for use in mines

Mine power transmission lines , can withstand a certain degree of tension

MYJV42



XLPE insulated thick steel wire armored PVC sheathed power cable



Mine power transmission lines , able to withstand greater tension



Production range

Model

Pressure rating

0.6/1KV

Number of cores

Nominal cross section(mm2)

MVV

3+1Core

4Core

2.5~300

1.5~300

MVV22

3+1Core

4Core

2.5~300

1.5~300

MYJV

3+1Core

4Core

2.5~300

1.5~300

MYJV22

3+1Core

4Core

2.5~300

1.5~300

MYJV32

3+1Core

4Core

2.5~300

1.5~300

MYJV42

3+1Core

4Core

2.5~300

1.5~300

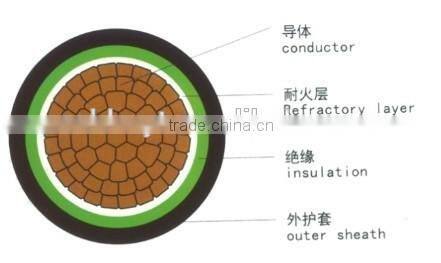

 Rated voltage 1KV and below copper fixed laying power cables

  Rated voltage 1KV and below copper fixed laying power cables



Yiteng Cable Technology Hebei Co., Ltd
Established Year: 2014
Registered capital of RMB:100,000,000
Factory Area:36,000m2
Manufacturing Capacity per year: 250000km
Number of Employees: 250



Main products:

Bare conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);

Aerial Bundled Cable (ABC Cable);

Power cable,Electrical wire cable,

Armored cables,

Control cables,

Rubber insulated cables, PVC insulated wires and cables,

Battery cables,Instrument cables, Coaxial cables,Flat cables,

Welding cables,House wire,Special Cables etc.
