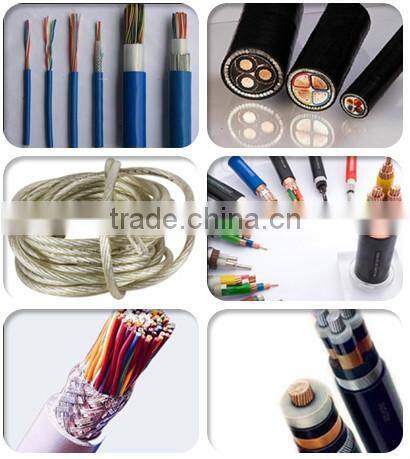

cable supplier, cable manufacturer
Advantage
Main advantage
ISO9001
Factory
OEM
SGS
Single core: ≥20(d+D)±5%.
Three-core:≥15(d+D)±5%(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor)
1. Material: Cooper, Aluminum
2. Rated voltage: low and medium voltage
3. Wire identification: Red, yellow, blue, white, black
4. No. Of cores : Single core cable: from 1.5 mm2 to 800 mm2; Multi-core cable: from 1.5 mm2 to 400 mm2
5. Standard: Low voltage: IEC60502-1 Medium voltage :IEC60502-2 or other requirement.
6. Insulation: PVC, XLPE, PE
7. Application: Suitable for indoor, channel, conduit,underground,vertical well etc.
8. Nominal cross section area: from 1.5 mm2 to 800 mm2.
Rated Voltage,Core Numbers & Nominal Cross-section Area as following Table 1-1
U0/Um(kv) |
1st class |
0.6/1 |
1.8/3 |
3.6/6 |
6/10 |
8.7/15 |
12/20 |
18/30 |
21/35 |
No.of Core |
2nd class |
1/1 |
3/3 |
6/6 |
8.7/10 |
12/15 |
18/20 |
- |
26/35 |
1 Core |
Section area(mm2) |
1.5-800 |
25-800 |
25-800 |
25-800 |
35-800 |
50-800 |
50-800 |
50-800 |
2 Core |
Section Area(mm2) |
1.5-185 |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
3 Core |
Section area(mm2) |
1.5-400 |
25-400 |
25-400 |
25-400 |
35-400 |
50-400 |
50-400 |
50-400 |
4 Core |
Section Area(mm2) |
2.5-400 |
25-400 |
/ |
/ |
/ |
/ |
/ |
/ |
5 Core |
Section area(mm2) |
2.5-400 |
25-400 |
/ |
/ |
/ |
/ |
/ |
/ |
Description & Application Occasion of cable
Type |
Description |
Application n |
|
Cu |
Al |
||
YJV |
YJLV |
XLPE insulation PVC sheath power cable |
To be laid indoors, in tunnel, cable furrow or pipe, the cable couldn't bear mechanical force outside |
YJY |
YJLY |
XLPE insulation PE sheath power cable |
|
YJV22 |
YJLV22 |
XLPE insulation, steel tape armor, PVC sheath power cable |
To be laid underground, the cable could bear certain mechanical force, but it couldn't bear great pulling force. |
YJV23 |
YJLV23 |
XLPE insulation, steel tape armor, PE sheath power cable |
|
YJV62 |
YJLV62 |
XLPE insulation, have no the magnetism steel tape armor, PE sheath power cable |
|
YJV32 |
YJLV32 |
XLPE insulation, thin steel-wire armor, PVC sheath power cable |
Be applicable to the well, water inside and fall in the bad soil, the cable cans bear the equal dint outside the machine with pull the dint . |
YJV72 |
YJLV72 |
XLPE insulation, have no the magnetism thick steel-wire armor, PVC sheath power cable |
|
YJV42 |
YJLV42 |
XLPE insulation, thick steel-wire armor, PVC sheath power cable |
Be applicable to the well, underwater with the bottom of sea, the cable cans bear the bigger pressure with lead to pull the dint. |
|
Special Note |
,6272.,. The single-core magnetism material packs the cable is not suitable for to use for the AC power supply back track, the necessity hour eligibility uses the single-core 62 or 72 type pack the cable. Disallow the cent to cross the magnetism piping mutually when single-core cable establish, the in order to prevent results in the descent that cable transport electric current ability. |
||
Other product:
Power cable
Rubber cable
Control cable
Shided cable
Mining cable
Special cable
......
1. Your inquiry related to our products or prices will be replied in 24 hours.
2. Well-trained and experienced staffs to answer all your inquires in fluent English.
3. Distributorship are offered for your unique design and some our current models.
4. OEM/ODM any your customized points, we can help you to design and put into product.
5. Protection of your sales area, ideas of design and all your private information.
