1 Application:

It is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable. Power cables for power networks, underground, outdoors and in cable ducting

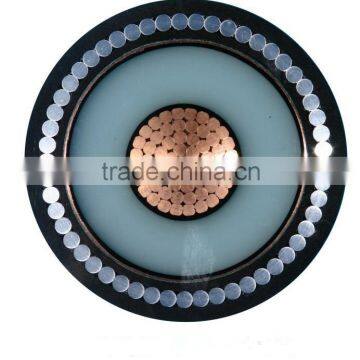

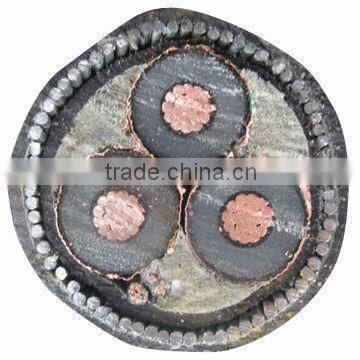

 2 Construction

Standards: BS6622, BS EN/IEC 60228,IEC60502.2

Conductor: Class 2 stranded plain copper conductor to BS EN 60228:2005 (previously BS6360)

Conductor screen: Semi-conducting material

Insulation: XLPE (Cross-Linked Polyethylene) Type GP8 to BS7655

Insulation Screen: Semi-conducting material

Metallic Screen: Individual and overall copper tape screen to BS6622

Filler: PET (Polyethylene Terephthalate) fibres

Separator: Binding tape

Bedding: PVC (Polyvinyl Chloride) Type TM1 to BS7655

Armoring:

Single Core: Aluminum Wire Armored (AWA)

MultiCore: Steel Wire Armored (SWA)

Sheath: PVC (Polyvinyl Chloride) Type TM1 to BS7655

Color: Red or Black

3 Using features:

1.Rated voltage: Uo/U:3.6/6kV, 6/10kV(11kV), 12/20kV(24kV), 19/33kV, 26/35kV(35kV).

2. No. of core: Single core or three cores.

3. The highest allowed operating temperature of conductor for long-term working is 90oC.

 In short-circuit (Max. long-term is no more than 5 seconds). The highest temperature for

conductor is no more than 250℃.

4. D.C. resistance of the conductor complies with the stipulations of 3.6/6kV, 6/10kV(11kV),

12/20kV(24kV), 19/33kV, 26/35kV(35kV).

5. The environment temperature should be no lower than 0oC when lay. Otherwise it

 should be preheated.

6. The cable is laid without horizontal drop limit.

7. Working Frequency Voltage Test: 3.5Uo/5min without puncture.

8. Partial Discharge Test: The discharge volume should be no more than 10pC under

 1.73Uo for the cable.

9. Minimum Bending Radius

Single core - Fixed: 15 x overall diameter

3 core - Fixed: 12 x overall diameter

(Single core 12 x overall diameter and 3 core 10 x overall diameter where bands are

 positioned adjacent to joint or terminations provided that the bending is carefully

controlled by the use of a former)

Note:

The single core armored cables are used for D.C. system only. If used for A.C. system,

 the magnetic isolation should be applied on the steel armor wires of non-magnetical

materials should be used.

Production Processing:

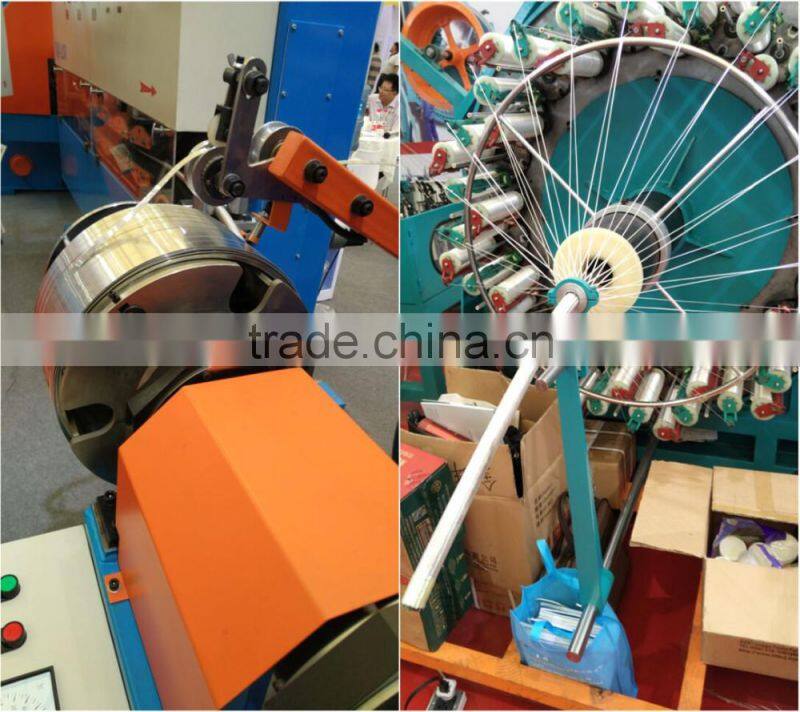

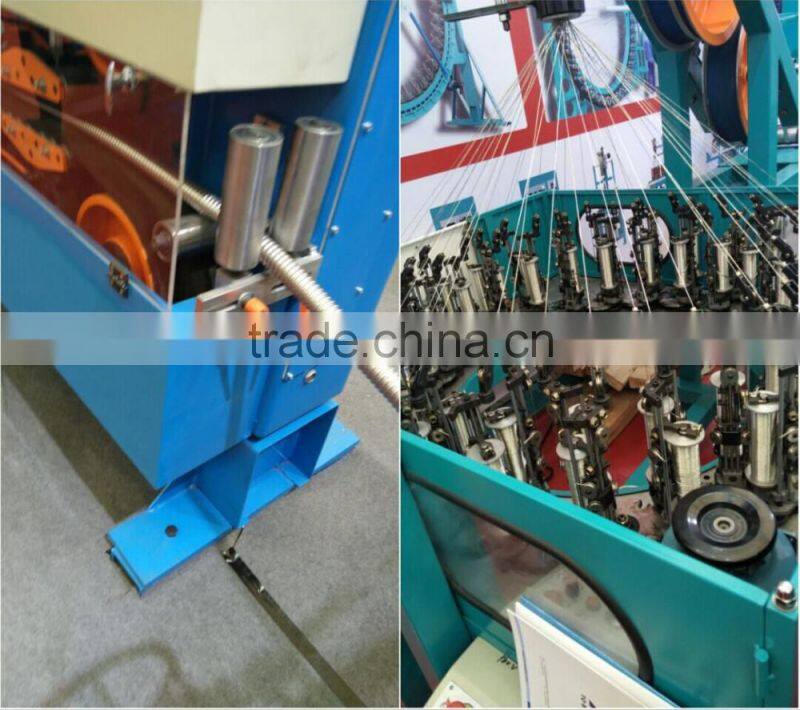

Our equipments:

Our certificates:

Our customers:

Our contact information:

 OEM for customer's label

 Fast delivery

 Perfect after sale service.

Yiteng is specializing in manufacturing for all kinds of cables. It was founded in 1990. And it’s main products includes: XLPE cables from 1KV To 500KV. With over 500 workers, all kinds of advanced equipments (producing, testing), we always keep the best quality for the cables. And with all these advantages, we had covered more than 30 customers from 13 countries in the world. And we will always keep in persist for the quality all the time! We warmly welcome your inquiry and visit our factory at any time.

1. What’s your MOQ?

Usually the MOQ if each kind is 500 meters, but it still depends on different situations from different customers!

2. Do you provide OEM services?

Yes, we do OEM and customize our cables according to your special requests.

3. What’s your delivery time?

Well, it depends, according to different quantities of the cables, the delivery time is from 12 days to 30 days usually.

4. Do you provide free samples for testing?

Yes, we provide free samples, but samples are charged. But the sample and express fees will be deducted from the order which you placed to us!

5.If I want to visit your company some day, is this available?

Surely we warmly welcome your visit for us at any time. It will be our honor and a very good chance for cooperation of both sides.
