Product Details
| Place of Origin | Hebei, China | Brand Name | YITENG | |
| Model Number | YJV YJY YJLV YJLV22 | Insulation Material | XLPE | |
| Type | High Voltage | Application | Industrial | |
| Conductor Material | Copper | Jacket | PVC |
Product Description

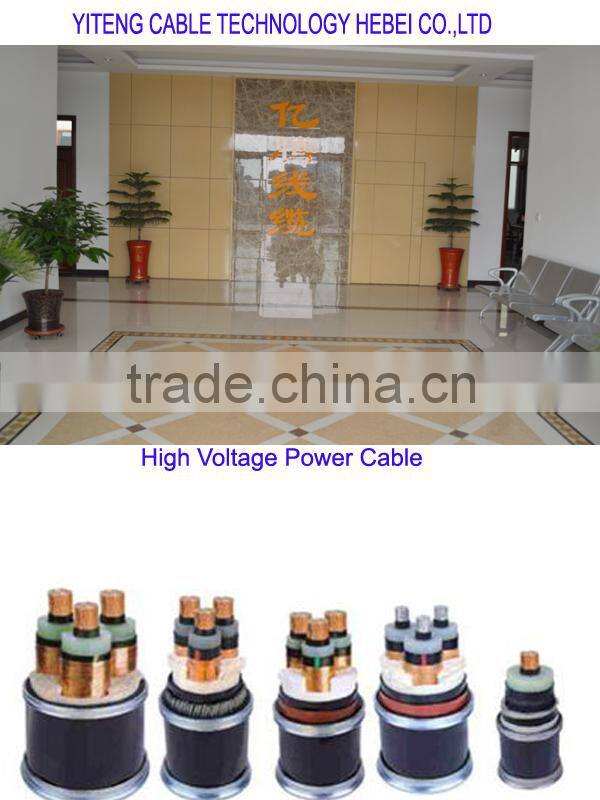

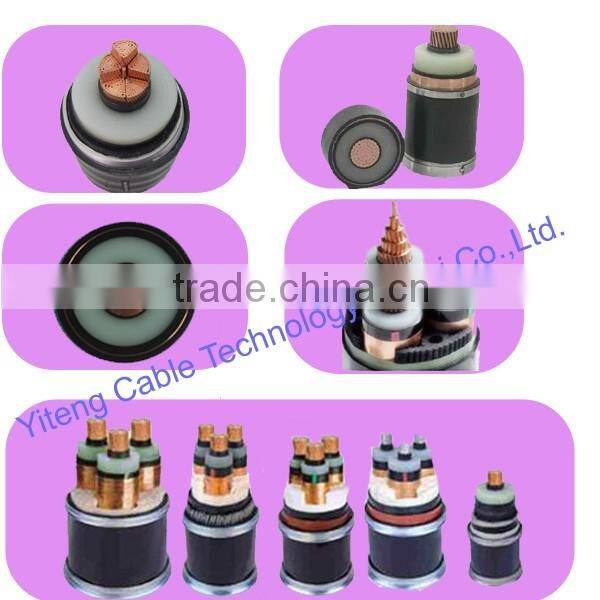

Three core xlpe insulated Cable 3x185mm 3x240mm 3x300mm power cable
Standard:
35kV And Below PVC/XLPE Power Cables is manufacture under GB/T12706-2008 standard (Mainly complying with IEC 60502 standard, also can be produced according to OEM requirements and other standards, such as BS standard, DIN standard, ASTM standard, etc. )
Using features:
Rated voltage: U0/U: 26/35kV (12/20kV), 8.7/15kV (8.7/10kV), 6/10kV (6/6kV), 3.6/6kV, 1.8/3kV
The highest allowed operating temperature of conductor is no more than 250 ° C
The environment temperature should be no lower than 0 ° C when lay. Otherwise it should be preheated.
The cable is laid without horizontal drop limit. The Min. Bending radius of three-core cable should be no smaller than 12 times of cable outer diameter.
Data and Model
Type |
| Name | Application |
Cu | Al |
|
|
YJV | YJLV | XLPE insulated, PVC sheathed power cable | Can be laid in indoor, outdoor, tunnels, cable canals, reinforeced concrete pipelines and loose soil. Cable can not undertake mechanic force, but can undertake certain tractional force. |
YJV22 | YJLV22 | XLPE insulated, steel tape armored and PVC sheathed power cable | Laid underground. Cable can undertake outer mechanic force, but can not undertake large tractional force. |
YJY23 | YJLY23 | XLPE insulated, steel tape armored and PVC sheathed power cable | Laid underground. Cable can undertake outer mechanic force, but can not undertake large tractional force. |
YJV32 | YJLV32 | XLPE insulated, steel wire armored and PVC sheathed power cable | Can be laid in indoor, tunnels and mines. Cable can undertake outer mechanic force and fairly large tractional force. |
YJY | YJLY | XLPE insulated, PE sheathed power cable | Can be laid in indoor, tunnels and piplines. Cables can not undertake outer mechanic force. |
YJVR |
| Soft core, XLPE insulated, PVC sheathed power cable | Can be laid in indoor, tunnels and piplines. Cables can not undertake outer mechanic force and large tractional force. |
Yiteng Cable Technology Hebei Co., Ltd.
Main products:
Bare conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);
Aerial Bundled Cable (ABC Cable);
Power cable,Electrical wire cable,
Armored cables,
Control cables,
Rubber insulated cables, PVC insulated wires and cables,
Battery cables,Instrument cables, Coaxial cables,Flat cables,
Welding cables,House wire,Special Cables etc.
1. We guarantee to offer new advanced goods.
2. We'd like to send skilled personnel to the installing place to help offer technical consultant, quantity estimation and instruction, installing, preliminary testing,and help start up running; and to answer for any defect of the product found in installing and run testing,if there's something wrong with the product, we'll give our answer within 12 hours and get to the spot within 36 hours.
3.After installaton, We'll send skilled personnel to have the preliminary test and answer for any problems emerged. We take the whole charge of the fee needed in repairing,testing or retesting within the scope of our duty required in contract.
4.During the contract's period of validity,of the project must be started all over again or the goods can not be used at all which is resulted from our faulty goods and improper files or mistakes made by our instructors, we'll change the goods at once without compensation and take charge in all expenses of reinstallation.
Notice:we can produce the product according to customer's requirment.Short delivery time and quotation at once.
FAQ:
1.Q: Is your company a manufacturer or a trade company?
A: We are cable manufacturer.
2. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Ningjin City, Hebei,Province, China. You can fly to Shijiazhuang airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: What is your sample policy?
A: Some of our samples are available for free, while others are available at a cost, which will be deducted from the purchase order.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.
5. Q: I am very interested in your product, can you sent me your full catalog and pricing list?
A: We can select some popular products for you immediately. Please let us know your requirements so that we can send out the quotation to you.
