1 SFP 4 Ethernet Fiber Switch
1. Best Solution with good chipset
2. BrandNew module;
3. High-quality metal casing;
4. Good quality of power supply ( working more than 3-4 years);
5. Professional Package;
6. 3 years warranty.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Multistage Cascade Ethernet Media Converter
950SFP series converter is an Ethernet media converter that converts media transmission between UTP Copper cables and fiber SFP (Small Form-Factor Pluggable) transceiver. It is designed to meet the massive needs for Ethernet network deployment and able to extend a copper based network via fiber cable to a maximum distance up to 120km. It can be installed into a Standard Converter Chassis. The installation & operation procedures are simple & straight forward. Operation status can be locally monitored through a set of Diagnostic LED located in the front panel.
Ø Features
- Often used in series or cascade network
- Card-type or Stand-alone type for your choice; suitable for concentration management in 2U Racks
- Broadcasting filtration function, automatic recognizing and modifying address with Store-and-transmission operational mechanism
- Cache size for 512KB, address table size is 4KB
- Ethernet 10base-t or 100Base - TX 100Base - FX fiber media transition
- Supporting IEEE802.3, IEEE802.3U, IEEE802.3X, IEEE 802.3z/AB, IEEE802.1d
- Supporting full duplex flow control or half duplex back-pressure flow control, with auto negotiation function
- Electricity support 1000Mbps,100Mbps, both ends can use different speed (full-duplex work bandwidth for line-speed 2XMbps)
- Provide a link loss diagnosis, electric link and light links diagnosis, dynamic data transmission, full-duplex/half-duplex, speed indicator
- Provide double RJ-45 electrical automatic cross connection, connect switchboard, concentrator
- Optical fiber interface properties is good, good compatibility and high reliability
- Provide complete after-sales service and five years for maintenance services
Ø Situations
Intelligent transportation supervisory system(ITS)
High-speed Way supervisory/Tele-Communication System)
Large corporations, network security monitoring system, multifunction system
Long-distance Muti-media Schooling, Campus monitoring, long-distance broadcast television transmission system
Ø Technical Parameter
Network Media | 10Base-T or 100Base-TX or 1000Base-TX to 1000Base-FX |
Forwarding Mode | Store-And-Forward Architecture |
Ethernet Rate | 10/100M or 10/100/1000M |
Network Protocol | IEEE 802.3,IEEE 802.3u,IEEE 802.3x |
Optical Fiber | Dual fiber or Single fiber |
Optical Distance | 0~120km |
Power Supply | DC5V1A or 5V2A |
Power Consumption | 3.5 w (Input:DC5V 1000mA) |
Lightning Protection | Multi-level protection (3000V) |
Working Environment | 0~70℃ |
Certification | CE,FCC,RoHS, ISO9001 |
Ø System design

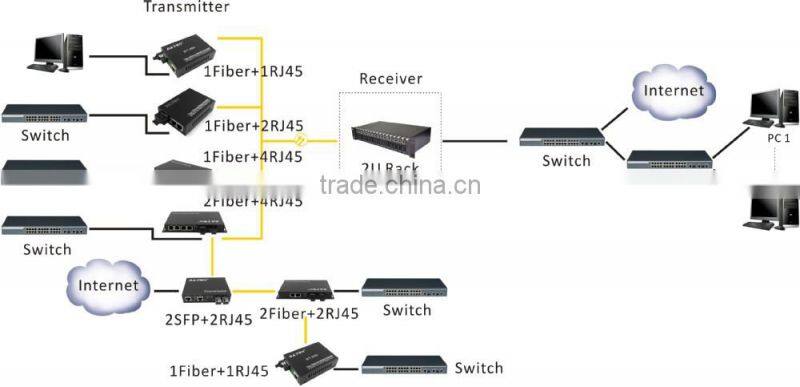

1. For Networking

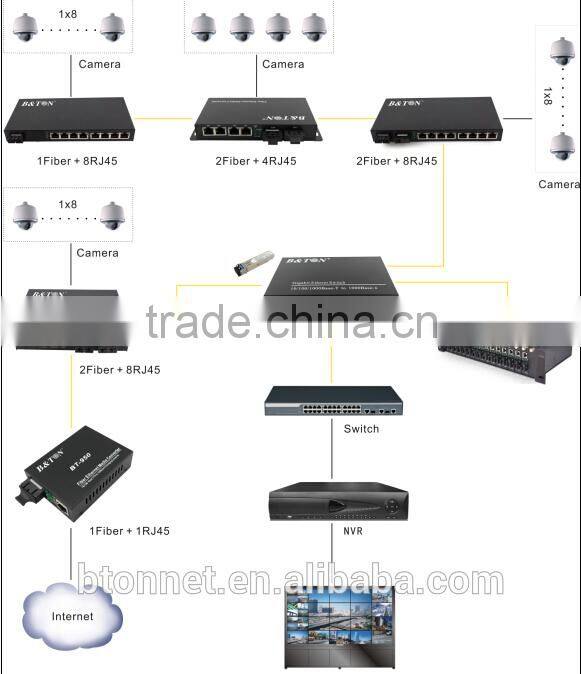

2. For CCTV Surveillance Security

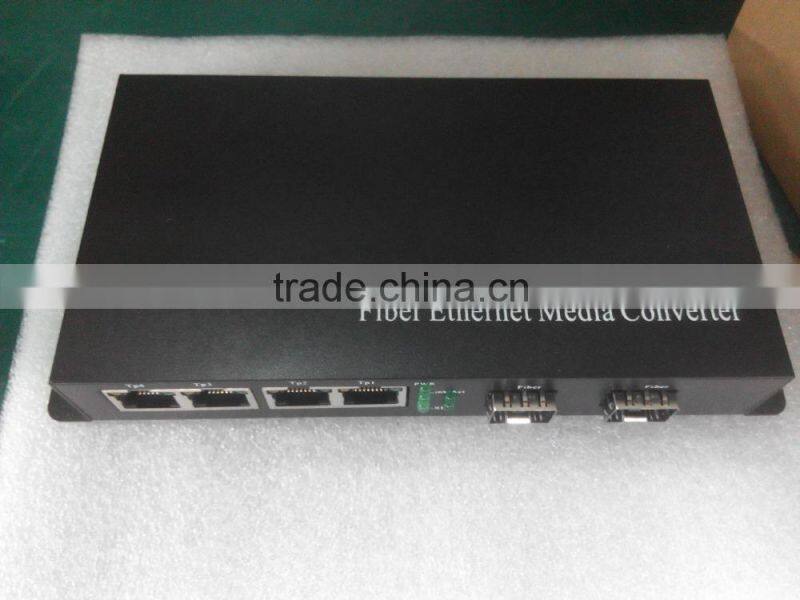

2SFP 4RJ45
| 2SFP 4RJ45
|

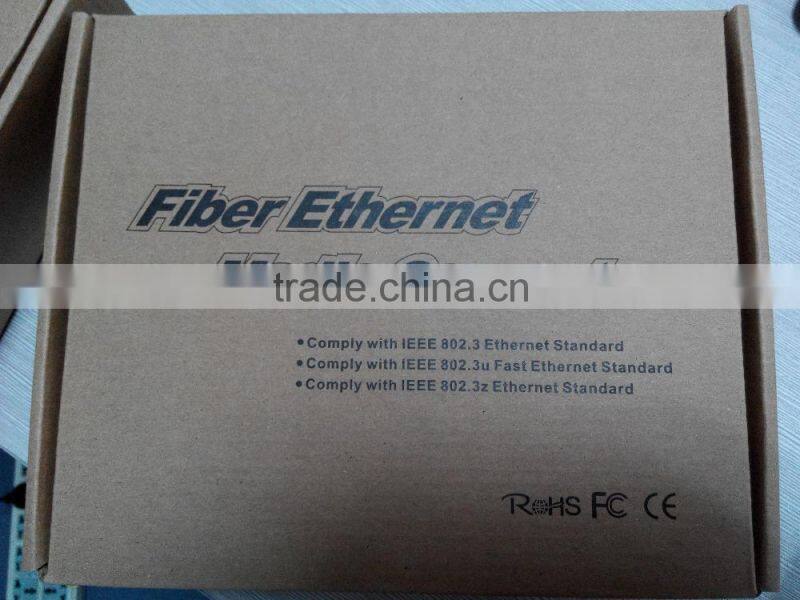

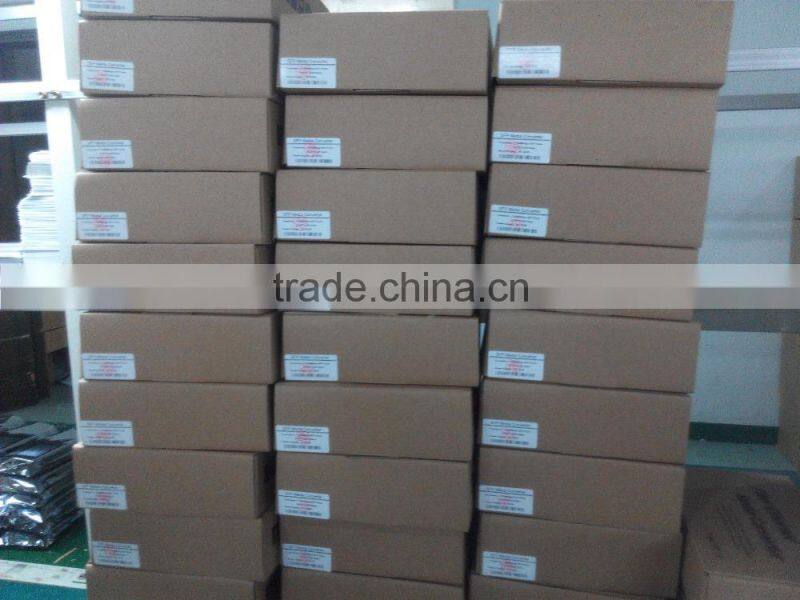

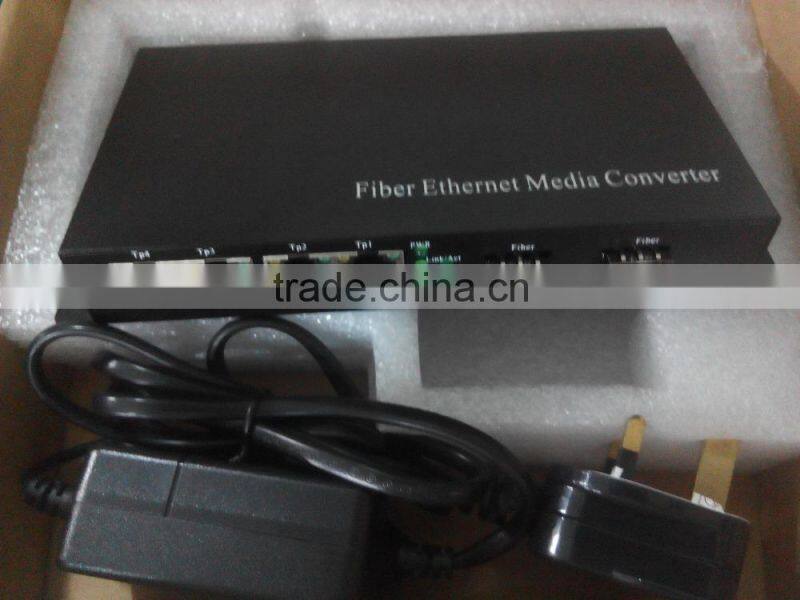

SFP Series Fiber Switch: Package Picture
| |
Shenzhen B&TON Technology Co., Ltd is one of the powerful and high-tech companies specialized in researching, manufacturing and marketing of optical and fiber communication technologies. Our major products are media converter,Fiber Switch, digital video optical transmission systems and Optical Transceiver Modules, Patch cords,.
OEM and ODM
OEM/ODM order is available.
Warranty:
All the Fiber media converter have been through functional test and aging test. We provide 3 years warranty for all the media converter from the date of shipment.
Shipment:
Payment: TT, Western Union, Paypal, LC, Escrew

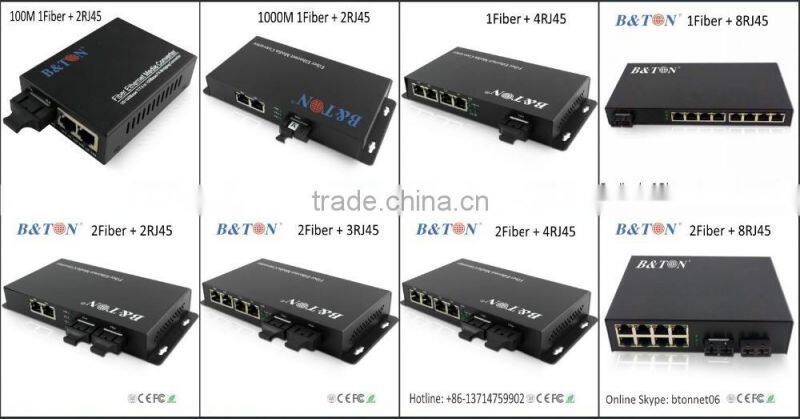

Model | Description |
BT-950SFP-2FE | 100M, 1 SFP Slot + 2 RJ45 Ports |
BT-950SFP-4FE | 100M, 1 SFP Slot + 4 RJ45 Ports |
BT-950SFP-8GE | 1000M, 1 SFP Slot + 8 RJ45 Ports |
BT-952SFP-3FE | 100M, 2 SFP Slots + 3 RJ45 Ports |
BT-950SFP-2GE | 1000M, 1 SFP Slot + 2 RJ45 Ports |
BT-950SFP-4GE | 1000M, 1 SFP Slot + 4 RJ45 Ports |
BT-952SFP-2GE | 1000M, 2 SFP Slots + 2 RJ45 Ports |
BT-952SFP-4GE | 1000M, 2 SFP Slots + 4 RJ45 Ports |
BT-958SFP-GE | 1000M, 8 SFP Slots + 1 RJ45 ports |
BT-952SFP-8GE | 1000M, 2 SFP Slots + 8 RJ45 Ports |
