10/100/1000Mbps RJ45 to SFP Media Converter
1. Best Solution with good chipset
2. BrandNew module;
3. High-quality metal casing;
4. Good quality of power supply ( working more than 3-4 years);
5. Professional Package;
6. 3 years warranty.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
10/100/1000Mbps SFP Media Converter
950SFP series converter is an Ethernet media converter that converts media transmission between UTP Copper cables and fiber SFP (Small Form-Factor Pluggable) transceiver. It is designed to meet the massive needs for Ethernet network deployment and able to extend a copper based network via fiber cable to a maximum distance up to 120km. It can be installed into a Standard Converter Chassis. The installation & operation procedures are simple & straight forward. Operation status can be locally monitored through a set of Diagnostic LED located in the front panel.
Ø Features
- 100Base-TX/FX or 1000Base-T to 1000BASE-SX/LX Converter
- Standard : IEEE802.3 & IEE802.3u, IEEE 802.3z & 802.3ab
- Interface: 1 x RJ-45 connector / 1 x SFP Slot
- Plug-and-Play installation
- Support Jumbo Frame (64-9216 Byte)
- Conversion between different transmission speeds and media types
- Standalone type or card type ,Can be installed into 2U 14/16Slots chassis
- Auto-negotiating Ethernet port (Half/Full Duplex)
- Auto-crossover Ethernet port (Supports Auto MDI/MDI-X)
- Easy Installation, Easy Trouble shooting
- Dimension: 229x122x50mm for packing, 94x70.6x26.5mm for device
Ø Application
- Extend your Ethernet connection up to 0~120km away using fiber optics.
- Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbones.
- Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus).
- Designed to provide high-speed bandwidth for demanding large scale work groups that require expansion of Ethernet Network.
- Bad industrial environment or high requirements for Lightning protection
- Intelligent transportation supervisory system(ITS) and safe city
- High-speed way supervisory/Tele-communication system, IP network camera
- Security surveillance system for large corporations, multifunction network system
- Long-distance multimedia schooling/ campus surveillance, long-distance broadcast television transmission system
Ø System design
1. For Networking
2. For CCTV Surveillance Security

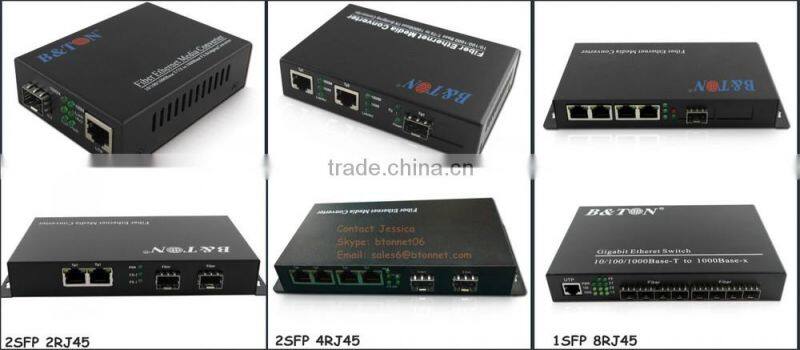

SFP Media Converter
| Back with LFP Function
|
1000Base-LX SFP
| Bidi 1000base SFP
|
Shenzhen B&TON Technology Co., Ltd is one of the powerful and high-tech companies specialized in researching, manufacturing and marketing of optical and fiber communication technologies. Our major products are media converter,Fiber Switch, digital video optical transmission systems and Optical Transceiver Modules, Patch cords,.
OEM and ODM
OEM/ODM order is available.
Warranty:
All the Fiber media converter have been through functional test and aging test. We provide 3 years warranty for all the media converter from the date of shipment.
Shipment:
Payment: TT, Western Union, Paypal, LC, Escrew
Part Number | Description |
BT-950SFP-FE | 10/100M Ethernet to fiber media converter with 1 FE SFP Slot (without SFP transceiver installed inside) |
BT-950SFP-GE | 10/100/1000M Ethernet to fiber media converter with 1 GE SFP Slot (without SFP transceiver installed inside) |
