19inch 8 GE Uplink 8 Pon Port FTTH Fiber Optical GPON EPON ONU OLT Optical Line Terminal Equipment

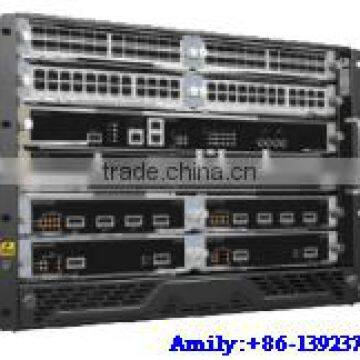

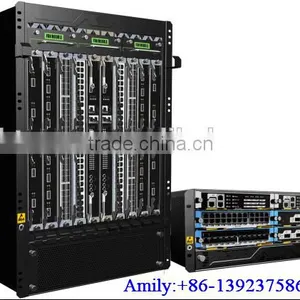

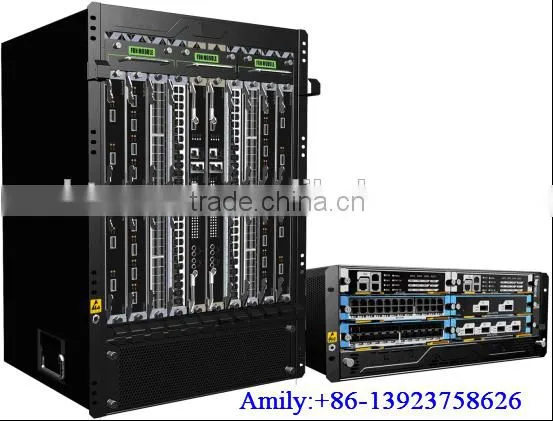

G500T series are designed by BTON for high-density access switching integrated platform which combine multi-service and high-density 10G switching requirement. As the new generation of smart equipments for the telecommunications integrated access network, it could build GPON general platform and have the features of small size, huge capacity, high density and powerful performance, which could supply high quality sustainability solution for Broadband Access, Transmission of Mobile Data Base Station, CPN (Customer Premiss Network ), E-Commerce and so on
OLT
Item |

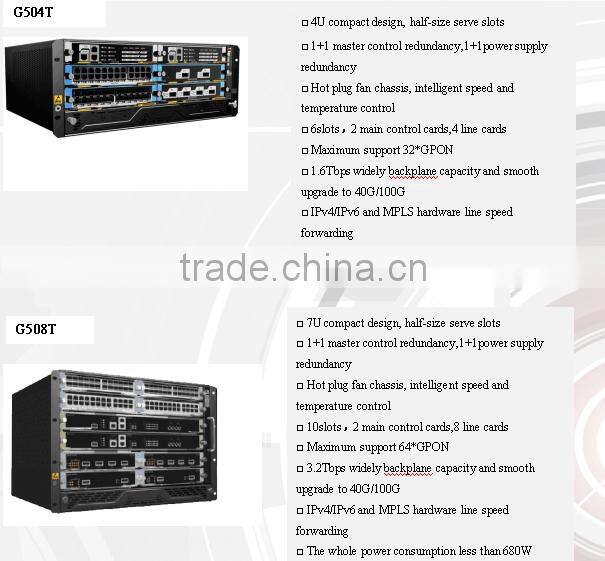

G504T |
G508T |

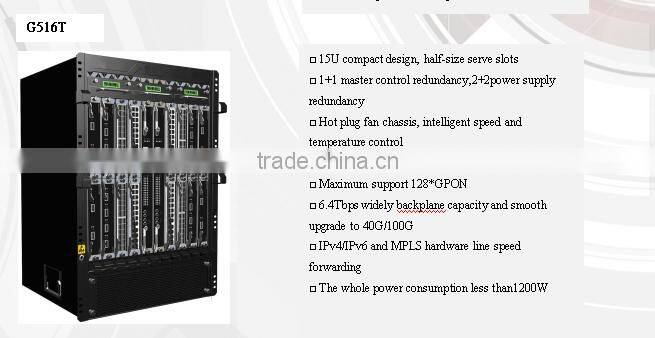

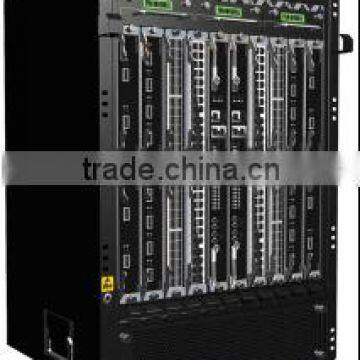

G516T |
|
Backplane capacity |
>1.6Tbps |
>3.2Tbps |
>6.4Tbps |
|
Switching capacity |
960Gbps |
1.6Tbps |
3.2Tbps |
|
Throughput(IPv4/IPv6) |
720Mpps |
1440Mpps |
2860Mpps |
|
Number of slots |
6 |
10 |
18 |
|
Number of service board slots |
4 |
8 |
16 |
|
Service port |
GPON |
32*GPON |
64*GPON |
128*GPON |
SWITCH |
96*GE,48*10GE |
192*GE,96*10GE |
384*GE,192*10GE |
|
Redundancy design |
1+1 power redundancy 1+1 main control redundancy |
1+1 power redundancy 1+1 main control redundancy |
2+2 power redundancy 1+1 main control redundancy |
|
Power supply |
AC:90~260V,50~60Hz; DC:-36V~-72V; |
|||
Power consumption |
≤300W |
≤680W |
≤1200W |
|
|
Outline dimensions (mm) (W*D*H) |
442mm×176mm×420mm |
442mm×310mm×420mm |
442mm×664mm×420mm |
|
Weight (in maximum configuration) |
≤15kg |
≤25kg |
≤45kg |
|
|
Environmental parameter |
Working temperature:0°C~40°C Storage temperature:-40°C~70°C Relative humidity:10%~90%,no condensing |
|||
Attributes |
G500T series |
|
|
PON features
|
GPON |
Satisfy ITU-T standard TR-101 compliant solution for FTTx OLT applications High splitter rate, each PON port supports 128*ONU ,512*T-CONT Maximum transmission distance of 60KM Support uplink FEC, downlink FEC(Forward Error Correction) Periodically update AES encryption ONU identifier authentication :SN/PASSWD/SN+PASSWD Bandwidth allocation mechanism 4 types of T-CONT bandwidth Static Bandwidth Allocation Dynamic Bandwidth Allocation Fiber link inspection 4 types of TYPE A/B/C/D line protection mechanism GPON feature parameter 4096 port-IDs per GPON MAC (Downstream and Upstream) 1024 Allow-IDs per GPON MAC (Upstream) |
L2 features |
MAC |
MAC Black Hole Port MAC Limit MAC address limitation based on ONU |
VLAN |
4K VLAN entries Port-based/MAC-based/IP subnet-based VLAN Port-based QinQ and Selective QinQ (Stack VLAN) VLAN Swap and VLAN Remark and VLAN Translate GVRP Based on ONU service flow VLAN add, delete, replace |
|
Spanning tree protocol |
IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol instances (MSTP) ONU remote loop detecting alarm |
|
Port |
Bi-directional bandwidth control Static link aggregation and LACP(Link Aggregation Control Protocol) Port mirroring and traffic mirroring |
|
Security features |
User security |
Anti-ARP-spoofing Anti-ARP-flooding IP Source Guard create IP+VLAN+MAC+Port binding Port Isolation MAC address binds to port and port MAC address filtration IEEE 802.1x and AAA/Radius authentication TACACS+ authentification dhcp anti-attack flood attack automatic suppression ONU isolation control |
Device security |
Anti-DOS attack(such as ARP,Synflood, Smurf, ICMP attack), ARP detection, worm and Msblaster worm attack SSHv2 Secure Shell SNMP v3 encrypted management Security IP login through Telnet Hierarchical management and password protection of users |
|
Network security |
User-based MAC and ARP traffic examination Restrict ARP traffic of each user and force-out user with abnormal ARP traffic Dynamic ARP table-based binding Supports IP+VLAN+MAC+Port binding L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet Port-based broadcast/multicast suppression and auto-shutdown risk port URPF to prevent IP address counterfeit and attack DHCP Option82 and PPPoE+ upload user’s physical location Plaintext authentication of OSPF,RIPv2 and BGPv4 packets and MD5 cryptograph authentication |
|
IP routing |
IPv4 |
ARP Proxy DHCP Relay DHCP Server Static route RIPv1/v2 OSPFv2 BGPv4 Strategy route Route policy |
IPv6 |
ICMPv6 ICMPv6 redirection DHCPv6 ACLv6 OSPFv3 RIPng BGP4+ Configured Tunnel ISATAP 6to4 tunnel IPv6 and IPv4 Tunnels |
|
Service features |
ACL |
Standard and extended ACL Time Range ACL Packet filter providing filtering based on source/destination MAC address, source/destination IP address, port, protocol, VLAN, VLAN range, MAC address range, or invalid frame. System supports concurrent identification at most 50 service traffic Support packet filtration of L2~L7 even deep to 80 bytes of IP packet head |
QoS |
Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and two-speed tri-color monitor of self-defined flow Priority remark to port or self-defined flow and provide 802.1P, DSCP priority and Remark CAR(Committed Access Rate),Traffic Shaping and flow statistics Packet mirror and redirection of interface and self-defined flow Super queue scheduler based on port and self-defined flow. Each port/ flow supports 8 priority queues and scheduler of SP, WRR and SP+WRR. Congestion avoid mechanism,including Tail-Drop and WRED |
|
Multicast |
IGMPv1/v2/v3 IGMPv1/v2/v3 Snooping IGMP Filter MVR and cross VLAN multicast copy IGMP Fast leave IGMP Proxy PIM-SM/PIM-DM/PIM-SSM PIM-SMv6,PIM-DMv6,PIM-SSMv6 MLDv2/MLDv2 Snooping |
|
MPLS |
L3 MPLS VPN L2 VPN: VLL (Martini, Kompella) MCE MPLS OAM |
|
Reliability |
Loop protection |
EAPS and GERP (recover-time <50ms) Loopback-detection |
Link protection |
FlexLink (recover-time <50ms) RSTP/MSTP (recover-time <1s) LACP (recover-time <10ms) BFD |
|
Device protection |
VRRP host backup Double fault-tolerant backup of host program and configuration files 1+1 main control panel hot backup 1+1 power hot backup Fan redundancy |
|
Maintenance |
Network maintenance |
Telnet-based statistics RFC3176 sFlow LLDP 802.3ah Ethernet OAM RFC 3164 BSD syslog Protocol Ping and Traceroute |
Device management |
Command-line interface(CLI), Console, Telnet and WEB configuration System configuration with SNMPv1/v2/v3 RMON (Remote Monitoring)1/2/3/9 groups of MIB NTP(Network Time Protocol) BTON NGBN View network management |
|
Shenzhen B&TON Technology Co., Ltd is one of the powerful and high-tech companies specialized in researching, manufacturing and marketing of optical and fiber communication technologies. Our major products are media converter,Fiber Switch, digital video optical transmission systems and Optical Transceiver Modules, Patch cords
1. Do you accept OEM, such as: print our LOGO?
Yes, OEM order is welcome, Customized Logo is available.
2. What's the method of Payment?
TT, Western Union, Paypal, LC, Escrew.
100% TT in advance.
30% TT Deposit, 70% balance before shipment.
3. What is the delivery time?
Sample: 2 days
Order: Normal 3~7 days
Mass production: It depends on the quantity and the season when you order. Please contact Jessica to ask the lead time.
4. What's the method of shipment?
The goods will be sent by International express, such as DHL/Fedex. It takes 3~7 days
5. How Can I get a sample to check your quality?
After confirm the price, Please contact the sales(Jessica), she will arrange it for you.
6. How to order?
1) First Please contact the Sales(Jessica) to inquiry the exactly product you need;
2) After confirm the price and quantity, Then Jessica will send you Proforma Invoice(PI);
3) When you receive the PI, please make the payment by TT/Paypal;
4) After we confirm the payment, Jessica will arrange the production;
5) When the goods prepared, Jessica will send it by DHL and send you a tracking No.;
6) Last, you can track the goods on website and receive when it arrived.
7. What's the Warranty?
All the Fiber media converter have been through functional test and aging test. We provide 3 years warranty for all the media converter from the date of shipment.
