Product Details
Place of Origin: | Guangdong, China | Brand Name: | BT | Model Number: | BT-8p-olt-1 |
Product Description

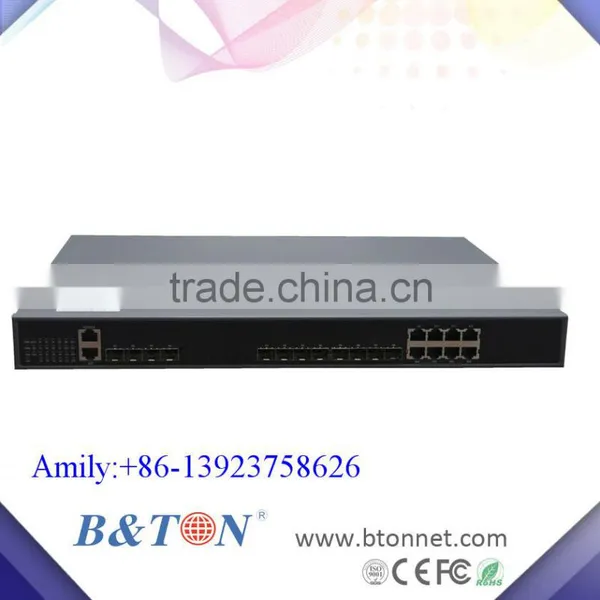

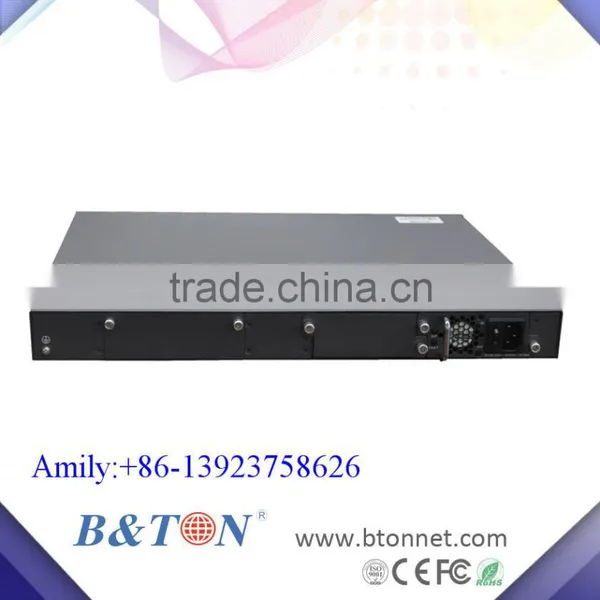

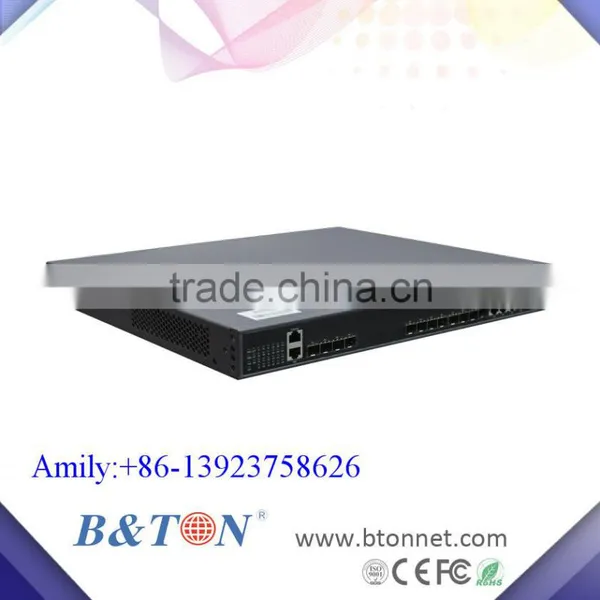

1U 19inch 8 GE Uplink 8 Pon Port FTTH Fiber Optical GPON EPON ONU OLT Optical Line Terminal Equipment
BTON presents the industry's leading GPON solution of 1508GS, which complies with the relevant standards of ITU G.984.x and FSAN. FD1508GS is 1U Rack mount equipment, 8pon ports, 8 GE uplink optic ports, 8 GE uplink electric ports. The maximum optical coupling ratio of 1:128, up to 1024 GPON ONTs. The down link band width is 2.5Gbps and uplink bandwidth is 1.25Gbps. The product is in compact design and convenient for flexible using, easy to deploy with high performance. It can meet the requirements of equipment performance and compact volume of the room environment. It can also satisfy the requirements of the access network and enterprise network that enhancing the network function, improving the reliability and reducing power consumption. The product is suitable for the "triple play" service, the resident of optical access network, video surveillance network, enterprise network and the Internet of the network applications
Comply with ITU-T G.984/G.988 standards and China's Telecom industry GPON standards
Support OMCI remote management of ONT/ONU, compatible with ITU-984.4 OMCI protocol
Standalone 1U 8PON compact design of OLT products
OLT is with powerful layer 2 switching capacity and complete layer 2 protocol. Supporting with the exchange, isolation and One By One working mode. Supporting port aggregation, VLAN, port speed, queue technology, flow control technology and ACL rich two layer function. Offering the technical support for the development of the multi-service fusion.
Item | 4 PON Ports OLT | 8 PON Ports OLT | ||
Chassis | Rack | 1U 19 inch standard box | 1U 19 inch standard box | |
Slots | NA | NA | ||
Uplink Port | QTY | 8 | 16 | |
Copper | 10/100/1000M auto-negotiable,RJ45:8pcs | 10/100/1000M auto-negotiable,RJ45:8pcs | ||
SFP | 4 SFP slots(Combo) | 8 SFP slots(Combo) | ||
PON Port | QTY | 4 | 8 | |
Physical Interface | SFP Slots | SFP Slots | ||
Connector Type | 1000BASE-PX20 | 1000BASE-PX20 | ||
Max splitting ratio | 1:64 | 1:64 | ||
Management Ports | 1*100BASE-TX outband port 1 CONSOLE port | |||
PON Port Specification (Apply to C-Data Pon module) | Transmission Distance | 20KM | ||
PON port speed | Symmetrical 1.25Gbps | |||
Wavelength | 1490nm TX,1310nm RX | |||
Connector | SC/PC | |||
Fiber Type | 9/125μm SMF | |||
TX Power | +2~+7dBm | |||
Rx Sensitivity | -27dBm | |||
Saturtion Optical Powr | -6dBm | |||
Management Mode | SNMP, Telnet, and CLI management mode. | |||
Management Function | Fan Group Detecting Port Status monitoring and configuration management; Layer-2 switch configuration such as Vlan, Trunk ,RSTP,IGMP ,QOS, etc; EPON management function: DBA ,ONU authorization, ACL ,QOS ,etc; Online ONU configuration and management User management Alarm management | |||
Layer-two Switch | Support port VLan and protocol Vlan Support Vlan tag/Untag ,vlan transparent transmission; Support 4096 VLAN Support 802.3dd trunk RSTP QOS based on port ,VID,TOS and MAC address IGMP Snooping 802.x flow control Port stability statistic and mornitoring |
Shenzhen B&TON Technology Co., Ltd is one of the powerful and high-tech companies specialized in researching, manufacturing and marketing of optical and fiber communication technologies. Our major products are media converter,Fiber Switch, digital video optical transmission systems and Optical Transceiver Modules, Patch cords
1. Do you accept OEM, such as: print our LOGO?
Yes, OEM order is welcome, Customized Logo is available.
2. What's the method of Payment?
TT, Western Union, Paypal, LC, Escrew.
100% TT in advance.
30% TT Deposit, 70% balance before shipment.
3. What is the delivery time?
Sample: 2 days
Order: Normal 3~7 days
Mass production: It depends on the quantity and the season when you order. Please contact Jessica to ask the lead time.
4. What's the method of shipment?
The goods will be sent by International express, such as DHL/Fedex. It takes 3~7 days
5. How Can I get a sample to check your quality?
After confirm the price, Please contact the sales(Jessica), she will arrange it for you.
6. How to order?
1) First Please contact the Sales(Jessica) to inquiry the exactly product you need;
2) After confirm the price and quantity, Then Jessica will send you Proforma Invoice(PI);
3) When you receive the PI, please make the payment by TT/Paypal;
4) After we confirm the payment, Jessica will arrange the production;
5) When the goods prepared, Jessica will send it by DHL and send you a tracking No.;
6) Last, you can track the goods on website and receive when it arrived.
7. What's the Warranty?
All the Fiber media converter have been through functional test and aging test. We provide 3 years warranty for all the media converter from the date of shipment.
