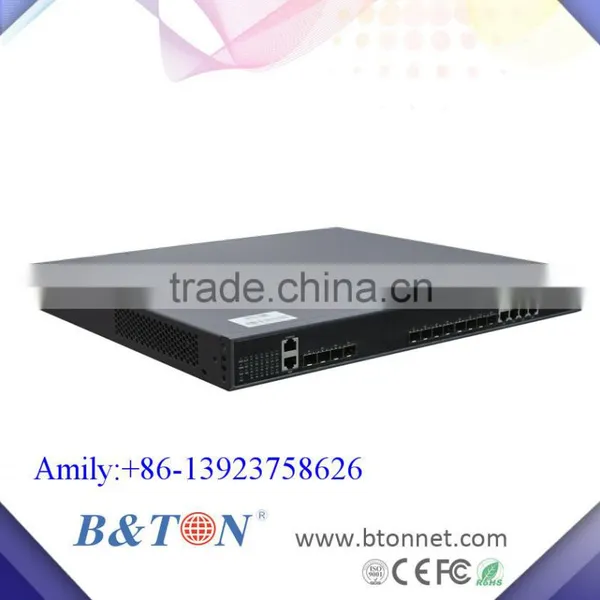

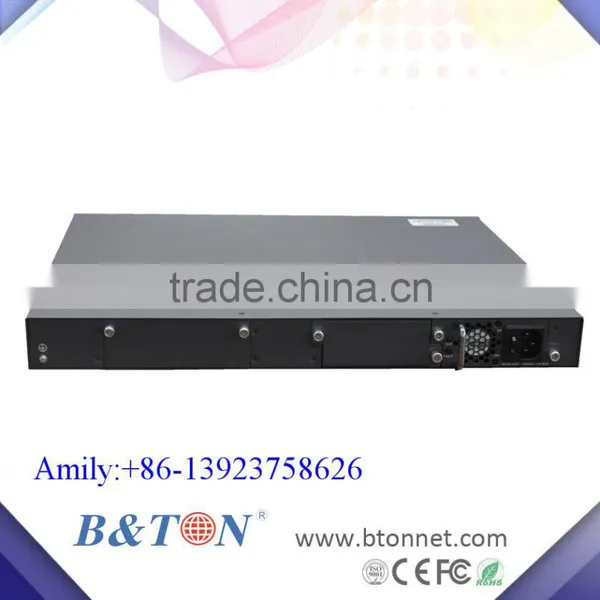

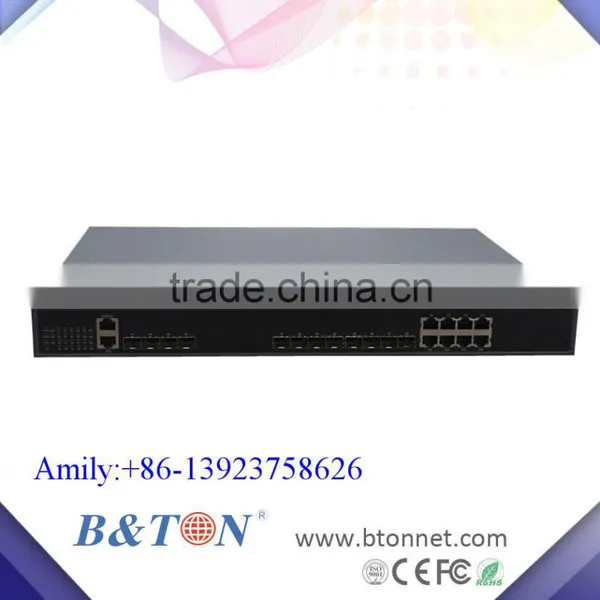

1U FTTH 4GE RJ45 Uplink FTTH/ FTTB 4 PON PORT GPON/GEPON OLT System
OLT provides 4 downstream GPON ports, 8 uplink GE optical port and 8 GE electrical ports, with an expansion slot, which can access 2 10GE SFP+ ports. The 1U height can be easy installed and maintained to save space. The OP4500-08P adopts the industrial advanced technology, with powerful Ethernet services and QoS feature, supporting SLA and DBA. The splitting ratio up to 1:128, supporting different types of ONU in different networks, minimizing operators' investments
4PON Ports 1U Pizza-Box OLT provides 4GE(copper) and 4SFP slots Combo interface for uplink, and 4 EPON ports for downstream. It can support 256 ONU under 1:64 splitter ratio
Item |
4 PON Ports OLT |
8 PON Ports OLT |
||
Chassis |
Rack |
1U 19 inch standard box |
1U 19 inch standard box |
|
Slots |
NA |
NA |
||
Uplink Port |
QTY |
8 |
16 |
|
Copper |
10/100/1000M auto-negotiable,RJ45:8pcs |
10/100/1000M auto-negotiable,RJ45:8pcs |
||
SFP |
4 SFP slots(Combo) |
8 SFP slots(Combo) |
||
PON Port |
QTY |
4 |
8 |
|
Physical Interface |
SFP Slots |
SFP Slots |
||
Connector Type |
1000BASE-PX20 |
1000BASE-PX20 |
||
Max splitting ratio |
1:64 |
1:64 |
||
Management Ports |
1*100BASE-TX outband port 1 CONSOLE port |
|||
|
PON Port Specification (Apply to C-Data Pon module) |
Transmission Distance |
20KM |
||
PON port speed |
Symmetrical 1.25Gbps |
|||
Wavelength |
1490nm TX,1310nm RX |
|||
Connector |
SC/PC |
|||
Fiber Type |
9/125μm SMF |
|||
TX Power |
+2~+7dBm |
|||
Rx Sensitivity |
-27dBm |
|||
Saturtion Optical Powr |
-6dBm |
|||
Management Mode |
SNMP, Telnet, and CLI management mode. |
|||
Management Function |
Fan Group Detecting Port Status monitoring and configuration management; Layer-2 switch configuration such as Vlan, Trunk ,RSTP,IGMP ,QOS, etc; EPON management function: DBA ,ONU authorization, ACL ,QOS ,etc; Online ONU configuration and management User management Alarm management |
|||
Layer-two Switch |
Support port VLan and protocol Vlan Support Vlan tag/Untag ,vlan transparent transmission; Support 4096 VLAN Support 802.3dd trunk RSTP QOS based on port ,VID,TOS and MAC address IGMP Snooping 802.x flow control Port stability statistic and mornitoring |
|||
Yes, OEM order is welcome, Customized Logo is available.
2. What's the method of Payment?
TT, Western Union, Paypal, LC, Escrew.
100% TT in advance.
30% TT Deposit, 70% balance before shipment.
3. What is the delivery time?
Sample: 2 days
Order: Normal 3~7 days
Mass production: It depends on the quantity and the season when you order. Please contact Jessica to ask the lead time.
4. What's the method of shipment?
The goods will be sent by International express, such as DHL/Fedex. It takes 3~7 days
5. How Can I get a sample to check your quality?
After confirm the price, Please contact the sales(Jessica), she will arrange it for you.
6. How to order?
1) First Please contact the Sales(Jessica) to inquiry the exactly product you need;
2) After confirm the price and quantity, Then Jessica will send you Proforma Invoice(PI);
3) When you receive the PI, please make the payment by TT/Paypal;
4) After we confirm the payment, Jessica will arrange the production;
5) When the goods prepared, Jessica will send it by DHL and send you a tracking No.;
6) Last, you can track the goods on website and receive when it arrived.
7. What's the Warranty?
All the Fiber media converter have been through functional test and aging test. We provide 3 years warranty for all the media converter from the date of shipment.
