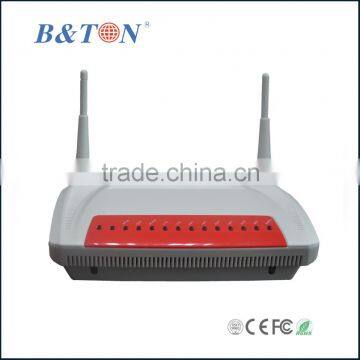

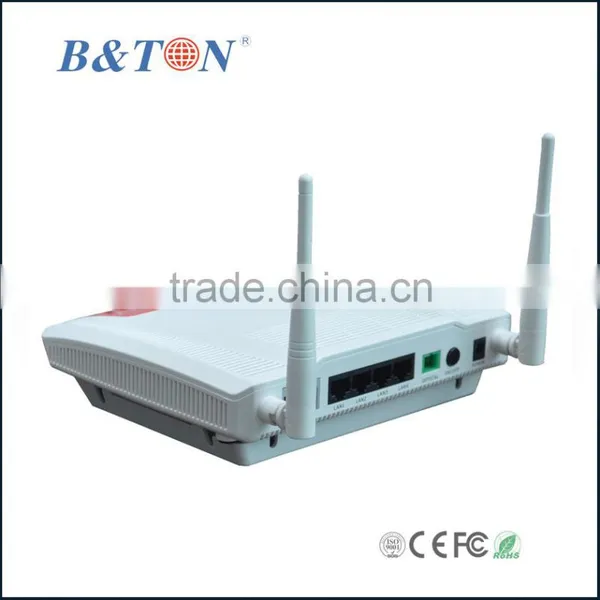

4GE+2POTS+WIFI+CATV GEPON ONTEquipment GPON ONU ONT

4GE+2POTS+WIFI+CATV GEPON ONTEquipment GPON ONU ONT

1. Auto-negotiation and MDI/MDIX auto-sensing
2. Built-in layer-2 switch
3. Advanced data features such as VLAN tag manipulation, classification, and filtering
4. Built-in layer-3 routing and residential gateway
5. 802.11 b/g/n WLAN interface
6. USB 2.0 storage



   Power Supply


   • +12V (feed via external AC/DC adapter)
   • 8-PIN power input with UPS monitoring and 2-PIN power adaptor input
   • Dying Gasp support
   • Power switch
   • Power Consumption: less than 13.34W

   Working Environment


   • Temperature: 0℃ ~ 40℃
   • Humidity: 5% ~ 95% relative humidity

   Safety & EMI


   • CE certificate
   • FCC/UL compliant

   Installation


   • Desktop mounting & wall mounting

   GPON Interface


   • Compliant with ITU-T G.984 GPON standards
   • SFF type laser, SC/APC connector
   • 1.244 Gbps Burst Mode Upstream Transmitter
   • 2.488 Gbps Downstream Receiver
   • Compliant with ITU-T G.984.2 Amd1, Class B+
     • 0.5dBm ~+5dBm launch power, -27dBm sensitivity, and -8dBm overload
   • Wavelengths:
     • US 1310nm, DS 1490nm
   • Laser compliant with FCC 47 CFR Part 15, Class B, and FDA 21 CFR 1040.10 and 1040.11, Class I, ONT support Class C or Class C+ optics as an option
   • Support G.984.5 Blocking Filter as an option
   • Multiple T-CONTs per device
   • Multiple GEM Ports per device
   • Flexible mapping between GEM Ports and T-CONT
   • Activation with automatic discovered SN and password in conformance with ITU-T G.984.3
   • AES-128 Decryption with key generation and switching
   • FEC (Forward Error Correction) in both directions
   • DBA reporting by piggyback reports in the DBRu (mode 0 and mode 1)
   • 802.1p mapper service profile on U/S
   • Mapping of GEM Ports into a T-CONT with priority queues based scheduling
   • Support Multicast GEM port and incidental broadcast GEM port.

   Ethernet Interface


   • 10/100/1000 Base-T interface with RJ-45 connectors
   • Ethernet port auto negotiation or manual configuration
   • MDI/MDIX automatically sense
   • Hardware priority queues on the downstream direction in support of CoS
   • 802.1D bridging
   • Virtual switch based on 802.1q VLAN
   • VLAN tagging/detagging per Ethernet port
   • VLAN stacking (Q-in-Q) and VLAN Translation
   • IP ToS/DSCP to 802.1p mapping
   • Class of Service based on UNI, VLAN-ID, 802.1p bit, ToS/DSCP
   • Marking/remarking of 802.1p
   • IGMP v2/v3 snooping
   • Broadcast/Multicast rate limiting

   Gateway Features


   • Multiple WAN interfaces supporting
   • WAN connection
     • Point-to-Point Protocol over Ethernet (PPPoE)
     • Dynamic Host Configuration Protocol (DHCP)
     • Static
   • DHCP server for LAN devices
   • DNS relay
   • Network Address Translation (NAT) / Network Address Port Translation (NAPT)
   • Port forwarding
   • Static routing
   • Traffic classification and QoS based on Layer 3 and Layer 4 Identifier
   • Access Control List (ACL)
   • VPN Pass thru for Point to Point Tunneling Protocol (PPTP),  Layer 2 Tunneling Protocol (L2TP) and IP Security Protocol (IPSec)
   • Firewall
   • Application Layer Gateway (ALG)
   • Demilitarized Zone (DMZ)
   • Dynamic Domain Name Server (DDNS)
   • Network Time Protocol (NTP)
   • Universal Plug and Play (uPnP)
   • IGMP proxy
   • IPv6
     • Stateless Address Autoconfiguration (SLAAC)
     • DHCPv6
     • PPPoEv6
     • DNSv6

   WLAN Interface


   • Compliant with IEEE 802.11 b/g/n
   • 2.4GHz
   • MIMO:2x2
   • Multiple SSIDs
   • 64 and 128 bit Wireless Encryption Protocol (WEP) support
   • Wireless Protected Access support including Pre Shared Key (WPA-PSK)
   • Radio switched on/off function Support WPS

   POTS Interface


   • RJ-11 connectors
   • 3-REN
   • Balanced Ring, 55V RMS
   • DTMF Dialing and Pulse Dialing
   • Multiple Codecs:
     • G.711 (μ-law and A-law)
     • G.729 (A and B)
     • G.723.1
   • Echo Cancellation
   • Voice Activity Detection and Comfortable Noise Insertion
   • SIP (RFC3261)
   • MEGACO v2 (H.248)
   • SDP (RFC2327)
   • RTP (RFC3550/3551)
   • DTMF encoding by RFC 2833 or SIP INFO method
   • Support various CLASS services - Caller ID, Call Waiting, Call Forwarding, Call Transfer, Call Toggle, Three Way Calling, Distinctive Ringing, etc.
   • G.711 for FAX, modem connection
   • T.38 FAX
   • Configurable dial plan
   • Country specific ring tone generation
   • DHCP Client or static IP configuration
   • Metallic Loop Testing

   Analog Video Interface


   • Standard F-Type connector
   • Analog RF video over dedicated 1550nm wavelength
   • RF output level of +18 dBmV
   • RF Passband: 54 MHz~870 MHz
   • Optionally remote band control function:
     • Basic services: 54MHz - 435MHz
     • Premium services: 465MHz - 870MHz, pass or block, software provisionable
   • Switched on/off by remote control

   USB Interface


   • 1 USB Host interface
   • Compliant to USB 2.0
   • Network storage
