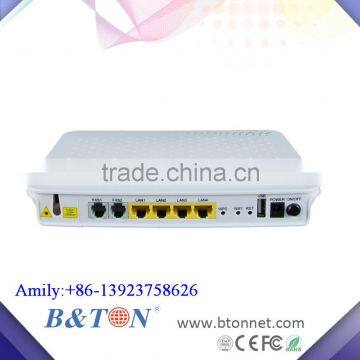

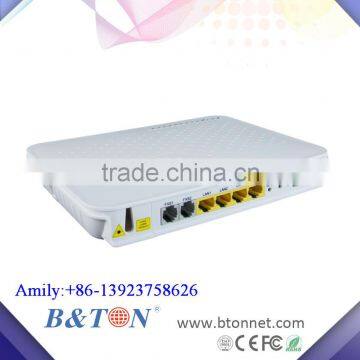

GEPON GPON FTTX 1GE+ 3FE +2POTS + WIFI ONT compatiable with ZTE/Huawei
1 GPON port (uplink 1.25Gbps, downlink 2.5Gbps)
1 10/100/1000M ports
3 10/100M ports
2 POTS ports
1 wlan port

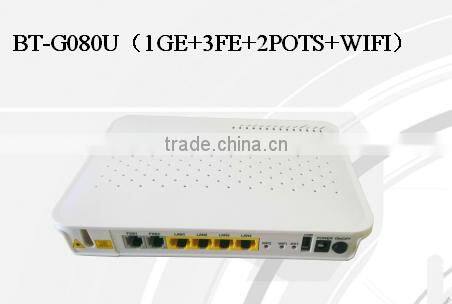

BT-G080U(1GE+3FE+2POTS+WIFI)is an EPON user terminal,which meets the SOHO broadband access ,FTTH broadband speed ,FFTH/FTTD of cable-television operator.The equipment based on mature, stable, cost-effective Gigabit EPON technology combines Gigabit Ethernet switching technology, WIFI and high-quality VoIP technology. It has high reliability, ease of administration and good QOS. The technology performance meets the IEEE802.3ah, China Telecom EPON equipment technical requirements (V2.1) specification requirements
1.1,Data service function
Full speed without blocking exchange
8K MAC address table
Support Full Range VLAN ID
Support QinQ VLAN,1:1VLAN,VLAN Trunk etc.
support port monitor, port mirror ,port speed limit ,port SLA etc.
QoS based on interface,IEEE 802.1p,IPV4(ToS),Diff-Serv,IPV6,802.1Q VLANID,destination MAC or source MAC.
The Ethernet interfaces according to the specifications of the IEEE802.3.
128-bit AES encryption algorithm.
According to 802.1x remote management and user authentication
1.2,Telephone service function
Support SIP protocol,H.248 protocol,H.323 optional.
Support ITU-T G.711,G.723.1,G.729 compression algorithm
Echo cancellation meets ITU-T G.168-2002. echo cancellation for the longest is 128ms.
Support OSPF,T38.
Support RFC2833 and RFC2833 redundant,distinctive ringing ,MD5 certificate,call forwarding,call waiting,telephone hotline,alarm clock,abbreviated dialing and etc.
Support two POTS interface three-way calling,three-way calling support local mixing.
Support POTS GR909 line test function.
Support dynamic PPPoE,dhcp and static IP.
Support CTC2.1 standard
7×24h call lose≤0.01%
2,Product specifications
Item |
Parameter |
specification |
Optical interface specification |
Transmission rate |
Downstream:1.25 Gbps Upstream:1.25 Gbps |
Optical specifications |
Downstream Wavelength:1490nm+/-20nm Minimum receiver sensitivity:-27dBm Receive saturation power:-3dBm Upstream Wavelength:1310nm+/-50nm Minimum output optical power:0dBm |
|
Number of users can be connected |
Up to 32 users within 20km. |
|
E8080U connector |
SC/PC |
|
Optical physical conditions |
IEEE802.3-2005 1000 BASE-PX20+ |
|
Optical fiber |
G.652 single-mode fiber |
|
Ethernet interface specification |
standard |
IEEE802.3 IEEE802.3au IEEE802.3x |
Port number |
4 FE |
|
Connector type |
RJ-45 |
|
LAN |
IEEE 802.3 10/100BASE-T, Automated negotiation Full duplex/Half duplex Support RJ-45 MDI/MDIX |
|
VLAN |
IEEE802.1q |
|
Support the connection distance |
Up to 100 meters |
|
WLAN specification |
WLAN |
Compliant with IEEE802.11b/g/n |
EMC and safety |
EMC |
EN55022 B(CISPR 22B) |
ESD defend and preserve |
IEC 61000-4-2 GR-1089-CORE |
|
Laser eye safety |
FDA 21CFR 1040.10 & 1040.11 EN(IEC) 60825-1 EN(IEC) 60825-2 |
|
Environment-protection standard |
RoHS |
|
Environmental requirements |
Running temperature |
-10ºC~55ºC |
Storage temperature |
-30ºC~60ºC |
|
Operating humidity |
10%~90% ,on-condensing |
|
Storage humidity |
5%~95% ,Non-condensing |
|
Physical specifications |
Size |
L x W x H:245 mm x 150 mm x 37mm |
Weight |
<500g |
If you have interest, Call me for the price! Or add online skype: Sophinesnow2005
