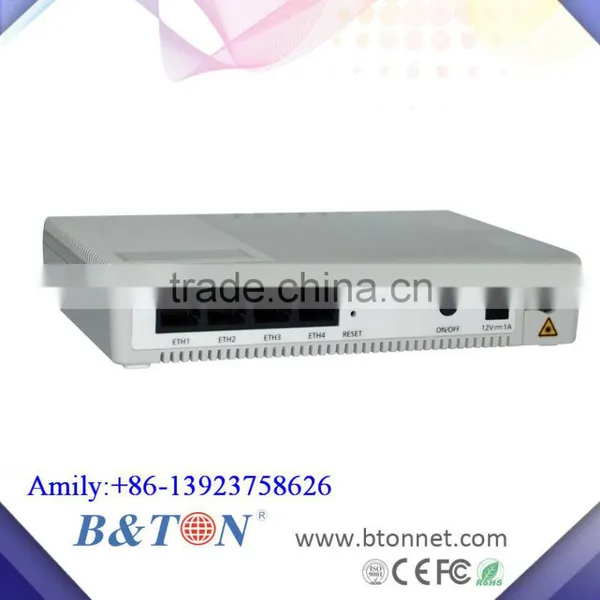

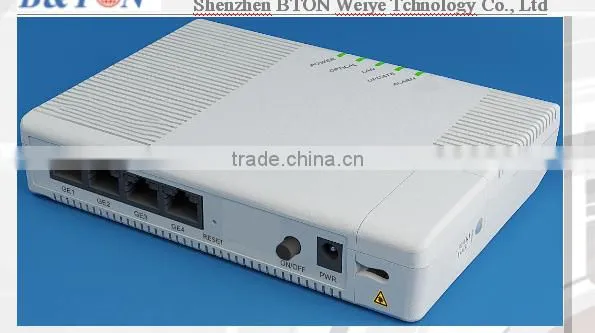

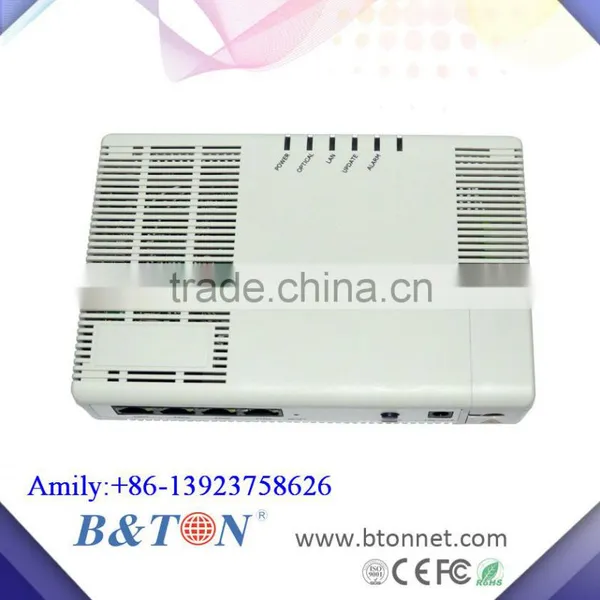

4GE Port Ethernet FTTH GEPON GPON ONU/ONT/SFU Compatible with Huawei/ZTE OLT
1.4 10/100/1000M Ports
2.1 Pon
As the terminal, BT-G004U is employed in the GPON network through optical splitter. Under the topology of maximum 32 optical link paths, the distance between terminal and local side can reach 20 kilometers. It can be placed at home, as well as applied in the Net bars, small offices, or the other places which demand Broadband access
BT-G004U configures downlink port rate of 2.5G and uplink port rate of 1.25G, conform to ITU-T G.984 standard, which can provide comprehensive Triple Play services, including voice, video(IPTV or VoD) and high-speed Internet access service.
BT-G004U provides management channel that satisfies standard OMCI’s definition. It can achieve remote management, and support all series FCAPS’s monitoring and maintenance function.
Attribute |
BT-G004U |
Hardware interface |
4* RJ-45 Ethernet port (10/100/1000Base-T auto-sensing) Auto-negotiation or manual configuration of Ethernet port MDI/MDIX automatic detection functionality Priority queue of uplink or downlink based on hardware supports COS |
Power |
+12V(supplied by external AC/DC power adapter) 2-PIN power inverter input Support Dying Gasp Power switch |
Power consumption |
<4.8W |
Dimension |
172mm x125mm x34mm (W x D x H) |
Weight |
0.28kg |
Environment parameter |
Temperature: 0℃~ 40℃ Humidity: 5% ~ 95% relative humidity |
Business |
Realization |
GPON features |
Conform to ITU-T G.984 GPON standard GPON Encapsulated Mode(GEM) DBA(Dynamic Bandwidth Assignment) 40 T-CONT and 256* GEM Port Class B+ optical power budget Mapping from port-based VLAN to GEM port FEC(Forward Error Correction) Embedded OAM(Operations,Administration and Maintenance),PLOAM(Physical Layer OAM), OMCI Downlink 128bits AES(Advanced Encryption Standard)encryption Power-down alarm |
VLAN |
Port-based VLAN and IEEE 802.1Q VLAN Full range of VID and PVID Configure tag properties based on port+ VLAN |
Broadcasting storm suppression |
Configure qty of broadcasting packet |
STP |
IEEE 802.1d/1s/1w STP (Spanning Tree Protocol) |
Port aggregation |
Support |
Bandwidth control |
64K to100M,receive and dispatch separately controlled |
Mirroring |
Port mirroring |
QoS |
Port-based /802.1p/IP-TOS priority 4-level priority control |
Upgrade |
Xmodem, TFTP upgrade |
Management |
Telnet remote configuration SNMP management WEB management |
Security features |
Centralized authentication of administrators’ user password Port lock,limited MAC address amount of every port Support 802.1x |
Maintenance |
Debugging information output PING System log |
If you have interest, Call me for the price! Or add online skype: Sophinesnow2005
