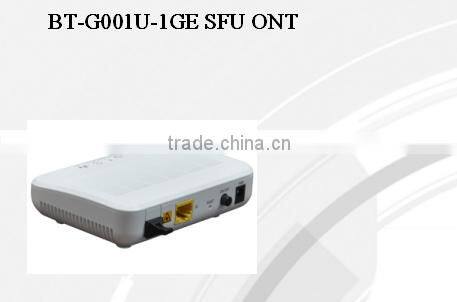

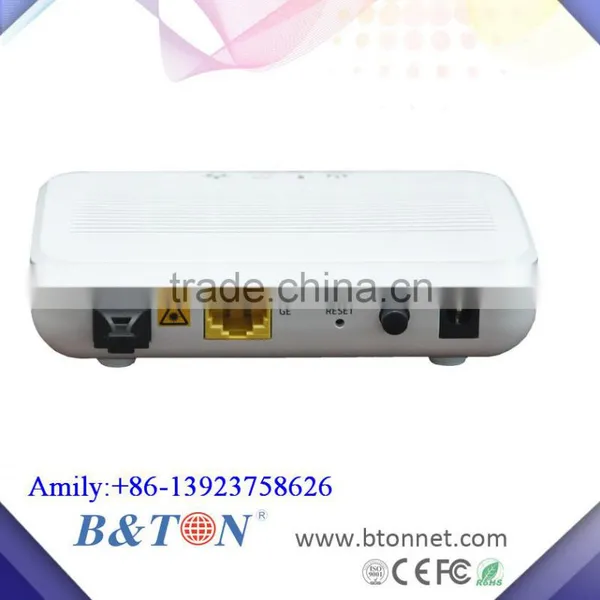

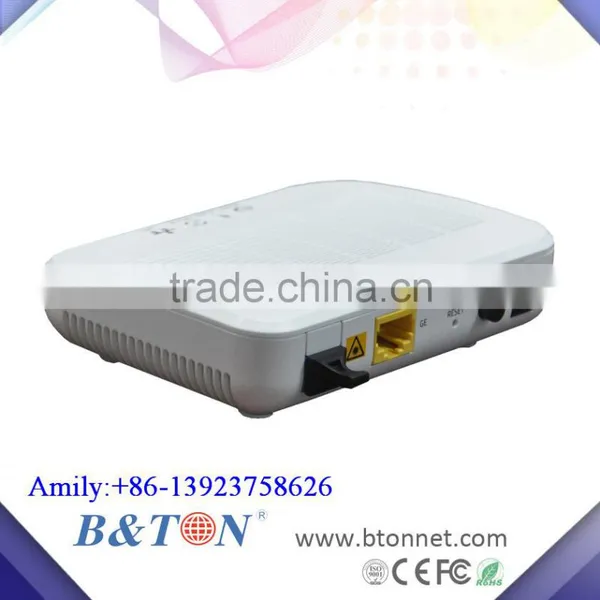

GPON Terminal ONU Fiber Modem 1GE ONT FTTH Fiber to the Home SFU GPON

G010U-K is GPON ONT designed for fulfilling FTTH ultra-broadband access request of home and SOHO users. It is based on the stable and mature GPON technology, which has high performance/price ratio, and the technology of layer 2 Ethernet switch as well. It is highly reliable and easy to maintain, with guaranteed QoS, and fully compliant to ITU-T G.984 GPON standards.

Conform to IEEE802.3ah standard and meet CTC V2.1 technical requirements
Support Ethernet service layer 2 switching and wire-speed forwarding of uplink and downlink services
Support frame filtering and suppression
Support standard 802.1Q Vlan function, support VLAN conversion
Support 4094 VLANs (802.1Q)
Support Dynamic Bandwidth Allocation (DBA) function
Support QoS, including traffic flow classification, priority marking, queue and dispatch, traffic shaping and traffic control, etc
Single ONU supports up to 8 LLID.
Support IGMP Snooping
Support Ethernet port ratelimit loop detection
Support power failure alarm
Support lightning protection for power supply and lightning protection for service port
Port features:
1 PON ports (1.25G)
24 10/100M port
Physical features:
Physical dimension: 440*207*43.6 (L×W×H, unit: mm)
Power supply:100-240VAC
Power consumption: 22W
Temperature:
Working temperature:-10~55℃
Storage temperature: -30~60℃
Relative humidity: 10~90% (non-condensing)
