4GE + 2POTS + CATV + WiFi FTTH Fiber optical 1 GE uplink port GPON ONU/GPON SFU/GPON ONT
1 GPON port (uplink 1.25Gbps, downlink 2.5Gbps)
4 10/100/1000M ports
2 POTS ports
1 wlan port

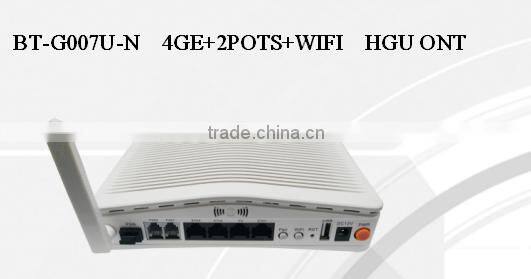

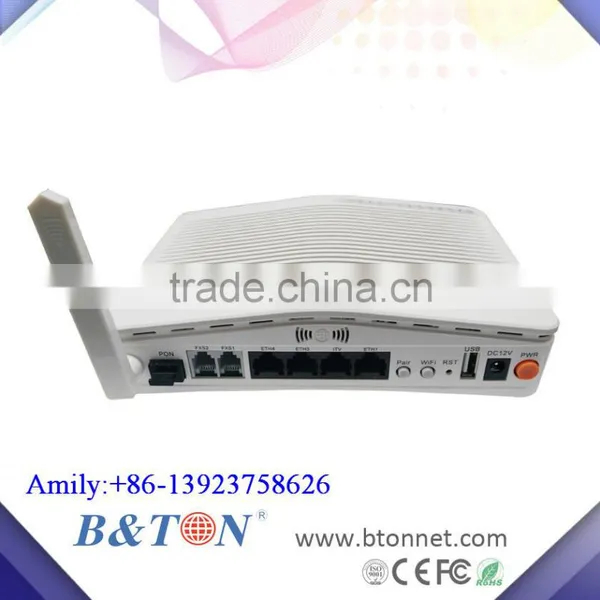

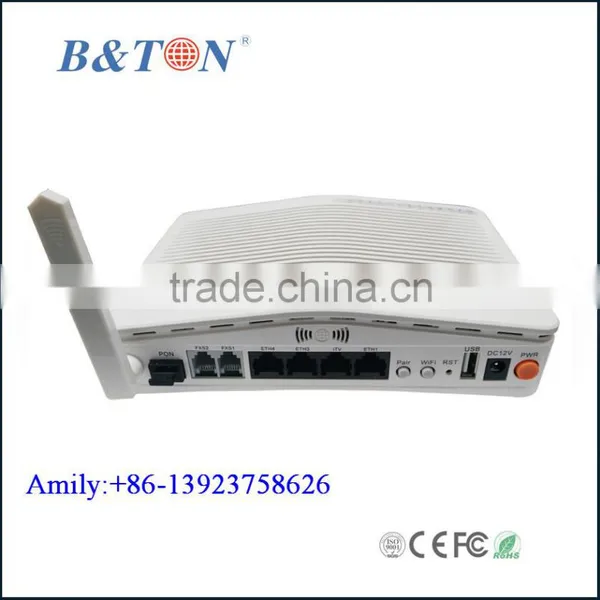

G007U-N is GPON ONT designed for fulfilling FTTH ultra-broadband access request of home and SOHO users. It is based on the stable and mature GPON technology, which has high performance/price ratio, and the technology of layer 2 Ethernet switch as well. It is highly reliable and easy to maintain, with guaranteed QoS, and fully compliant to ITU-T G.984 GPON standards.
Special Features
Plug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technology.
Support rich QinQ VLAN, DHCP Server/Relay and IGMP/MLD snooping multicast feature.
Support fiber transceiver diagnostic monitoring, fiber transmitter disable remotely.
Fully compatibility with OLT based on Broadcom chipset etc.
Support NAT, Firewall function.
Support IPv4 and IPv6 dual stack.
Integrated line testing compliant with GR-909 on POTS.
The WAN port supports bridge, router and bridge/router mixed mode.
Data Service Functions
Full speed non-blocking switching.
2K MAC address table.
64 full range VLAN ID.
Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.
Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.
Support auto polarity detection of Ethernet ports (AUTO MDIX).
Integrated IEEE802.1p QoS with four level priority queues.
Support IPv4 IGMP snooping and IPv6 MLD snooping.
Support bridge, router and bridge/router mixed mode.
POTS Service Functions
Call protocol: SIP(IMS compatible)/H.248(Megaco)/MGCP optional, seamless compatible with all popular call agent.
Integrate heartbeat function and support active/standby call agent.
Voice coding: ITU-T G.711/G.723.1(5.3K/6.3Kbit/s)/G.729, auto-negotiate with call agent.
Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length.
Support high/low speed fax, bypass fax, and T38 fax.
Support high speed MODEM(56Kbps) dial access.
Support RFC2833 and redundant RFC2833, difference rings, MD5 authentication, call forward, call waiting, hot-line call, alarm clock, and all kinds of value-added voice service.
Multi-party conferencing.
Line testing according to GR-909.
IP address assignment: dynamic PPPoE/DHCP Client and static IP.
Support WEB, CLI,IVR,TR069.
Integrated OAM, XML, DHCP option 66 & 67 for auto configuration and firmware upgrade.
Call loss less than 0.01%.
WIFI Service Functions
Integrated 802.11b/g/n, 300Mbps, 2T2R.
Support 128 connections.
Support WEP and WPA/WPA2 security protocols.
Port features:
1 GPON port (uplink 1.25Gbps, downlink 2.5Gbps)
4 10/100/1000M ports
2 POTS ports
1 wlan port
Physical features:
Power supply: 12VDC
Power consumption: 10W
Dimension 190mm* 33 mm*155 mm(W*H*D)
Net weight < 0.4Kg
Temperature:
Working temperature:0~55℃
Storage temperature: -30~60℃
Relative humidity: 10~90% (non-condensing)
If you have interest, Call me for the price! Or add online skype: Sophinesnow2005
