10/100/1000Mbps 8 Ports+ 2 Gigabit SFP Slot Managed Industrial Optical Fiber Switch

Name: 10/100/1000Mbps 8 Ports+ 2 Gigabit SFP Slot Managed Industrial Optical Fiber Switch
Brand: Bton
Price: USD $32 - 80 / Pair

FOB Price

USD $32 - $80 / Pair

100 Pairs(Min.Order)

Supply Ability 30000 Pair / Pairs per Month
Port shenzhen port
Payment Terms:Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Guangdong, China

Brand Name:

Bton

Model Number:

BT-204

Product Description

10/100/1000Mbps 8 Ports+ 2 Gigabit SFP Slot Managed Industrial Optical Fiber Switch

This managed industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environments.
The switch complies with CE, FCC and RoHS standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.

Features & Benefits

4 10/100Base-T(X) ports and 2 1000Base-X ports

“OP-Ring” (recovery time<20ms), RSTP/STP, and MSTP for network redundancy

SNMPv3, ieee802.1X, HTTPS and SSH to enhance network security

Port-based VLAN, IEEE802.1Q VLAN and GVRP to ease network planning

DHCP Option 82 for IP address assignment with different policies

Ethernet/IP and Modbus/TCP industrial Ethernet protocol supported

Bandwidth management prevents unpredictable network status

RMON for efficient network monitoring and proactive capability

Lock port allows access by only authorized MAC addresses

Port mirroring for online debugging

Automatic warning by exception through email, relay output

QoS and ToS/DiffServ for flow control and management

IEEE 802.3ad, LACP for optimum bandwidth utilization

Configurable by CLI for advanced management function

-40℃-85℃ operating temperature range

Physical Characteristics

Housing: Aluminum Alloy material with IP40 Protection

Dimension: 138mm(L) X 112mm(W) X 60mm(H)

Weight: 710g

Installation: Din-Rail mounting, Wall mounting

Switch Properties

Priority Queues: 4

Maximum No of Available VLANs: 256

VLAN ID: 1-4094

IGMP Groups: 256

MAC Table Size: 8K

Packet Buffer Size: 1M bit

Interfaces

SFP Port: 1000Base-X interface

RJ45 Port: 10/100Base-T(X) auto negotiation

Console Port: RS-232(RJ45 connector)

Alarm Contact: 1 replay outputs, supports IP/MAC conflict

Power

Input Voltage: 24V DC(18-36VDC) Redundant dual inputs

Input Current: <0.5A @24VDC

Overload Current Protection: Present

Reverse Polarity Protection: Present

Redundant Protection: Present

Technology

Protocol: BT-Ring, IGMPv1/v2, GVRP, SNMPv1/ v2C/ v3, DHCP Client, TFTP, SMTP, RMON, HTTP,

HTTPS, Telnet, Syslog, SSH, SNMP Inform, LLDP, SNTP Service/ Client, PVLAN

MIB: MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB

Environmental Limits

Operating Temperature: -40℃-85℃

Storage Temperature: -40℃-85℃

Ambient Relative Humidity: 5%-95% (non-condensing)

Standards

IEEE 802.3 for 10BaseT

IEEE 802.3u for 100BaseT(X)

IEEE 802.3x for Flow Control

IEEE 802.1D-2004 for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1Q for VLAN Tagging

IEEE 802.1p for Class of Service

IEEE 802.1X for Authentication

IEEE 802.3ad for Port Trunk with LACP

EMS:

EN61000-4-2 (ESD)，Level 3

EN61000-4-3 (RS)，Level 3

EN61000-4-4 (EFT)，Level 3

EN61000-4-5 (Surge)，Level 3

EN61000-4-6 (CS)，Level 3

EN61000-4-16(Common-mode Conduction)，Level 3

Shock: IEC 60068-2-27

Free Fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

EMI: FCC CFR47 Part 15, EN55022/CISPR22, Class A

Industry: IEC61000-6-2

Rail: EN50155, EN50121-4

Traffic: NEMA TS-2

Warranty

5 years

Models Available
Model No	Description
Dual Fiber
BT-GY204M	multi-mode; 550M; 21000M SFP Slot and 410/100M RJ45 Port
BT-GY204S20	Single-mode; 20Km; 21000M SFP Slot and 410/100M RJ45 Port
BT-GY204S40	Single-mode; 40Km; 21000M SFP Slot and 410/100M RJ45 Port
BT-GY204S60	Single-mode; 60Km; 21000M SFP Slot and 410/100M RJ45 Port
BT-GY204S80	Single-mode; 80Km; 21000M SFP Slot and 410/100M RJ45 Port
Single Fiber
BT-GY204SF/20	Single-mode; 20Km; 21000M SFP Slot and 410/100M RJ45 Port
BT-GY204SF/40	Single-mode; 40Km; 21000M SFP Slot and 410/100M RJ45 Port
BT-GY204SF/60	Single-mode; 60Km; 21000M SFP Slot and 410/100M RJ45 Port
BT-GY204SF/80	Single-mode; 80Km; 21000M SFP Slot and 410/100M RJ45 Port

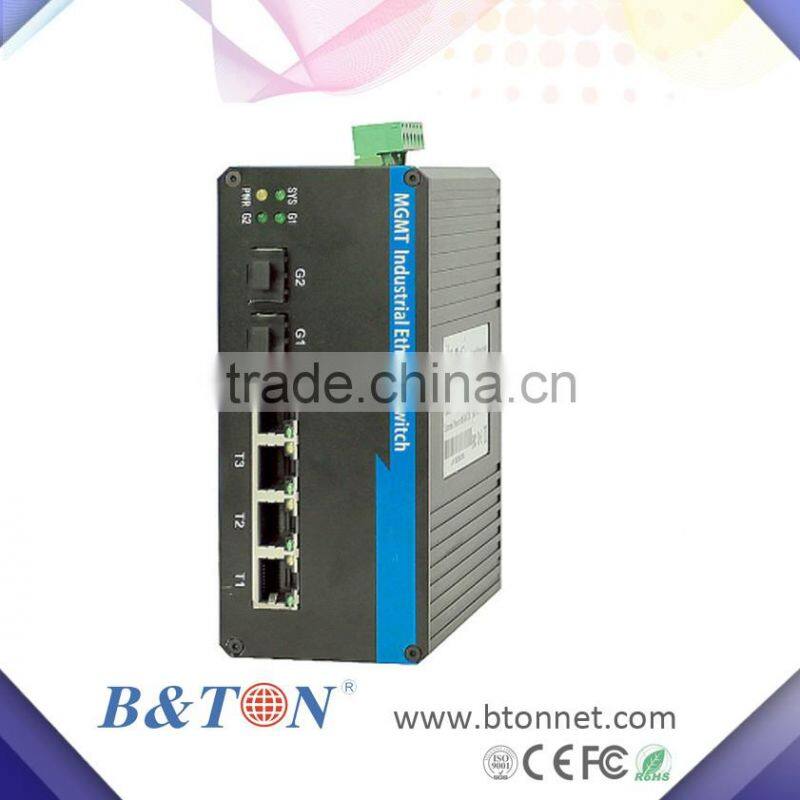

Detailed Images

Features

4 10/100Base-T(X) ports and 2 1000Base-X ports

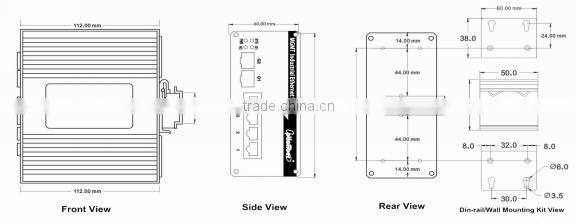

5.Dimension

Power Charger type

British type,Amercian type,European type,Austrilia Type

Dimension
