5Port Gigabit Ethernet POE Switch for CCTV IP Camera

5Port Gigabit Ethernet POE Switch for CCTV IP Camera thumbnail-1
5Port Gigabit Ethernet POE Switch for CCTV IP Camera photo-1
US$ 32 - 80 MOQ: 100 Pairs
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Bton
Model Number:
BT-5ports POE-1
Contact Supplier Request Quote Chat Now
Shenzhen Bton Weiye Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Bton
Model Number BT-5ports POE-1
Product Description

5Port Gigabit Ethernet POE Switch for CCTV IP Camera

POE Switch with AF/AT PoE Ports and 1 Up-link
Bandwidth: 1.6Gbps
PoE Line: End-Span(12+,36-)
PoE STD: IEEE802.3af(15.8W),IEEE802.3at(25.5W)
Adapter: 65W(52V/1.25A)
Feature
◆IEEE 802.3af/at power on up to 8/8 ports
◆Supply power to wireless access points and surveillance cameras over Cat-5 cabling
◆5/9 x 10/100Mbps Ports with Auto Uplink
◆Supports PoE power up to 15.8W/25.5W for each PoE port
◆Supports PoE IEEE 802.3af/at compliant PDs
◆Supports IEEE 802.3x flow control for Full-duplex Mode and back-pressure for Half-duplex Mode
◆2K entry MAC address table of the PoE Switch with auto-learning and auto-aging
◆LED indicators for monitoring power, link, activity and speed
◆External power adapter supply


Flexible
Choose to plug in up to five Ethernet or Fast Ethernet devices and mix in up to four IEEE802.3af IP-based devices like wireless access points or IP-based network surveillance cameras. Place these IEEE802.3af-compliant devices where they belong – high up on walls and ceiling for maximum coverage – or anywhere else you need them. Power and data are carried over standard Cat 5 cabling.
Plug and Play
The standards-based PoE Switch senses and adjusts for network speed and cabling type automatically, for easy integration into your existing 10/100 Ethernet network. For PoE, the switch automatically detects IEEE802.3af-compliant devices, and supplies power as needed. Front panel LEDs keep you informed of switch and PoE status.
Quiet and Compact
Engineered for compact convenience, it durable metal case that is easily positioned on your desktop or a wall, using the included mounting hardware. The fan-less design quietly integrates with your small office environment.
Great Value
With data switching and Power over Ethernet integrated into one unit, the PoE Switch saves space, reduces cables and eliminates the requirement for dedicated electrical outlets – lowering installation costs, simplifying installation of PoE-capable devices, and eliminating the need for electricians or extension cords. All in all, a great benefit for a modest price.

Technical parameter
Product Name
5-Port AF PoE Switch with 4 PoE Ports and 1 Uplink
Model
BT-P401E
Connector Type
5x 10/100M copper cable RJ45 ports(4 PoE ports+1 Uplink)
Network Media
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter)
Bandwidth
1.6Gbps (non-blocking)
Address Database Size
1K
MTBF
190,000 hours (about 21 years)
Forwarding Mode
Store-And-Forward
Network Protocols
IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI; IEEE 802.3af
LED Display
System: power supply; Every Port: connecting, PoE working status
Power Supply
Power input: AC100-240V 50/60Hz; (every country use a custom power plug)
PoE Ports
Port1-4 support POE
PoE Port Power
15.4W for each POE port
PoE Standard
IEEE 802.3af
PoE Feature
All ports support MDI/MDIX
Working Environment
Operating Temperature: 0 ° ~ 55 ° C; Storage Temperature: -20 ° ~ 75 ° C; Operating Humidity: 10% ~ 95%, non-condensing
Certification
CE Mark ,commercial; CE/LVD EN60950, RoHS
Radiation
CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B
Transmission Distance
Data transmission distance: 100m
Product Size
118x85x27mm, 0.24kg
Warranty
1 year warranty(2 yeas warranty for power adapter)
Power Supply
Power Supply
Power input: AC100-280V 50/60Hz; (every country use a custom power plug)
Power input: AC100-280V 50/60Hz; (every country use a custom power plug)
PoE Ports
PoE Ports
8/8
8/8
PoE Port Power
PoE Port Power
15.8W/25.5W for each POE port
15.8W/25.5W for each POE port
PoE Standard
PoE Standard
IEEE 802.3af/at
IEEE 802.3af/at
PoE Feature
PoE Feature
All ports support MDI/MDIX
All ports support MDI/MDIX
Working Environment
Working Environment
Operating Temperature: 0 ° ~ 55 ° C; Storage Temperature: -20 ° ~ 75 ° C; Operating Humidity: 10% ~ 95%, non-condensing
Operating Temperature: 0 ° ~ 55 ° C; Storage Temperature: -20 ° ~ 75 ° C; Operating Humidity: 10% ~ 95%, non-condensing
Certification
Certification
CE Mark ,commercial; CE/LVD EN60950, RoHS
CE Mark ,commercial; CE/LVD EN60950, RoHS
Radiation
Radiation
CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B
CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B
Transmission Distance
Transmission Distance
Data transmission distance: 100m
Data transmission distance: 100m
Warranty
Warranty
1 year warranty(2 yeas warranty for power adapter)
1 year warranty(2 yeas warranty for power adapter)
POE Switch(AF,each port 15.4w)
BT-P401E-af
4port POE+100M UTP
BT-P401F-25af
4port POE+100M Dual Fiber
BT-P401F-25A/Baf
4port POE+100M Single Fiber
BT-P801E-af
8port POE+100M UTP
BT-P801F-25af
8port POE+100M Dual Fiber
BT-P801F-25A/Baf
8port POE+100M Single Fiber
POE Switch(AT,each port 25.5w)
BT-P401E-at
4port POE+100M UTP
BT-P401F-25at
4port POE+100M Dual Fiber
BT-P401F-25A/Bat
4port POE+100M Single Fiber
BT-P801E-at
8port POE+100M UTP
BT-P801F-25at
8port POE+100M Dual Fiber
BT-P801F-25A/Bat
8port POE+100M Single Fiber

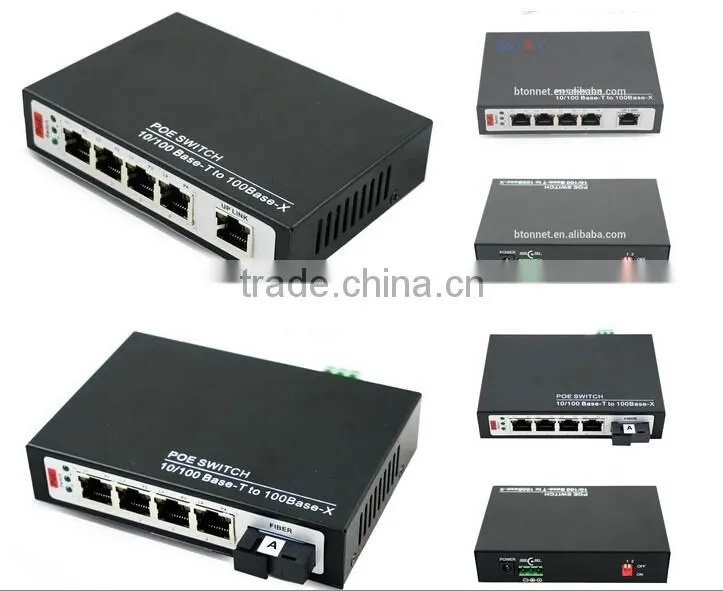

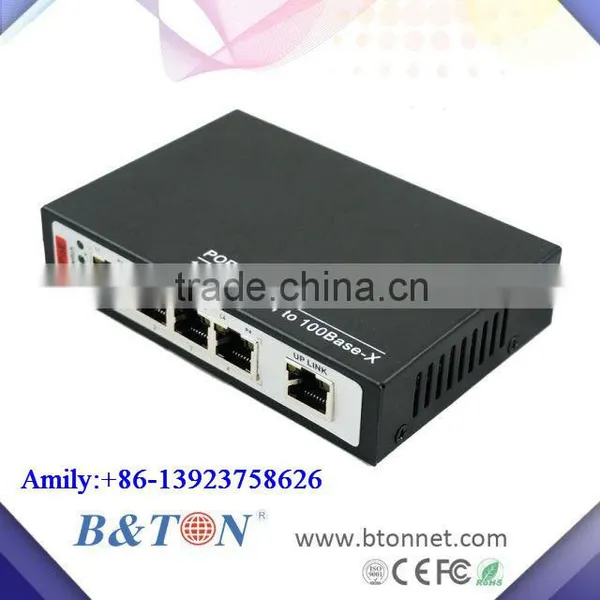

Detailed Images

Description: 5-PORT 10/100 switch with 4 PoE ports, IEEE 802.3at; PoE Power Output: 25.5Watts per port. Total power budget: 110Watts

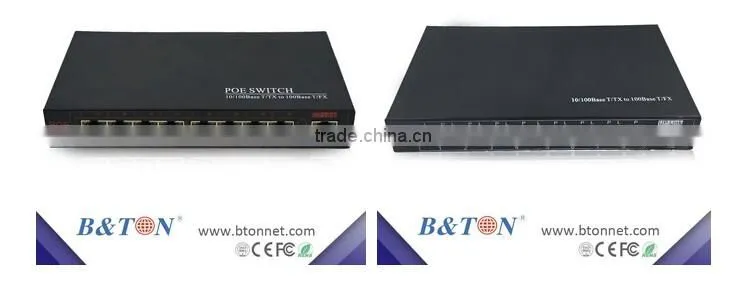

BT-P801E POE Switch 4POE+1UTP

9 Port Switch,8 Port AF PoE Ports and One Ethernet Uplink
Bandwidth: 1.6Gbps
PoE Line: End-Span(12+,36-)
IEEE802.3af(15.4W)
Adpater: 130W(52V/2.15A)
