10/100M 8 Port 100M Ethernet Layer 2 Managed Switch Managed Industrial Network/Ethernet Switch

10/100M 8 Port 100M Ethernet Layer 2 Managed Switch Managed Industrial Network/Ethernet Switch thumbnail-1
10/100M 8 Port 100M Ethernet Layer 2 Managed Switch Managed Industrial Network/Ethernet Switch photo-1
US$ 32 - 80 MOQ: 100 Pairs
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Bton
Model Number:
BT-044
Contact Supplier Request Quote Chat Now
Shenzhen Bton Weiye Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Bton
Model Number BT-044
Product Description

10/100M 8 port 100M Ethernet Layer 2 Managed Switch Managed Industrial Network/Ethernet Switch

This managed industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environments.
The switch complies with CE, FCC and RoHS standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.


Features & Benefits
4 10/100Base-T(X) ports and 4 100Base-FX ports
“OP-Ring” (recovery time<20ms), RSTP/STP, and MSTP for network redundancy
SNMPv3, ieee802.1X, HTTPS and SSH to enhance network security
Port-based VLAN, IEEE802.1Q VLAN and GVRP to ease network planning
DHCP Option 82 for IP address assignment with different policies
Ethernet/IP and Modbus/TCP industrial Ethernet protocol supported
Bandwidth management prevents unpredictable network status
RMON for efficient network monitoring and proactive capability
Lock port allows access by only authorized MAC addresses
Port mirroring for online debugging
Automatic warning by exception through email, relay output
QoS and ToS/DiffServ for flow control and management
IEEE 802.3ad, LACP for optimum bandwidth utilization
Configurable by CLI for advanced management function
-40℃-85℃ operating temperature range
Physical Characteristics
Housing: Aluminum Alloy material with IP40 Protection
Dimension: 138mm(L) X 112mm(W) X 60mm(H)
Weight: 710g
Installation: Din-Rail mounting, Wall mounting
Switch Properties
Priority Queues: 4
Maximum No of Available VLANs: 256
VLAN ID: 1-4094
IGMP Groups: 256
MAC Table Size: 8K
Packet Buffer Size: 1M bit
Interfaces
SFP Port: 100Base-FX interface
RJ45 Port: 10/100Base-T(X) auto negotiation
Console Port: RS-232(RJ45 connector)
Alarm Contact: 1 replay outputs, supports IP/MAC conflict
Power
Input Voltage: 24V DC(18-36VDC) Redundant dual inputs
Input Current: <0.5A @24VDC
Overload Current Protection: Present
Reverse Polarity Protection: Present
Redundant Protection: Present
Power
Input Voltage: 24V DC(18-36VDC) Redundant dual inputs
Input Current: <0.5A @24VDC
Overload Current Protection: Present
Reverse Polarity Protection: Present
Redundant Protection: Present
Connection: 1 removable 6-pin terminal blocks
Environmental Limits
Operating Temperature: -40℃-85℃
Storage Temperature: -40℃-85℃
Ambient Relative Humidity: 5%-95% (non-condensing)
Technology
Protocol: BT-Ring, IGMPv1/v2, GVRP, SNMPv1/ v2C/ v3, DHCP Client, TFTP, SMTP, RMON, HTTP,
HTTPS, Telnet, Syslog, SSH, SNMP Inform, LLDP, SNTP Service/ Client, PVLAN
MIB: MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB
Group 1,2,3,9
Flow Control: IEEE 802.3x flow control, back pressure flow control
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP
EMS:
EN61000-4-2 (ESD)，Level 3
EN61000-4-3 (RS)，Level 3
EN61000-4-4 (EFT)，Level 3
EN61000-4-5 (Surge)，Level 3
EN61000-4-6 (CS)，Level 3
EN61000-4-16(Common-mode Conduction)，Level 3
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
EMI: FCC CFR47 Part 15, EN55022/CISPR22, Class A
Industry: IEC61000-6-2
Rail: EN50155, EN50121-4
Traffic: NEMA TS-2
Warranty
5 years
Models Available
Model No
Description
Dual Fiber
BT-GY044M
multi-mode; 2Km; SC/ST/FC interfaces optional
BT-GY044S20
Single-mode; 20Km; SC/ST/FC interfaces optional
BT-GY044S40
Single-mode; 40Km; SC/ST/FC interfaces optional
BT-GY044S60
Single-mode; 60Km; SC/ST/FC interfaces optional
BT-GY044S80
Single-mode; 80Km; SC/ST/FC interfaces optional
Single Fiber
BT-GY044SF/20
Single-mode; 20Km; SC/ST/FC interfaces optional
BT-GY044SF/40
Single-mode; 40Km; SC/ST/FC interfaces optional
BT-GY044SF/60
Single-mode; 60Km; SC/ST/FC interfaces optional
BT-GY044SF/80
Single-mode; 80Km; SC/ST/FC interfaces optional

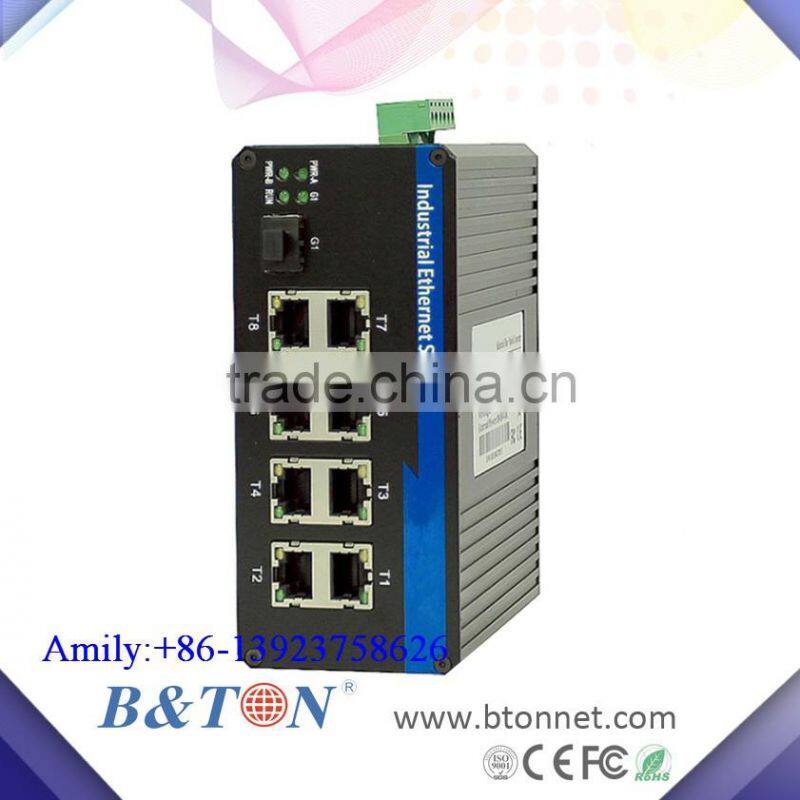

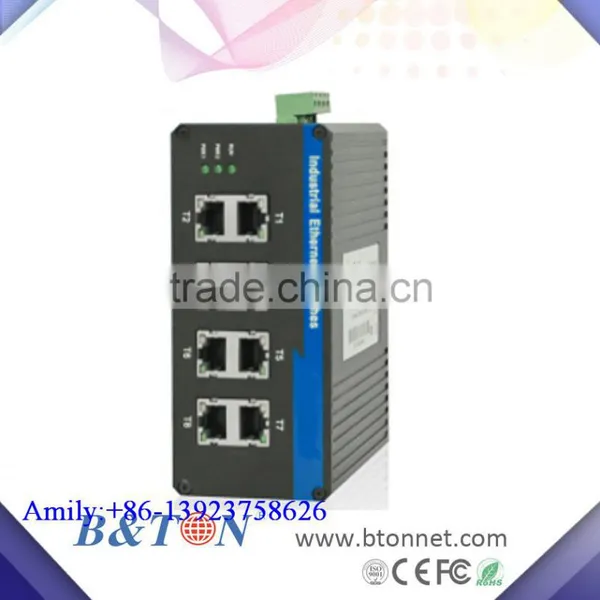

Detailed Images

Features

4 10/100Base-T(X) ports and 4 100Base-FX ports

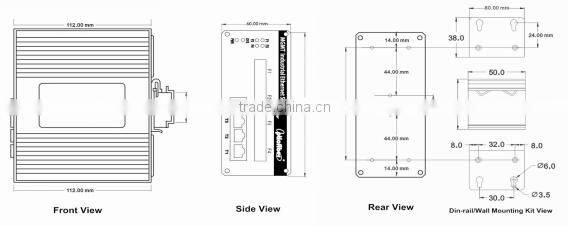

5.Dimension


Power Charger type

British type,Amercian type,European type,Austrilia Type

Dimension
Related Products
Packing & Delivery
Our Company

Shenzhen BTON Weiye Technology Co., Ltd is one of the powerful and high-tech companies specialized in researching, manufacturing and marketing of optical and fiber communication technologies. Our major products are media converter, digital video optical transmission systems and Optical Transceiver Modules .All of these products are widely applied in many industries like telecom ,traffic, government organization, campus network ,oil industry, electric power system, and public security etc. B&TON is one of the biggest and fastest growing multi products manufacturing and service provider(including OEM,ODM service and customized) in Shenzhen China
