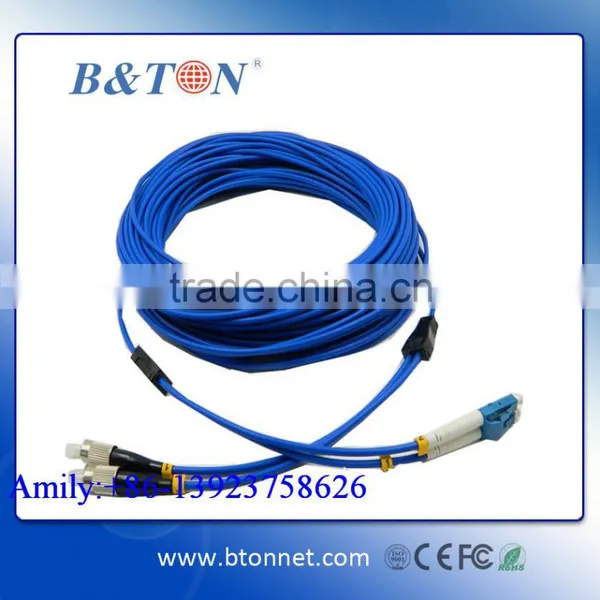

2core LC STSC FC SM Armoured Fiber Optic Patch Cord
1.OEM patch cord
2.Customized length
3.CE,Rohs
4.High quality and fast delivery
Armoured optic fiber patchcord and traditional fiber optic patchcord the biggest difference is that it uses a small bypass pipe and a woven metal mesh to protect the optical fiber according to fiber easy broken, easy damage defects,, and flame retardant PVC protective sheath, in order to achieve the purpose of moistureproof fireproof and prevention of rat bite. It can be directly laid in the network room and other harsh environments, without the use of protective sleeves for saving space. Armored cable structure as follows: 0.6 tightly fiber + metal hose + Dupont Kevlar+ woven metal wire ( reinforced cable torsion function, to prevent external damage to cable ) + environmental flame retardant PVC, than cable strength greater than the general indoor cable. It Can prevent rat bite, compressive, tensile, meet the harsh working environment. Greatly enhance the network maintenance convenience
1.Low insertion loss
2.High return loss
3.Good exchangeability
4.Good repeatability
5.Options of NTT or Bell core boot
6.High quality ceramic ferrule
7.Single mode or multimode
8.3mm, 2mm or 900um cable
9.Comply with IEC, ITU-T, ETSI recommendations and Telcordia standards.
10.Superior qualified standard PC/UPC/APC polishing

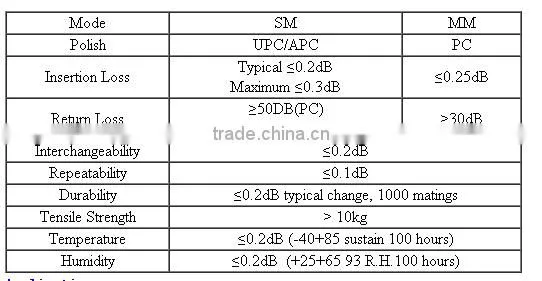

1)insertion loss:<=0.2db
2)return loss: >=50db(upc type),>=60db(apc type)
3)work temperature: -40℃~+80℃
4)repeatability:≤0.1
5)interchangeability: ≤0.2
6)plug times:>1000
7)tensile strength:50N
1. Communication Workshop
2. FTTH
3. Local Area Network
4. Fiber Sensor
5. CATV
6. Fiber Optical Communication Systemy
product name: fiber optic patchcord/pigtail
connector type : the frist interface: FC,SC,LC,MU,MT-RJ etc; the other interface: FC,SC,LC,MU,MT-RJ etc.
interface type: the frist one: UPC,APC;the other one: UPC,APC.
Transmission mode: SM,MM.
fiber cores: single ,dual
1.Competitive selling prices
2.Warranty: 1-3 years warranty
3.Excellent after-sale service
4.Samples are available for testing
5.Reply your inquiry within 2 hours
6.You can get our support online at 24*7
7.Big capability of manufacture and fast delivery time
8.With experienced technical team supporting
9.Customized label and package, ODM and OEM service offered
10.100% new materials for production and 100% reliable quality
If you have interest, Call me for the price! Or add online skype: Sophinesnow2005
