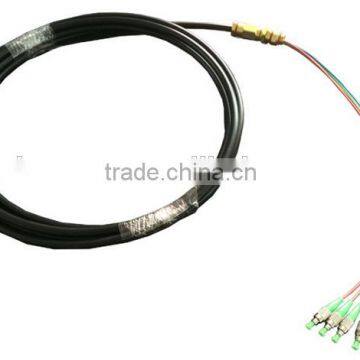

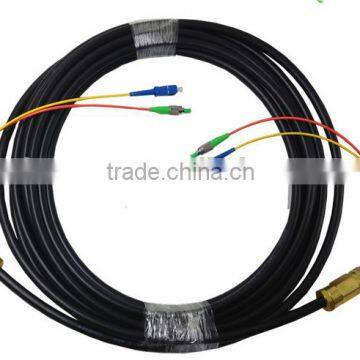

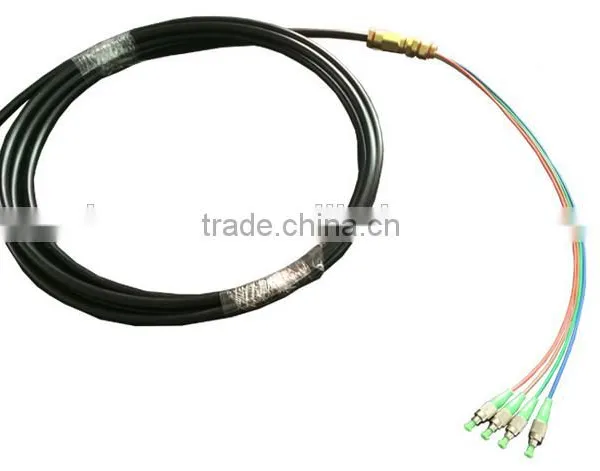

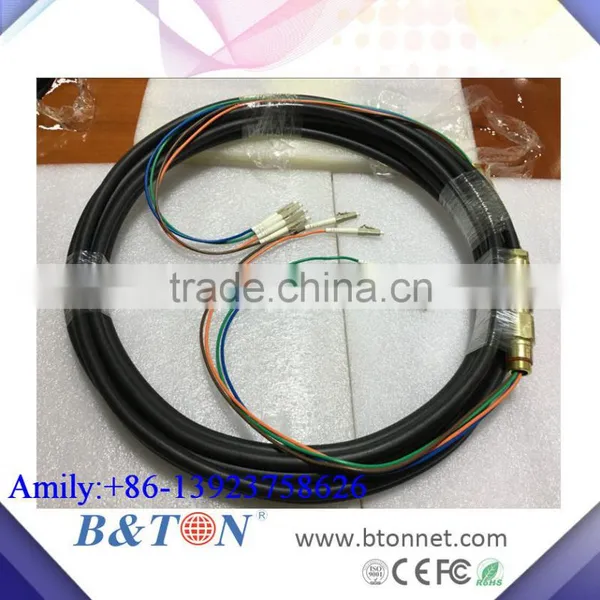

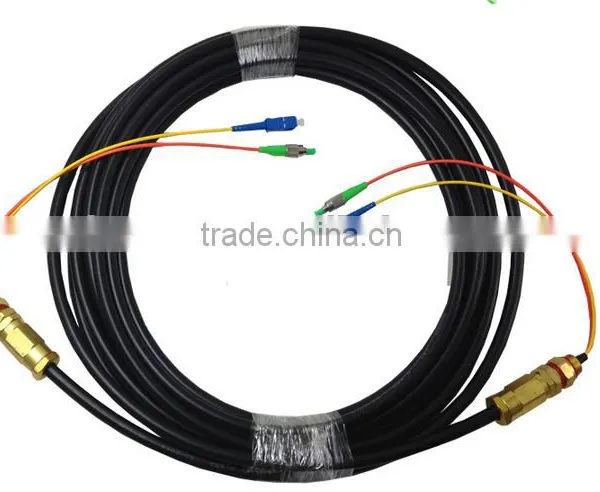

4 Core Outdoor Fiber Optic FC ST LC ST Waterproof Patch Cord
Fiber pigtail is a short optical fiber permanently attached to a source, detector, or other fiber optic device at one end and an optical connector at the other.
1. Low insertion loss, high return loss
2. 2, 4, 6, 8 fiber cores optional
3. Excellent exchangeability
4. Pull and erosion resistance, good grounding
5. Waterproof, suitable for adverse
0.9mm / 2.0mm / PVC Bundle Multi-Fiber Optic Pigtail with heat shrinkable tube
Parameter |
Unit |
multi-fiber connector |
||
SM | ||||
PC |
UPC |
APC |
||
Insertion loss (typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
Return loss |
dB |
≥45 |
≥50 |
≥60 |
Operating wavelength |
nm |
1310, 1510 |
||
Exchangeability |
dB |
≤0.2 |
||
Vibration |
dB |
≤0.2 |
||
Operating temperature |
°C |
-40~75 |
||
Storage temperature |
°C |
-45~85 |
||
Cord diameter |
mm |
φ3.0, φ2.0, φ0.9 |
||
Fiber count |
F |
4, 6, 8, 12, 24, … fibers |
||
Applicable connector |
FC, SC, ST, MU, LC |
|||
1.Item shipped in 3-15 working days after payment is received depends on the quantity of the order.
2.Item shipped by sea and air or UPS,FedEX,DHL and others, depending on size and weight of total order.
3.We accept T/T, L/C, Western Union, Money Gram and Paypal, just choose what you like.
Shenzhen Bton Technology Co., Ltd is one of the powerful and high-tech companies specialized in researching, manufacturing and marketing of optical and fiber communication technologies. Our major products are media converter, digital video optical transmission systems and Optical Transceiver Modules.
Order Information
Model: SM/UPC, SM/APC, MM50/125(OM2), OM3, MM62.5/125(OM1) OM4
Connector: LC, SC, ST, FC, E2000,MT-RJ
Cable Core: Simplexer, duplexer, 4 cores, 6 cores, 8 cores, 12 cores, 24 cores, 48 cores
Cable OD: Φ0.6, Φ0.9, Φ1.8, Φ2.0, Φ2.4, Φ3.0
Cable Material: PVC, LSZH, Hytrel
Cable Color: Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Purple
