GPON System Optical Fused Coupler FBT 3x3 Fiber Optical Splitter
1.Type: 1xN, 2xN
2. FTTx, xPON, LAN

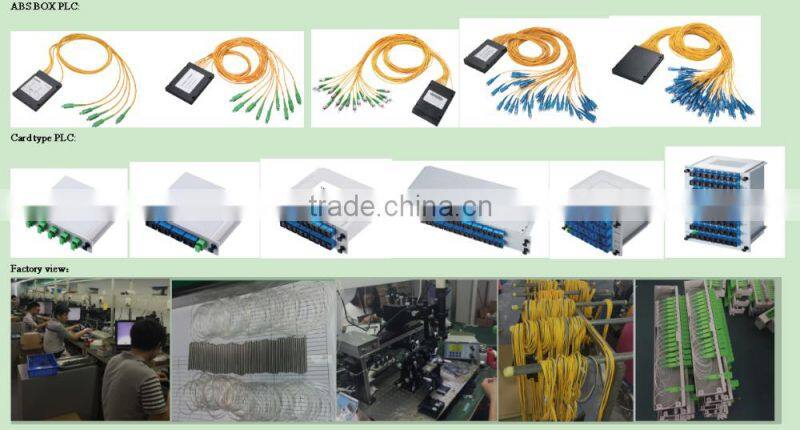

3.ABS box, mini module
4.ISO 9001

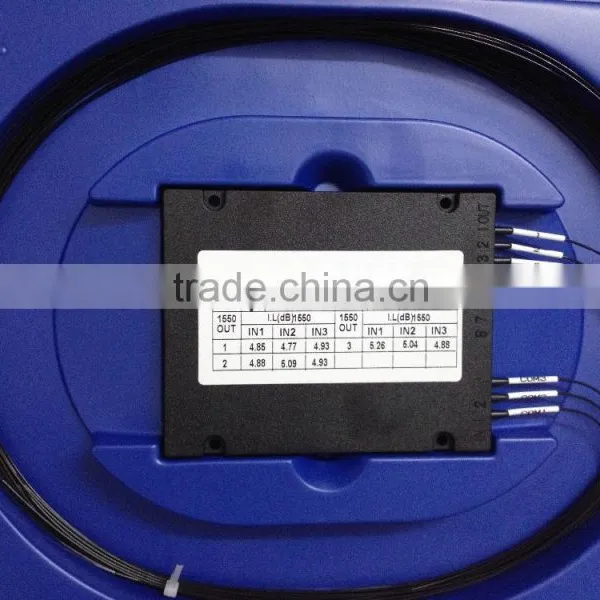

GPON System Optical Fused Coupler FBT 3x3 Fiber Optical Splitter
PLC splitter are based on the Planar Waveguide Technology. They provide a cost effective and space saving networking solution. They are key components in FTTX networks and are responsible to distribute the signal from central office to numbers of premises. They have very wide range of operating wavelength from 1260nm to 1620nm. With it's compact size, these splitters can be utilized in in-ground and aerial pedestals as well as rack mount systems
- Low Insertion loss
- Low PDL
- High Return Loss
- Uniform Power Splitting
- Compact Design
- Wide Operating Wavelength
- Wide Operating Temperature
- Excellent Environmental & Mechanial Stability
- Qualified Under Telcordia GR-1221 and GR-1209
-
Fiber Type
Corning SMF-28 fiber
Coupling Ratio(%)
33.3
Wavelength (nm)
1310 or 1550nm
Insertion Loss (dB) Max.
6.8./6.8
Excess Loss (dB) Max.
0.35
Polarization Dependent Loss (dB)
≤ 0.25
Insertion Loss Delta from: -20° C - 75° C (dB)*
≤ 0.25
Directivity (dB) Min.
55
Return Loss(dB)
55
Operating Temperature
-20 °C - 85 °C
Storage Temperature
-40 °C - 85 °C
Cable Type
900um loose tube
Fiber Pigtail Length (m)
1.0m
Port Configuration
3x3
Package Dimension (mm)
100X80X10mm
CATV Links
WDM Systems
System Monitoring
Test and Measurement Equipment
- FTTX (FTTP, FTTH, FTTN, FTTC, FTTB, FTTD)
- Passive Optical Networks (PON, GPON, GEPON)
- Local Area Networks (LAN)
- CATV systems
- Test Equipments
Shenzhen Bton Technology Co., Ltd is one of the powerful and high-tech companies specialized in researching, manufacturing and marketing of optical and fiber communication technologies. Our major products are media converter, digital video optical transmission systems and Optical Transceiver Modules
Why choose us?
1. Fast delivery
2. Competitive price
3.. Professional product and technical support
4. Prompt answer for any question or inquiry
5. Reliable quality, OEM service available
6. Free sample provided
7. Longtime warranty
8. Value-added service: except good products, we can provide good services on logistic and other help you may need
If you have interest, Call me for the price! Or add online skype: Sophinesnow2005
