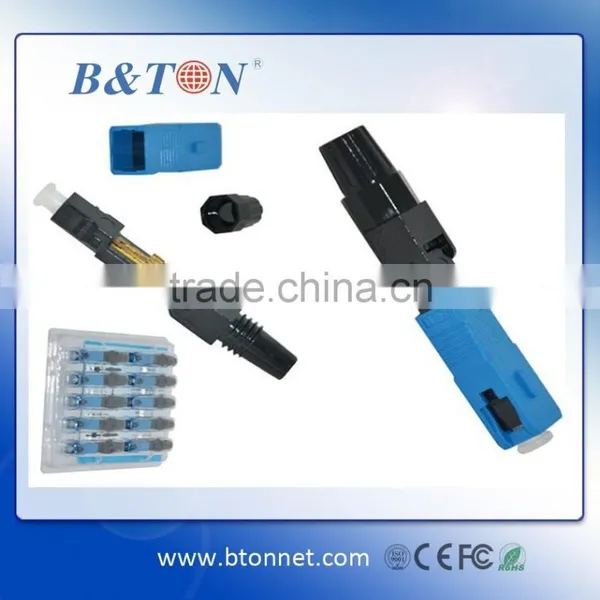

FTTH Fiber Optical SC SM Fast Connector for Fiber Optic Field Assembly
1.Professional factory
2.High quality&low price
3.Low insertion loss
4.Fast delivery
FTTH SC fast connector,Quick-SC Connector,Quickly assembly/ sc/upc fast connector
Description
Optical fiber connectors are used to join optical fibers where a connect/disconnect capability is required. The basic connector unit is a connector assembly. A connector assembly consists of an adapter and two connector plugs. Due to the polishing and tuning procedures that may be incorporated into optical connector manufacturing, connectors are generally assembled onto optical fiber in a supplier's manufacturing facility.
Features
1. Low insertion loss and back reflection loss
2. Ferrule end surface pre-domed
3. Boots in a variety colors
4. Telcordia style boots
5. Free-floating ceramic ferrule
6.The connector can be supplied as a pre-assenbled one piece or one piece or as connector kit.
7.Clips are avaliable for SC and LC duplex connector.
8.PC and APC, UPC are availiable.
9. Good exchange ability and good durability
Fast Connector Parameter
TEM |
Technical Parameters |
Application |
FTTH indoor&outdoor |
Optical fiber diameter |
125μm ( 657A & 657B ) |
Tight buffer diameter |
250μm |
Fiber mode |
Single mode |
Operation time |
About 100s(no fiber cut) |
Insertion loss |
≤ 0.2dB(1310nm & 1550nm) |
Return loss |
≤ -50dB |
Fastening strength of naked fiber |
>5 N |
Fastening strength of naked fiber holder |
>10 N |
Tensile strength |
>50 N |
On-line tensile strength (20 N) |
Δ IL ≤ 0.5dB Δ RL ≤ 5dB |
Mechanical durability (500 times) |
Δ IL ≤ 0.5dB Δ RL ≤ 5dB |
|
Drop-off test (drop-off height 4m, once per direction, totally 3 times) |
Δ IL ≤ 0.5dB Δ RL ≤ 5dB |
Using temperature |
-40~+75°C |

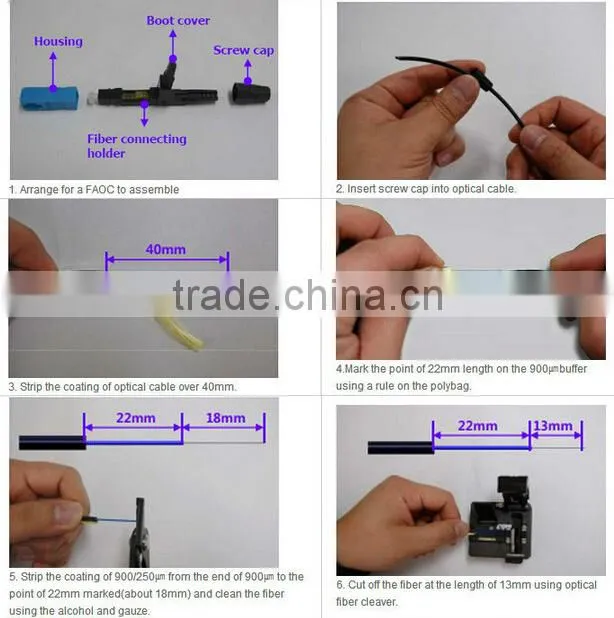

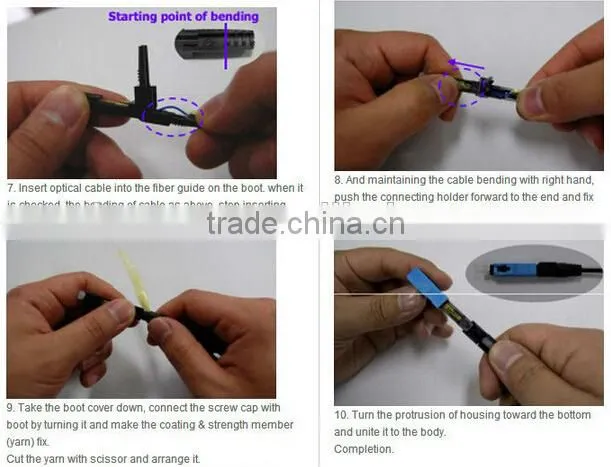

Installation

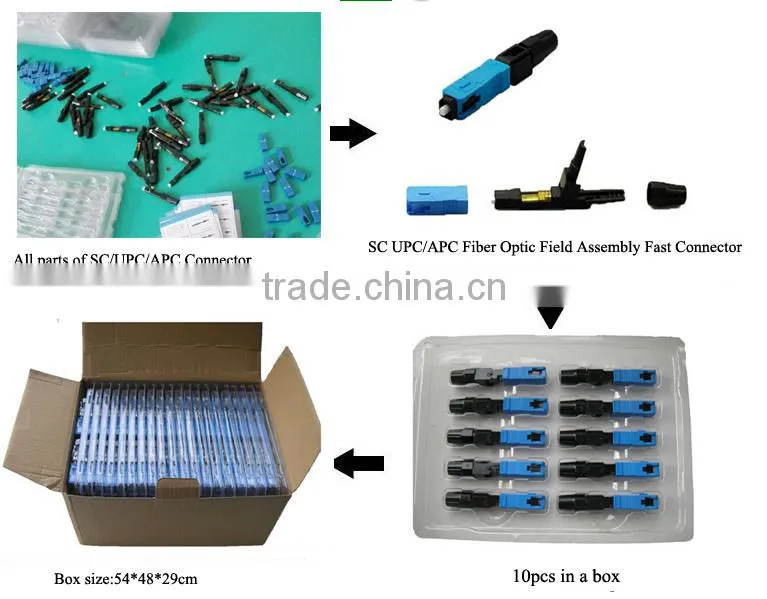

Package
Certification
Shippment &Payment
1.Item shipped in 3-15 working days after payment is received depends on the quantity of the order.
2.Item shipped by sea and air or UPS,FedEX,DHL and others, depending on size and weight of total order.
3.We accept T/T, L/C, Western Union, Money Gram and Paypal, just choose what you like.
Related Products
Company information
Shenzhen Bton Technology Co., Ltd is one of the powerful and high-tech companies specialized in researching, manufacturing and marketing of optical and fiber communication technologies. Our major products are media converter, digital video optical transmission systems and Optical Transceiver Modules.

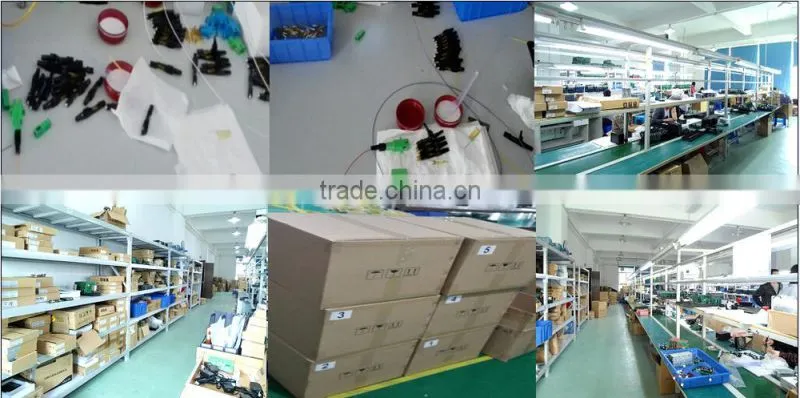

Production Flow
