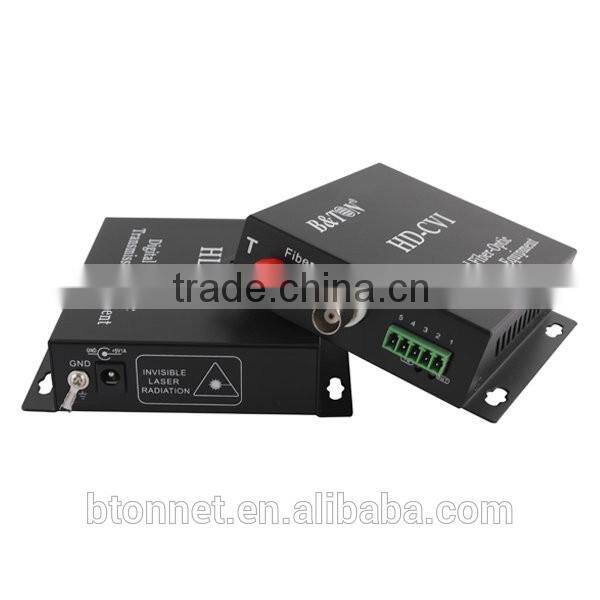

HD-CVI Fiber video Converter ,Singlemode Single fiber 20km
1/ 2 / 4 / 8 / 16Channels for choice
HDCVI TO Fiber Converter can simultaneously transmit 1-16 channels HDCVI over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment . Compatible with 1280H/25f, 1280H/30f, 1280H/50f, 1280H/60f. Lossless non-compression real time transmission.
Opitcal:
Wavelength |
1310nm&1550nm |
Output Power |
-8~3dBm |
Optic fiber |
50/125u multimode,62.5/125u multimode,9/125u single mode |
Rx sensitivity |
-25dBm |
Optical connector |
FC,ST,SC (optional) |
Distance |
0~550M (MM) / 0~20KM (SM) |
Video
Number of Channels |
4 |
Input/output impedance |
BNC 75Ω (unbalance) |
Standard video input/output voltage |
1.0Vp-p 720P and 1080P optional |
Video Bandwidth |
45MHz |
Sampling Bandwidth |
10bit |
Sampling Frequency |
108MHz |
Rise and Fall time |
<0.8ns |
Optical Signal Intrinsic Jitter |
<0.2 UI |
Differential Gain |
< ±1.5% |
Differential Phase |
< ±1° |
Connector |
BNC |
Other
Power |
DC5V 2A |
Power Consumption |
≤6W |
Temperature |
-40ºC ~75ºC |
Humidity |
10%~90% RH |
Unit Weight |
2KG(pair) |
Dimension |
183mm×154mm×45mm |
Installation |
Wall mount |
MTBF |
≥ 100000Hours |
Products Picturers:
