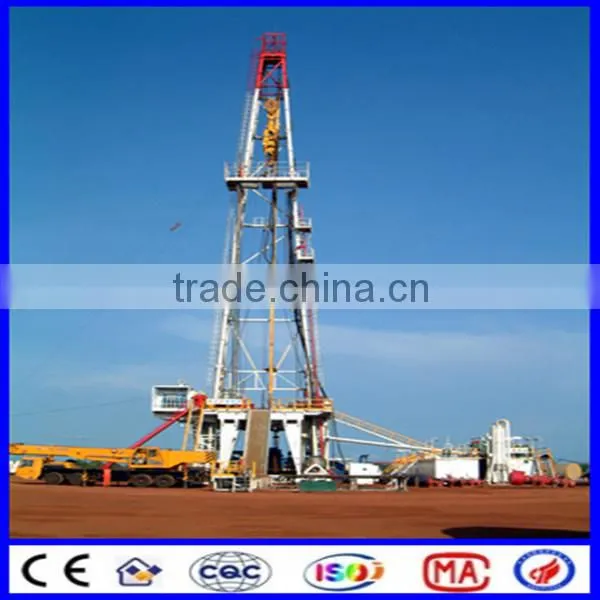

Drilling Rig ZJ50 for Oilfield PRICE NEW!

Name: Drilling Rig ZJ50 for Oilfield PRICE NEW!
Brand: Hongsheng
SKU: 112985531
Availability: InStock

US$ 2,000,000 - 9,000,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Rotary Drilling Rig

Power Type:

Diesel

Lijin Hongsheng Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Rotary Drilling Rig

Power Type Diesel

Power(W) 1500kw

Place of Origin Shandong, China

Brand Name Hongsheng

Model Number ZJ50

Certification API Spec 4F,7K,8A

Warranty 2 years

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1)aftersevice availble expecially in Kazaxctan and Russia
2)compents of rigs provided in time.
3)API Spec 4F,7K,8A

Model:U.S Met	ZJ50/3150L	ZJ50/3150LD	ZJ50/3150DZ	ZJ50/3150DB	ZJ50/3150DBF
Nominal drilling depth:	11500~16400 3500~5000
4-1/2″ Drill ft m	9200~14800 2800~4500
5″Drill ft m
Maximum static hook load: KIPS KN	695 3150
Maximum drill negative: KIPS KN	350 1600
Maximum input power winch: hp Kw	1500 1100			2680 2000
DW gear	4 forward + 2 reverse	4	4/Stepless	Stepless
Main brake type	Disc brake / with brake
Auxiliary brake type	Eddy current brake / E.T. N brakes		Dynamic braking / eddy current brake / E.T. N brakes
Rope diameter: in mm	1-3/8 35
Enhance the system's largest tethered	6×7
Wearing rope ways to improve the system	Shun wear / wore flowers
Swimming pulley diameter: in mm	50 1270
Opening diameter turntable: in mm	37-1/2 952.5
Wheel drive mode	Composite drive	Independent drive	Composite drive independent drive
Mast type	“∏”
Derrick effective height: ft m	148 45
Base height: ft m	20.5,29.5,34.5 7.5,9,10.5
Headroom base: ft m	20,25,30 6.12,7.62,9.12
Mud single power: hp KW	1600 1180
Mud pump sets	2
Transmission	Whole chain box		AC-SCR-DC	AC-DC-AC(VFD)	AC-DC-AC(VFD)
					/Pump group
Main engine power: hp KW	1500 1100
Main engine number of units	3				4
Mud tanks with a total capacity: BBL m3	2100 320
