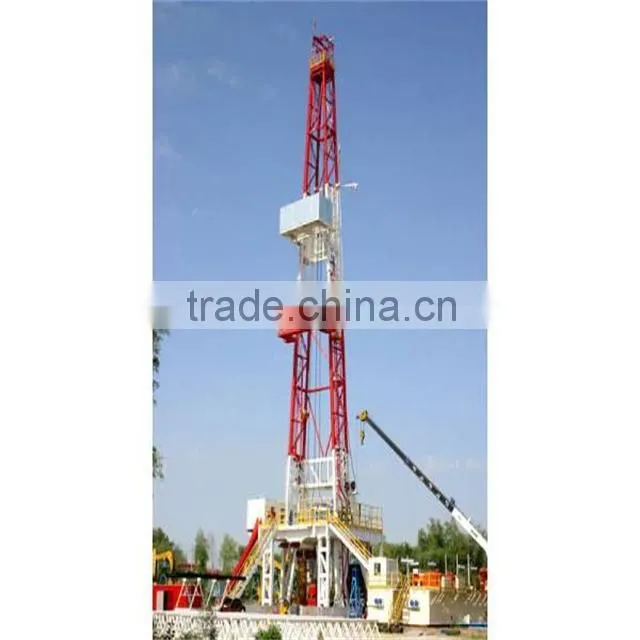

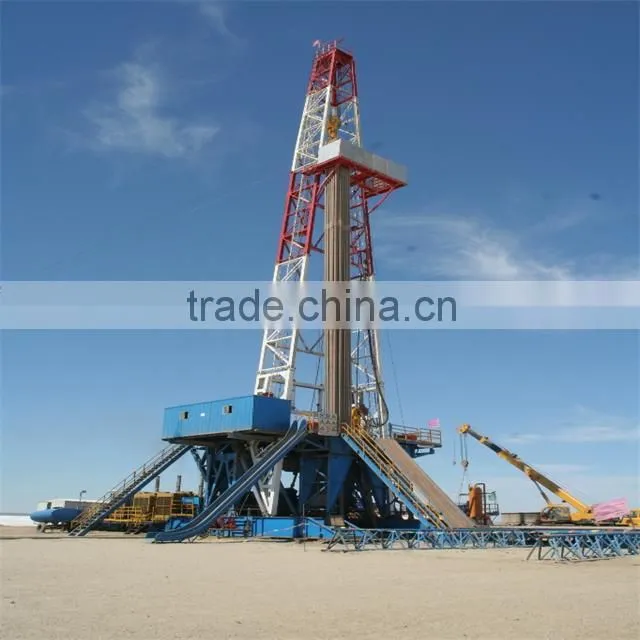

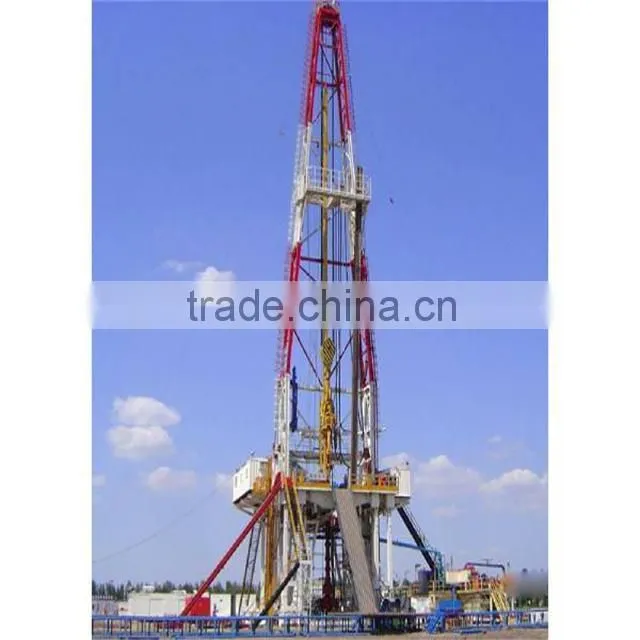

API ZJ40 Drilling Rig for Oilfield

Name: API ZJ40 Drilling Rig for Oilfield
Brand: Hongsheng
SKU: 112985461
Availability: InStock

US$ 1,000,000 - 6,000,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, Your choice

Power Type:

Diesel

Lijin Hongsheng Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, Your choice

Power Type Diesel

Power(W) 1000HP

Place of Origin Shandong, China

Brand Name Hongsheng

Voltage 220V

Certification API ISO

Warranty 1year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Meet standrad of ISO and API.
2.With strong technology force and low price.
3.High quality ang good after-sales service.

Model:U.S Met	ZJ40/2250L	ZJ40/2250LD	ZJ40/2250DZ	ZJ40/2250DB	ZJ40/2250DBF
Nominal drilling depth:	8200~13200 2500~4000
4-1/2″Drill ft m	6600~10500 2000~3200
5″Drill ft m
Maximum static hook load: KIPS KN	496 2250
Maximum drill negative: KIPS KN	265 1200
Maximum input power winch: hp Kw	1000 735		1000/2100 735/1600	1000/1340 735/1000
DW gear	4 n +2 down	4	4/Stepless	Stepless
Main brake type	Disc brake / with brake
Auxiliary brake type	Eddy current brake / E.T. N brakes		Dynamic braking / eddy current brake / E.T. N brakes
Rope diameter: in mm	1-1/4 32
Enhance the system's largest tethered	5×6
Wearing rope ways to improve the system	Shun wear / wore flowers
Swimming pulley diameter: in mm	44 1120
Opening diameter turntable: in mm	27-1/2 698.5
Wheel drive mode	Composite drive	Independent drive	Composite drive independent drive
Mast type	“∏”
Derrick effective height: ft m	142 43
Base height: ft m	16.4,19.7,24.6 5,6,7.5
Headroom base: ft m	12.4,15.6,20.5 3.76,4.76,6.26
Mud single power: hp KW	1300 956
Mud pump sets	2
Transmission	Whole chain box		AC-SCR-DC	AC-DC-AC(VFD)	AC-DC-AC(VFD)
					/Pump group
Diesel Power: hp KW	1100 810		1632 1200		1360 1000
Diesel Number of units	3				4
Mud tanks with a total capacity: BBL m3	1710 260

Explanation
We can according to your needs to provide you a different standard, similar products with different specifications

Host device	Wellhead Tools	Traveling system	Rotating system	Circulation purification system	Well Control System	Air purification system	Safety aids
Derrick	Hydraulic tongs	Tour car	Turntable	Mud Desander	Annular BOP	Compressor	Fire appliances
Crane	Hydraulic Power Station	Hook	Kelly Bushing	Hose desilter	Ram BOP	Dryer	Gas detection equipment
Winch	Elevator	Faucet		Mud tank degasser	Kill Manifold	Air tanks	Alarm
Base	Kava			Shaker	Choke manifold	Drying room	Gas masks
Diesel	Spinner			Stirrer	Ground remote control system		Explosion circuit
Generator				Centrifuge
