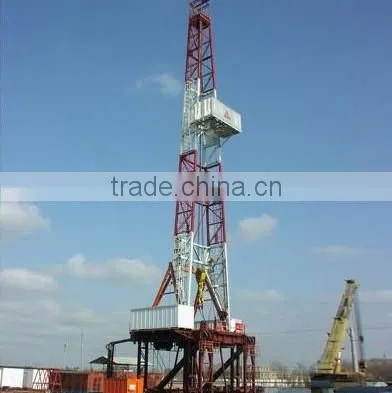

Zj30 Hot Sale New Condation Oilfield Drilling Rig

Name: Zj30 Hot Sale New Condation Oilfield Drilling Rig
Brand: hongsheng
SKU: 112985477
Availability: InStock

US$ 24,000,000 - 65,000,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Rotary Drilling Rig

Power Type:

Diesel

Lijin Hongsheng Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Rotary Drilling Rig

Power Type Diesel

Power(W) 1000kw

Place of Origin Shandong, China

Brand Name hongsheng

Model Number zj30

Certification api

Warranty 12month

After-sales Service Provided Engineers available to service machinery overseas

Specifications

new condation and api standard
skid drilling machine
4000m work depth
overseas service aviliable

Model:U.S Met	ZJ30/1700L	ZJ30/1700LD	ZJ30/1700DZ	ZJ30/1700DB	ZJ30/1700DBF
Nominal drilling depth:	5250~9850 1600~3000
4-1/2″Drill ft m	4920~8200 1500~2500
5″Drill ft m
Maximum static hook load: KIPS KN	382 1700
Maximum drill negative: KIPS KN	225 1000
Maximum input power winch: hp Kw	750 550
DW gear	4 n +2 down	4	4/Stepless	Stepless
Main brake type	Disc brake / with brake
Auxiliary brake type	Eddy current brake / E.T. N brakes		Dynamic braking / eddy current brake / E.T. N brakes
Rope diameter: in mm	1-1/8 29
Enhance the system's largest tethered	5×6
Ways to enhance the system wearing rope	Shun wear / wore flowers
Swimming pulley diameter: in mm	40 1005
Opening diameter turntable: in mm	20-1/2 520.7
Wheel drive mode	Composite drive	Independent drive	Composite drive independent drive
Mast type	“∏”
Derrick effective height: ft m	134 41
Base height: ft m	16.4,19.7,24.6 5,6,7.5
Headroom base: ft m	12.4,15.6,20.5 3.76,4.76,6.26
Mud single power: hp KW	1000 735
Mud pump sets	2
Transmission	Whole chain box		AC-SCR-DC	AC-DC-AC(VFD)	AC-DC-AC(VFD)
					/Pump group
Diesel Power: hp KW	1100 810		1632 1200		1360 1000
Diesel Number of units	2	3			4
Mud tanks with a total capacity: BBL m3	629 100	1710 260

Explanation We can according to your needs to provide you a different standard, similar products with different specifications.

Host device	Wellhead Tools	Traveling system	Rotating system	Circulation purification system	Well control system	Air purification system	Safety aids
Derrick	Hydraulic tongs	Tour car	Turntable	Mud desander	Annular BOP	Compressor	Fire appliances
Crane	Hydraulic power station	Hook	Kelly bushing	Hose desilter	Ram BOP	Dryer	Gas detection equipment
Winch	Elevator	Faucet		Mud tank degasser	Kill manifold	Air tanks	Alarm
Base	Kava			Shaker	Choke manifold	Drying room	Gas masks
Diesel	Spinner			Stirrer	Ground remote control system		Explosion circuit
Generator				Centrifuge
