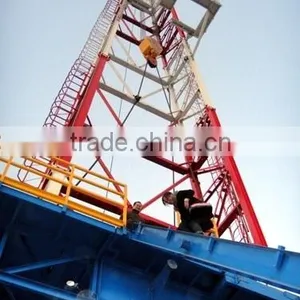

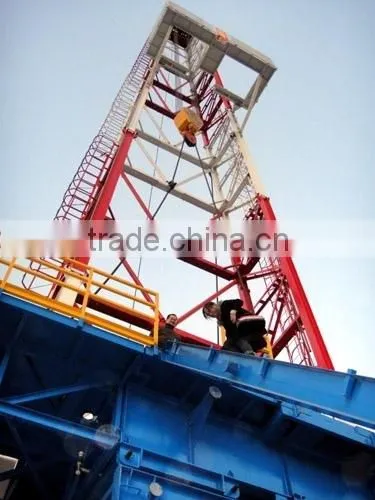

Help CenterOilfield Well Usage 5000 Meter Depth Drilling Rig Zj50oil Drilling Machine Import From China
Related Products
-
Oilfield Well Usage 7000 Meter Depth Drilling Rig Zj70oil Drilling Machine Import From ChinaUS$ 10,000,000 - 60,000,000MOQ: 1 Set -
New Condation Oilfield Well Usage 7000 Meter Depth Drilling Rig Zj70oil Drilling Machine Import From ChinaUS$ 10,000,000 - 60,000,000MOQ: 1 Set
-
Skid-mounted Land Drive Rigs Hot SalesUS$ 150,000 - 5,000,000MOQ: 1 Set
-
AC Variable Frequency Electric Drive Drilling RigUS$ 10,000,000 - 70,000,000MOQ: 1 Set
-
Mechanical Compound Drive Rig AC Variable Frequency Electric Drive Drilling RigUS$ 10,000,000 - 70,000,000MOQ: 1 Set
Specifications
1500HP and engine power is 1100kw2 sets mud pump
drilling depth5250-9850
max hook load 3150kn
12monthwarranty 15 daysfactor
Model:U.S Met |
ZJ50/3150L |
ZJ50/3150LD |
ZJ50/3150DZ |
ZJ50/3150DB |
ZJ50/3150DBF |
Nominal drilling depth: |
11500~16400 3500~5000 |
||||
4-1/2″ Drill ft m |
9200~14800 2800~4500 |
||||
5″Drill ft m |
|||||
Maximum static hook load: KIPS KN |
695 3150 |
||||
Maximum drill negative: KIPS KN |
350 1600 |
||||
Maximum input power winch: hp Kw |
1500 1100 |
2680 2000 |
|||
DW gear |
4 forward + 2 reverse |
4 |
4/Stepless |
Stepless |
|
Main brake type |
Disc brake / with brake |
||||
Auxiliary brake type |
Eddy current brake / E.T. N brakes |
Dynamic braking / eddy current brake / E.T. N brakes |
|||
Rope diameter: in mm |
1-3/8 35 |
||||
Enhance the system's largest tethered |
6×7 |
||||
Wearing rope ways to improve the system |
Shun wear / wore flowers |
||||
Swimming pulley diameter: in mm |
50 1270 |
||||
Opening diameter turntable: in mm |
37-1/2 952.5 |
||||
Wheel drive mode |
Composite drive |
Independent drive |
Composite drive independent drive |
||
Mast type |
“∏” |
||||
Derrick effective height: ft m |
148 45 |
||||
Base height: ft m |
20.5,29.5,34.5 7.5,9,10.5 |
||||
Headroom base: ft m |
20,25,30 6.12,7.62,9.12 |
||||
Mud single power: hp KW |
1600 1180 |
||||
Mud pump sets |
2 |
||||
Transmission |
Whole chain box |
AC-SCR-DC |
AC-DC-AC(VFD) |
AC-DC-AC(VFD) |
|
/Pump group | |||||
Main engine power: hp KW |
1500 1100 |
||||
Main engine number of units |
3 |
4 |
|||
Mud tanks with a total capacity: BBL m3 |
2100 320 |
||||
Explanation We can according to your needs to provide you a different standard, similar products with different specifications.
Host device |
Wellhead Tools |
Traveling system |
Rotating system |
Circulation purification system |
Well control system |
Air purification system |
Safety aids |
Derrick |
Hydraulic tongs |
Tour car |
Turntable |
Mud desander |
Annular BOP |
Compressor |
Fire appliances |
Crane |
Hydraulic power station |
Hook |
Kelly bushing |
Hose desilter |
Ram BOP |
Dryer |
Gas detection equipment |
Winch |
Elevator |
Faucet |
Mud tank degasser |
Kill manifold |
Air tanks |
Alarm |
|
Base |
Kava |
Shaker |
Choke manifold |
Drying room |
Gas masks |
||
Diesel |
Spinner |
Stirrer |
Ground remote control system |
Explosion circuit |
|||
Generator |
Centrifuge |
