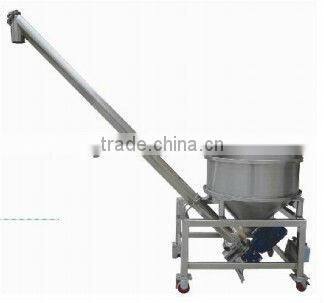

2015 latest Screw feeder conveyor with hopper

FOB Price

USD $4,000 - $10,000 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port Shanghai China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Screw Conveyor
Material	Stainless Steel	Material Feature	Fire Resistant
Structure	Conveyor System	Load Capacity	12 m3
Place of Origin	Jiangsu, China	Brand Name	JB
Model Number	JB3/5/6/8/10	Voltage	All countries are OK
Certification	CE ISO	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1.Inclined Screw Conveyor with Vibrating Hopper 2.High performance and low price 3.Easy operated 4.High efficiency

Despription:

This Vibrating Screw Charging Machine can convey sorts of material. Combined with the package-machine of our company, it can do material situation tracing. Also can be used separately. Complete machine made in stainless steel, except for the electrical machine, gearing, and the framework.

Characteristics:

lVibrating screw feeding machine is composed of double motor, feeding motor, vibrating motor and each switch control.

lHopper is adjustable and vibrational which make material to be flowing easily. It is good to material.

lHopper is separate from twisting shaft. Structure is reasonable and easily loading and unloading.

lCharacteristic dustproof, bearing won’t be polluted by the dust and powder.

lTo cleanup scrapped materials conveniently and design the machine to be: Discharging the material reversally, storing materials at the bottom of hopper pipe, taking out the whole screw.

Optional Component:

Standard control box

Safety Net

Vibration Sieve

Hopper cover

Dust cover

Blender for anti-bridge

Technical Data:

Model	JB-3	JB-5	JB-6	JB-8	JB-10
Capacity	3 m³/h	5 m³/h	6 m³/h	8 m³/h	12 m³/h
Speed	20-140	20-140	20-140	20-140	20-140
Inverter	optional	optional	optional	optional	optional
Pipe Diameter	φ114mm	φ141mm	φ159mm	φ168mm	Φ219mm
Main power	0.77 KW	1.57 KW	2.26 KW	3.06 KW	4.06 KW
Power	1.52 KW	2.22 KW	3.02 KW	4.02 KW	5.57 KW
Weight	130 kg	170 kg	200 kg	220 kg	270 kg
Hopper volume	200 L	200 L	200 L	200 L	200 L
