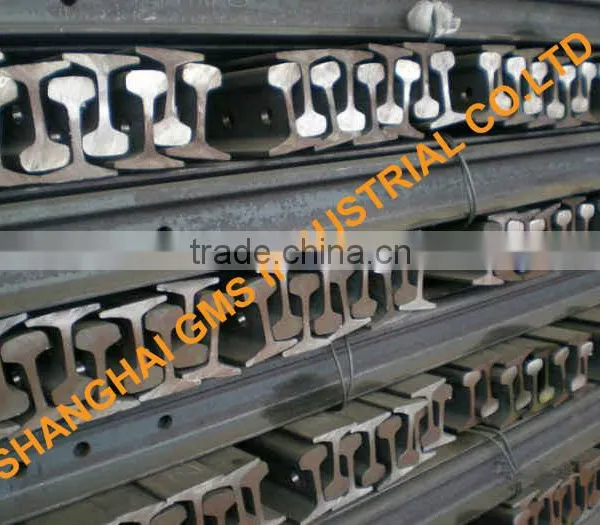

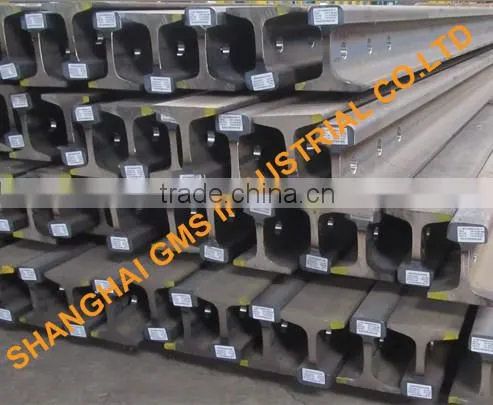

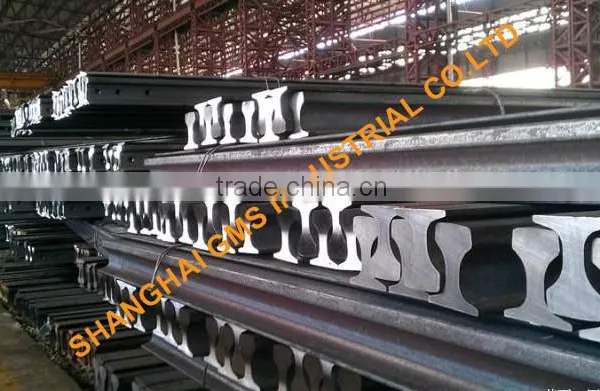

DIN 536 STANDARD STEEL RAIL
Negotiable
MOQ: 1 Ton (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard:
DIN
Place of Origin:
China
Brand Name:
GMS
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BS11:1985 Standard Steel RailNegotiableMOQ: 1 Ton -
STEEL RAILNegotiableMOQ: 20 Tons
-
Steel RailsNegotiableMOQ: 30 Tons
-
ASCE 25 Light Rails/ASCE 30 Light Rails/ASCE 40 Light Rais/ASCE 45 Light Rails/ASCE 60 Light Rails/ASCE 75 Light RailsNegotiableMOQ: 100 Tons
-
ASCE 75 Steel Rail/ASCE 85 Steel Rail/ASCE 90 Steel Rail/ASCE 115 Steel Rail/NegotiableMOQ: 50 Tons
Standard
DIN
Place of Origin
China
Brand Name
GMS
Type
Heavy Rail
Application
Railway Rail
Secondary Or Not
Non-secondary
SIZE: A75, A100, A120, A150
STANDARD: DIN 536
LENGTH: NORMALLY 12 M, OTHER LENGTH IS UPON REQUEST
PACKAGE: 3 BARS PER BUNDLE
STEEL GRADE: MIN. 880N/MM TENSILE STRENGTH. FOR ALTERNATIVE SPECIFICATIONS, THEY ARE TO BE NEGOTIATED.

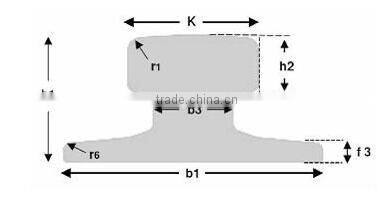

DIMENSION (MM)
Rail |
Kg/mtr |
K |
B3 |
B1 |
H1 |
H2 |
F3 |
R1 |
R6 |
A75 |
56.2 |
75 |
45 |
200 |
85 |
35 |
11 |
8 |
6 |
A100 |
74.3 |
100 |
60 |
200 |
95 |
40 |
12 |
10 |
6 |
A120 |
100.0 |
120 |
72 |
220 |
105 |
47.5 |
14 |
10 |
6 |
A150 |
150.3 |
150 |
80 |
220 |
150 |
50 |
14 |
10 |
6 |
