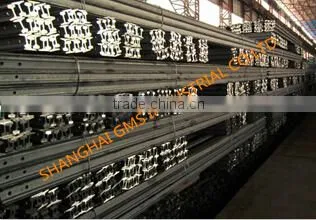

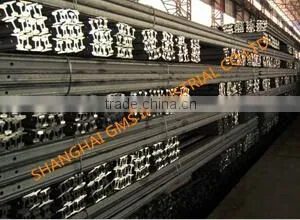

STEEL RAIL

Negotiable MOQ: 20 Tons (Price negotiable depending on order volume and customization)

Key Specifications

Standard:

AISI, ASTM

Grade:

55Q & U71MN & U75VM

Length:

5000mm to 12000mm

Shanghai Gms Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

TIANJIN PORT

Delivery Detail:

Delivery time depends on order quantity.

Standard AISI, ASTM

Grade 55Q & U71MN & U75VM

Length 5000mm to 12000mm

Place of Origin China

Model Number ASCE25---ASCE115

Type Light Rail

Application Railway Rail

Secondary Or Not Non-secondary

Bolt Hole Diameter ASCE STANDARD

Specifications

Prime Newly produced Carbon Light Rail Products, mainly designed for Guide Track for Mine, Construction and Crane & Hoist Track

1. Table of Rail Section
Size (Nom WT)		Standard Sectional Dimension								Length
Per Yard	Per Meter	A	B	C	D	E	F	G	T	Length
ASCE25	(12.2kg)	2 3/4"	2 3/4"	1 1/2"	25/32"	31/64"	1 31/64"	1 29/128"	19/64"	upto 30ft
ASCE30	(15.2kg)	3 1/8"	3 1/8"	1 11/16"	7/8"	17/32"	1 23/32"	1 25/64"	21/64"	upto 40ft
ASCE40	(19.84kg)	3 1/2"	3 1/2"	1 7/8"	1 1/64"	5/8"	1 55/64"	1 71/128"	25/64"
ASCE45	(22.3kg)	93.66mm	93.66mm	50.8mm	26.99mm	16.67mm	50mm	41.67mm	10.72mm
ASCE60	(30.1kg)	4 1/4"	4 1/4"	2 3/8 "	1 7/32"	49/64"	2 17/64"	2.05"	31/64"
ASCE75	(37.2kg)	122.24mm	122.24mm	62.71mm	36.12mm	21.43mm	64.69mm	53.78mm	13.49mm
ASCE85	(42.3kg)	5 3/16"	5 3/16"	2 9/16"	1 35/64"	57/64"	2 3/4"	2 17/64"	9/16"
90ARA-A	(44.64kg)	142.9mm	130.2mm	65.1mm	37.3mm	25.4mm	80.2mm	73.8mm	14.3mm
115AREA	(56.9kg)	6 5/8"	5 1/2"	2 23/32"	1 11/16"	1 1/8"	3 13/16"	2 7/8"	5/8"

2. Chemical Composition & Mechanical Property
Size (Nom WT)		Chemical Composition					Mechanical Property
Per Yard	Billet	C	Si	Mn	P	S	TS (N/mm2)		Elongation (%)
ASCE25	55Q	0.5-0.6	0.15-0.35	0.60-0.90	0.045MAX	0.050MAX	685MIN		6
ASCE30
ASCE40
ASCE45
ASCE60
ASCE75	U71MN	0.65~0.77	0.15~0.35	1.10~1.50	0.04MAX	0.04MAX	880MIN		8
ASCE85
90ARA-A
115AREA
ASCE75	U75VM	0.71-0.80	0.50-0.80	0.70-1.05	0.040MAX	0.040MAX	980MIN		9
ASCE85
90ARA-A
115AREA
