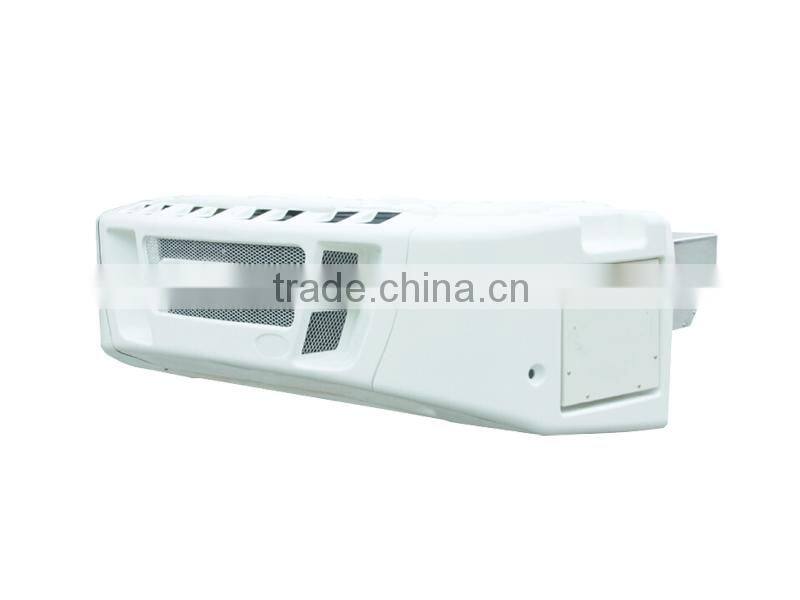

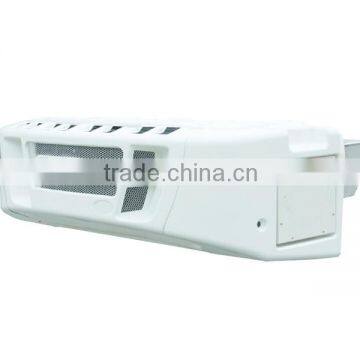

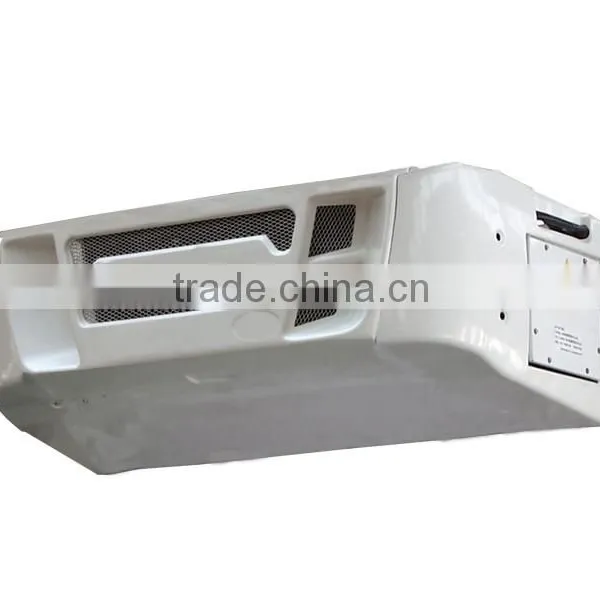

TKT-700s dc 12v refrigeration system for truck
Introduction to dc 12v refrigeration system for truck:
TKT-700S is specialized for 25-35m3 refrigerated truck body to keep fresh, powered by sub engine and standby. It can greatly reduced the equipment failure probability. Two kinds of driven models ensure the normal working condition. It has great advantages in fuel saving, environmental and highly efficient.
1. Stream Line Design to Apply All Kinds of Van Appearance & Truck Body;
2. Big Cooling Capacity & Reliable Performance to Stand Against Hot & Dusty Climatic Condition;
3. Installed with many kinds of safety protection devices;
4. With standard configuration and control assembly;
5. Two kinds of driven model: sub engine and standby;
6. 36 Months Warranty Time After Delivery;
Technologicald data of dc 12v refrigeration system for truck:
| TECHNICAL DATA | |||||
| NO. | Items | Data | |||
| 1 | Product Name | Independent Truck Refrigeration Units -- TKT-700S | |||
| 2 | Type | Vehicle Engine Driven Compressor | |||
| 3 | Structure | Truck Body, Front Mounted Installation | |||
| 4 | Controller | Digital, In Cab | |||
| 5 | Refrigerant | R404a | |||
| 6 | Air Volume | 2350m3/h | |||
| 7 | Weight | 415KG | |||
| 8 | Application Scope | 25-35m3 | |||
| 9 | Drive Model | Sub Engine | |||
| Standby | |||||
| 10 | Engine | Brand | Perkins | ||
| Model | 402D-05 | ||||
| Displacement | 0.51L | ||||
| Number of cylinder | Water cooling/2 cylinder | ||||
| 11 | Compressor | Model | FK30/235TK | ||
| Displacement | 233 | ||||
| Number of cylinder | 2 | ||||
| 12 | Dimension | Overall | 1795*795*555mm | ||
| Evaporator hole size | 1245*310mm | ||||
| 13 | Cooling Ability | Temp Range | 0℃/+30℃ | -20℃/+30℃ | |
| Sub Engine | 6090w | 3450w | |||
| Standby | 4850w | 2700w | |||

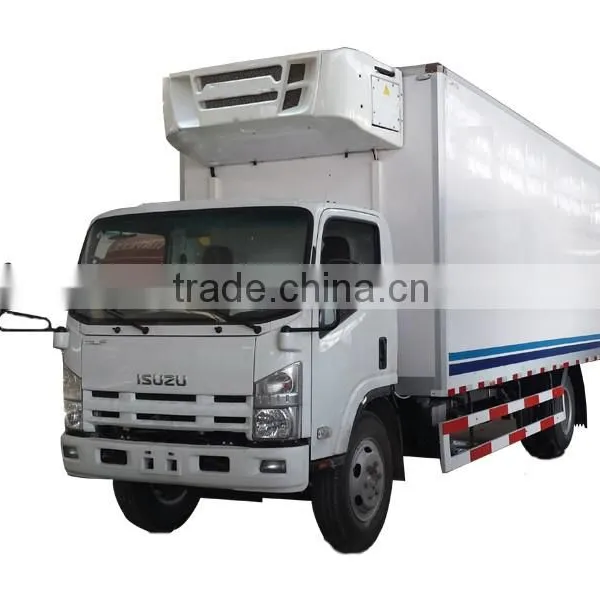

Photos of dc 12v refrigeration system for truck:
Pre-sale:
(1) Professional suggestions (model selection ,technical solution , installation training…)
(2) Device model choice (recommend the best product according to vehicle model, temperature rating, the container volume…)
(3) 24 hours service.
(4) Welcome to visit our factory and production line anytime.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time.
(2) Quality supervision.
(3) Product acceptance.
(4) Shipping on time.
After-sale:
(1) Installation guide for free.
(2) within the warranty period: spare parts are provide freely.
(3) Technical support the whole using life.
In China, we have been manufacturing high quality products as an OEM to Yutong Bus and CIMC company since 1998. We are the most influential manufacturer of bus and refrigerated truck in China. Until now, our products have begun to be introduced to 65 countries in Europe, Asia, North America, South America and Africa, earning high reputation and sustainable growth in all markets.
Q:Why choose our product?
A:TKT, as the first and leading manufacturer of bus air conditioner and truck refrigeration in China, has devoted to producing reliable, efficient and economical bus air conditioner and truck refrigeration for the world.
Q:What are your products certified ?
A:All products have CE and ISO9001:2008 identification.
Q:How about installation training?
A:Professional engineers training can be offered.
Q:How long is your products warranty?
A:36 months warranty is available.
Q:How many countries have your products been exported to?
A:Until now, our products have begun to be introduced to 65 countries in Europe, Asia, North America, South America and Africa, earning high reputation and sustainable growth in all markets.
