Engine Driven Truck Freezer Unit

Engine Driven Truck Freezer Unit thumbnail-1
Engine Driven Truck Freezer Unit photo-1
US$ 2,200 - 2,600 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
TKT
Model Number:
TKT-800F
Contact Supplier Request Quote Chat Now
Henan Modern International Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin / Qingdao / Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name TKT
Model Number TKT-800F
Size Condenser: 1265*555*415mm Evaporator:1016*635*230mm
Type Other, truck freezer unit
Car Make van / truck refrigerated box
OE NO. Standard

  Engine driven truck freezer unit

Product Description



   TKT-800F thermoking truck freezer unit is specialized for mid size truck body to keep frozen, powered by the engine of the vehicle, and Stand-by Units is Optional. It has great advantage in Fuel Saving, Environmental and Highly Efficient.



1.Exclusive Design for Refrigerated Truck Body Up to 34CBM(-20 ℃) & 44CBM(0℃) to Keep Frozen;

2.Stream Line Design to Apply All Kinds of Truck Body;

3.Big Cooling Capacity & Reliable Performance to Stand Against Hot & Dusty Climatic Condition;

4.Easy Installation & Operation;

5. Environment Friendly;

6.36 Months Warranty Time After Delivery.



TECHNICAL  DATA of truck freezer unit:



TECHNICAL  DATA

NO.

Items

Data

1

Product Name

Truck Refrigeration Units-- TKT-800F(Frozen)

2

Type

Vehicle Engine Driven

3

Structure

Truck Body, Front Mounted

4

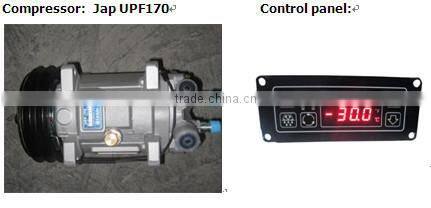

Compressor

Jap UPF170

5

Controller

Digital, In Cab

6

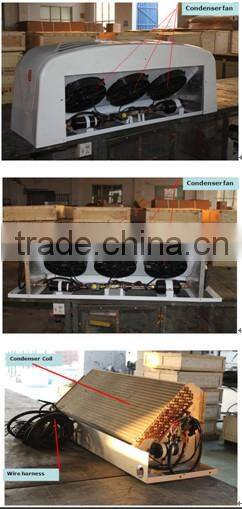

Condenser

Coil

Copper Tube & Aluminum Fin

Fan

Three Motors & Three Fans (DC12V/24V)

Dimension

1265*555*415 mm

Weight

63KG

7

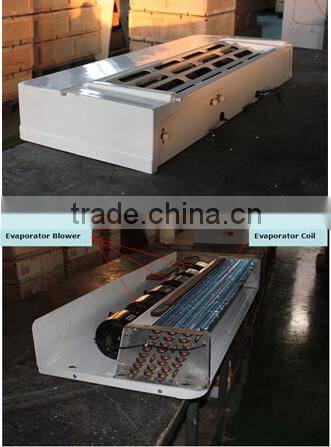

Evaporator

Coil

Copper Tube & Aluminum Fin

Fan

Three Motors & Three Fans (DC12V/24V)

Air Flow

4100  m3/h

Dimension

1016*635*230 mm

Weight

34KG

8

Defrost

Automatic Hot Gas Defrost

9

Refrigerant

HFC-404A, 3.0-3.2KG

10

Installation Kits

Rubber Hoses, Drain Water Hoses, Wiring Harness Etc

11

 Cooling Capacity

(Ambient 38Deg/100.4F)

-20Deg--4160 W(14190BTU/ 3580 Kcal ), Apply Up to 34 m3, Frozen

0 Deg---7475W(25500 BTU/ 6430 Kcal ), Apply Up to 44 m3, Frozen

12

Total Weight

116KG



Optional:

A. 110V/220V/380 Stand By Units is Acceptable;

B. Heating Performance is Acceptable;

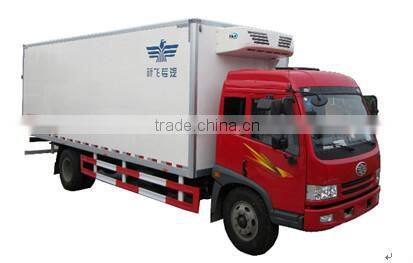

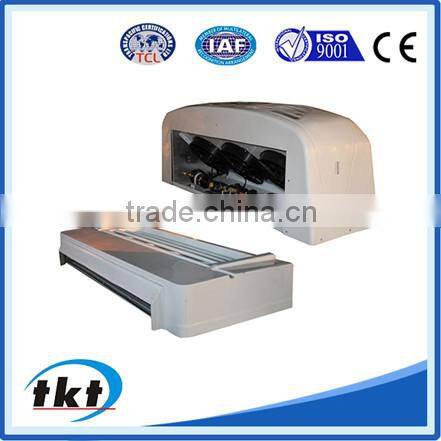

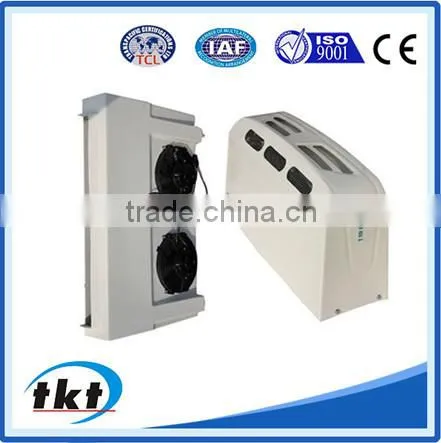

Pictures of truck freezer unit:







Engine driven truck freezer unit









Engine driven truck freezer unit







Engine driven truck freezer unit









Engine driven truck freezer unit









Engine driven truck freezer unit



















Packaging & Shipping







Packaging in wooden crates / carton / iron racks.

The dimension of Condenser is1315X465X605MM ,the dimension of Evaporator is 1530X690X270MM.

Shipping by sea.



Our Services

  36 Months Warranty Time after Delivery.
