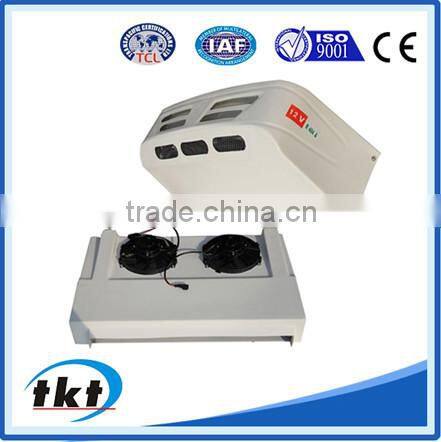

ISO certified mini cooling unit for trucks

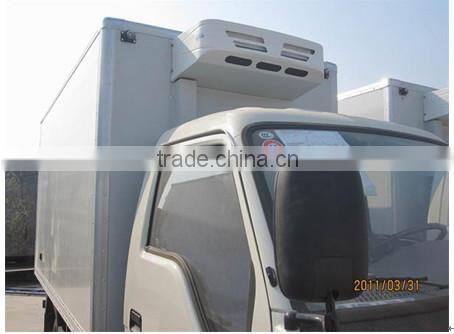

TKT-400F is specialized for small refrigerated truck body to keep frozen, powered by the engine of the vehicle, and it has great advantages in Fuel Saving, Environmental and Highly Efficient.
1.Exclusive Design for Refrigerated Truck Body Up to 14CBM(-20 ℃) & 26CBM(0℃) to Keep Frozen;
2.Stream Line Design to Apply All Kinds of Truck Body;
3.Big Cooling Capacity & Reliable Performance to Stand Against Hot & Dusty Climatic Condition;
4.Easy Installation & Operation;
5.Environment Friendly;
6.36 Months Warranty Time After Delivery.
Technological data of mini cooling unit:
TECHNICAL DATA | |||
NO. |
Items |
Data |
|
1 |
Product Name |
Truck Refrigeration--TKT-400F(Frozen) |
|
2 |
Type |
Vehicle Engine Driven |
|
3 |
Structure |
Truck Body, Front Mounted |
|
4 |

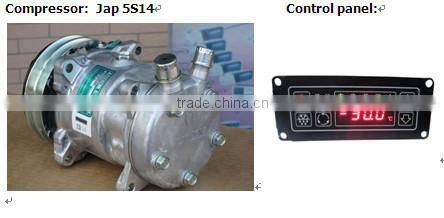

Compressor |
Jap SD5S14 |
|
5 |
Controller |
Digital, In Cab |
|
6 |
Condenser |
Coil |
Copper Tube & Aluminum Fin |
Fan |
Two Motors & Two Fans (DC12V/24V) |
||
Dimension |
924*430*295 mm |
||
Weight |
42KG |
||
7 |

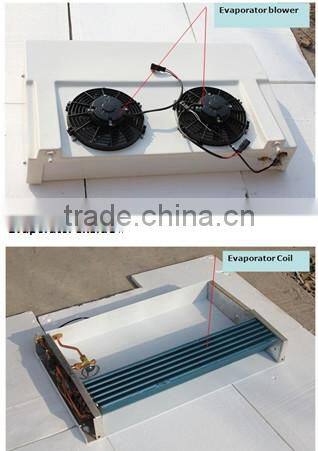

Evaporator |
Coil |
Copper Tube & Aluminum Fin |
Fan |
Two Motors &Two Fans (DC12V/24V) |
||
Air Flow |
2900 m3/h |
||
Dimension |
510*850*138 mm |
||
Weight |
26KG |
||
8 |
Defrost |
Automatic Hot Gas Defrost |
|
9 |
Refrigerant |
HFC-404A, 1.4-1.5KG |
|
10 |
Installation Kits |
Rubber Hoses, Drain Water Hoses, Wiring Harness etc |
|
11 |
Cooling Capacity (Ambient 38Deg /100.4F) |
-20Deg --2000W(6824 BTU/ 1720Kcal), Apply Up to 14 m3, Frozen |
|
0Deg---5650W( 19290BTU/ 4865 Kcal ), Apply Up to 26 m3, Frozen | |||
12 |
Total Weight |
89KG |
|
|
Optional: |
A. 110V/220V/380V Stand By Units is Acceptable; B. Heating Performance is Acceptable; |
|

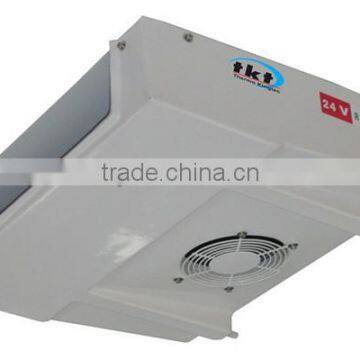

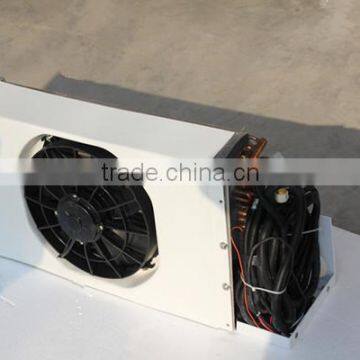

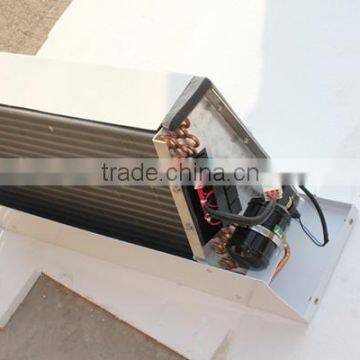

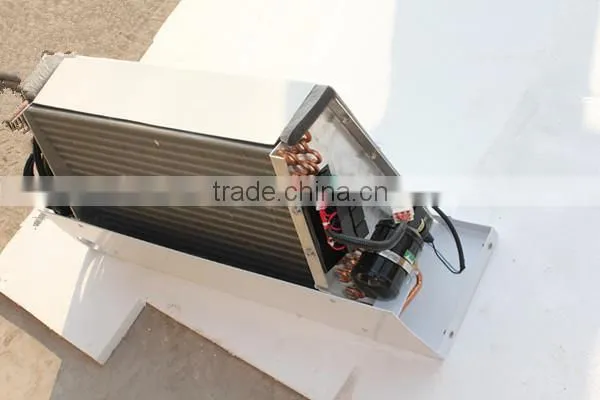

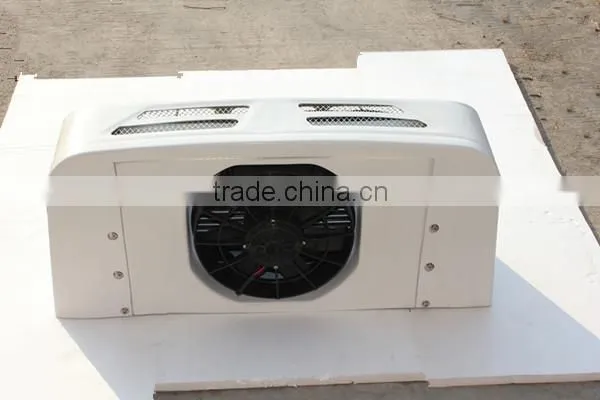

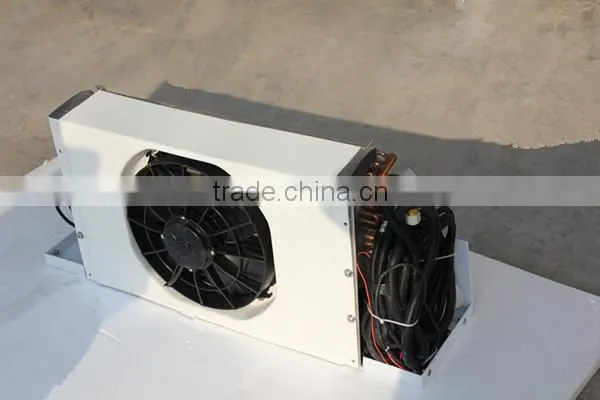

Pictures of mini cooling unit:
Packaging in wooden crates / carton / iron racks.

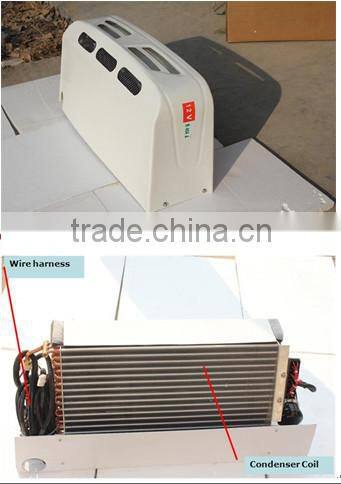

The dimension of Condenser is975X310X480MM ,the dimension of Evaporator is 750X650X230MM.
Shipping by sea.
Pre-sale:
(1) Professional suggestions (model selection ,technical solution , installation training…)
(2) Device model choice (recommend the best product according to vehicle model, temperature rating, the container volume…)
(3) 24 hours service.
(4) Welcome to visit our factory and production line anytime.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time.
(2) Quality supervision.
(3) Product acceptance.
(4) Shipping on time.
After-sale:
(1) Installation guide for free.
(2) within the warranty period: spare parts are provide freely.
(3) Technical support the whole using life.
In China, we have been manufacturing high quality products as an OEM to Yutong Bus and CIMC company since 1998. We are the most influential manufacturer of bus and refrigerated truck in China. Until now, our products have begun to be introduced to 65 countries in Europe, Asia, North America, South America and Africa, earning high reputation and sustainable growth in all markets.
Q:Why choose our product?
A:TKT, as the first and leading manufacturer of bus air conditioner and truck refrigeration in China, has devoted to producing reliable, efficient and economical bus air conditioner and truck refrigeration for the world.
Q:What are your products certified ?
A:All products have CE and ISO9001:2008 identification.
Q:How about installation training?
A:Professional engineers training can be offered.
Q:How long is your products warranty?
A:36 months warranty is available.
Q:How many countries have your products been exported to?
A:Until now, our products have begun to be introduced to 65 countries in Europe, Asia, North America, South America and Africa, earning high reputation and sustainable growth in all markets.
