Front Mounted Installation truck van bodies refrigeration units

FOB Price

USD $13,000 - $15,000 / Unit

1 Unit(Min.Order)

Supply Ability 500 Unit / Units per Month
Port Shanghai/Qingdao/Tianjin
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Type:	Other, Independent truck refrigeration unit	Place of Origin:	Henan, China	Brand Name:	TKT
Model Number:	TKT-1000S	Certification:	CE, ROHS	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Diesel engine driven truck refrigeration units

Product Description

Introduction to truck van bodies refrigeration units :

Thermo Kingtec TKT-1000S series units are designed for fresh,frozen&deep frozen applications on the 35-55m3 large sized refrigerated trucks,which are designed for use with totally chlorine-free R404A refrigerant,powered by special clean&silent diesel engine,which provides maximum cab clearance and reduced truck body height on conventional chassis,it has distinct advantages of cooling fastly,excellent heat dissipation,high efficiency&stable performance&easy installation.

Technological data of truck van bodies refrigeration units :

TECHNICAL DATA
NO.	Items	Data
1	Product Name	Independent Truck Refrigeration Units -- TKT-1000S
2	Type	Vehicle Engine Driven Compressor
3	Structure	Truck Body, Front Mounted Installation
4	Controller	Digital, In Cab
5	Refrigerant	R404a
6	Air Volume	2580m3/h
7	Weight	495KG
8	Application Scope	35-55m3
9	Drive Model	Sub Engine
		Standby
10	Engine	Brand		Perkins
		Model		403D-07
		Displacement		0.76L
		Number of cylinder		Water cooling/3 cylinder
11	Compressor	Model		FK40/390TK
		Displacement		385
		Number of cylinder		4
12	Dimension	Overall		1825860630mm
		Evaporator hole size		1245*350mm
13	Cooling Ability	Temp Range	0℃/+30℃		-20℃/+30℃
		Engine	7925w		5165w
		Standby	6515w		4490w

STANDARD COMPONENTS

Clean and silent diesel engine

High efficiency compressor

Automatic cooling by temperature control system

In-cab remote display and control

Secure and dependable protection system

Automatic defrost system

Programmable temperature control

Highly efficient and quick defrost system

Automatic hot gas defrost

Electrical standby outlet box

Compartment front mounted screen

Type condenser

DEFROST

Automatic hot gas defrost

LOW MAINTENANCE RATE

12V Alternator

Dry model air cleaner

Rotary air filter element

Highly efficient tube oil filter

SAFETY PROTECTION DEVICE

Emergency switch management protection

Heat protection

System high pressure protection

System low pressure protection

Liquid injection protection

Engine oil pressure protection

Engine water temperature protection

Engine speed protection

Standby electrical over load protection

Load protection

CLEAN AND SILENT DIESEL ENGINE

original diesel engine

HIGH EFFICIENCY COMPRESSOR

BOCK FK235

ELETRIC MOTOR

Standby options:

230v/3phase 50Hz

400v/3phase 50Hz

415v/3phase 50Hz

230v/3phase 60Hz

240v/3Phase 60Hz

450v/3phase 60Hz

OPERATION CONTROL COMPONENTS

Microcomputer control system

Digital/manual defrost

Digital display

Fahrenheit or Celcius displays of set point temperature,air return temperature,data setting parameters&alert.

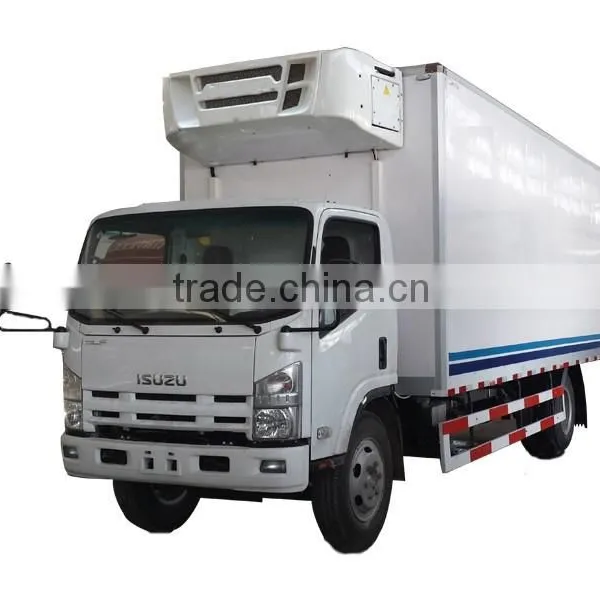

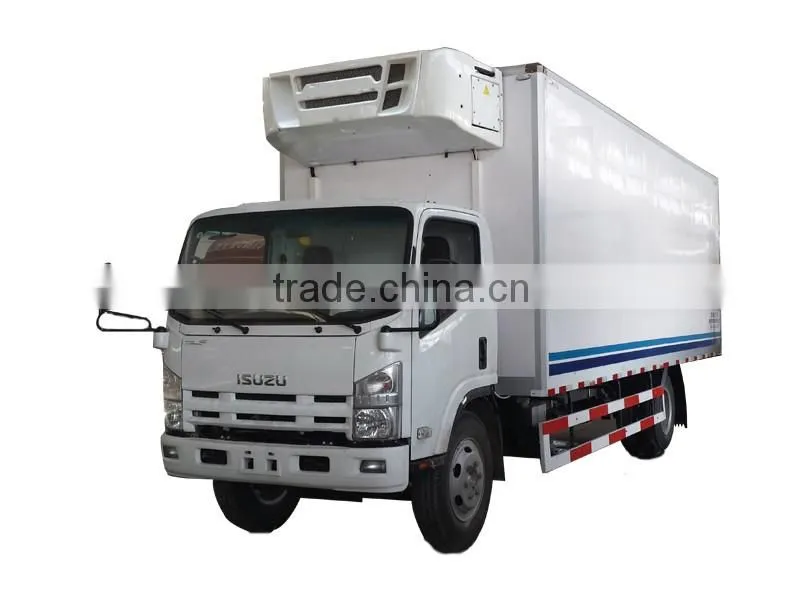

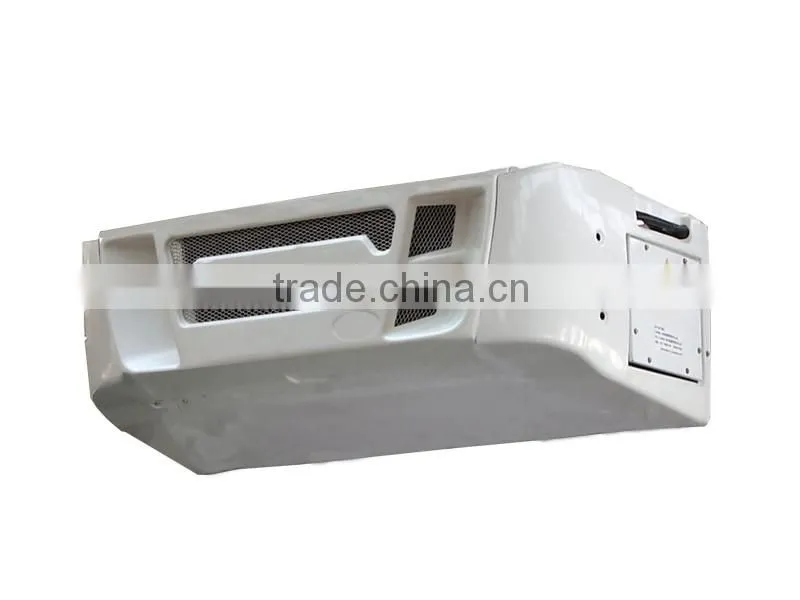

Product Photos of truck van bodies refrigeration units :

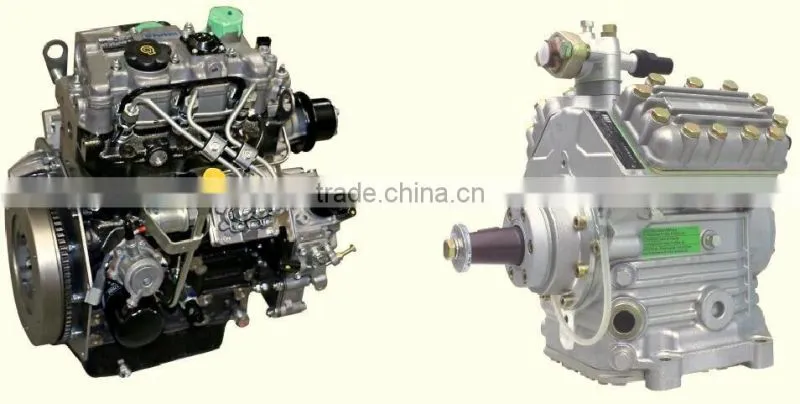

Engine&Bock Compressor:

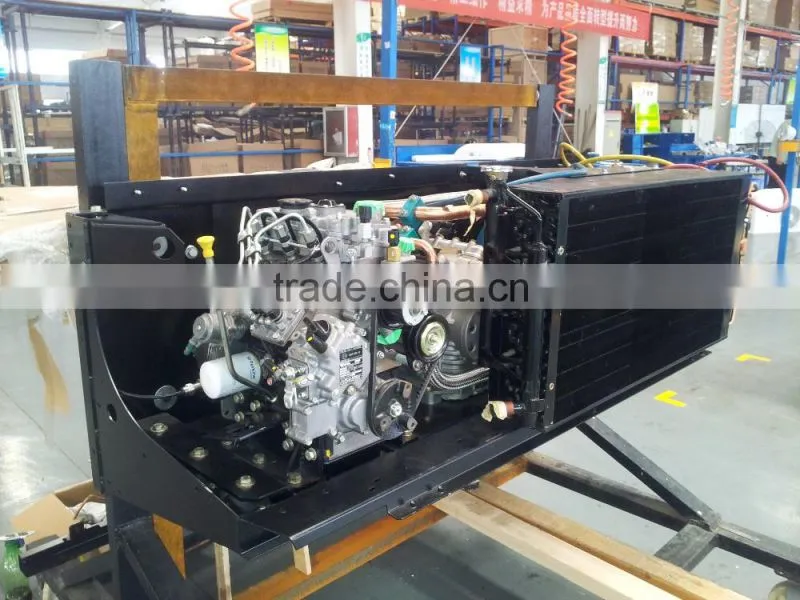

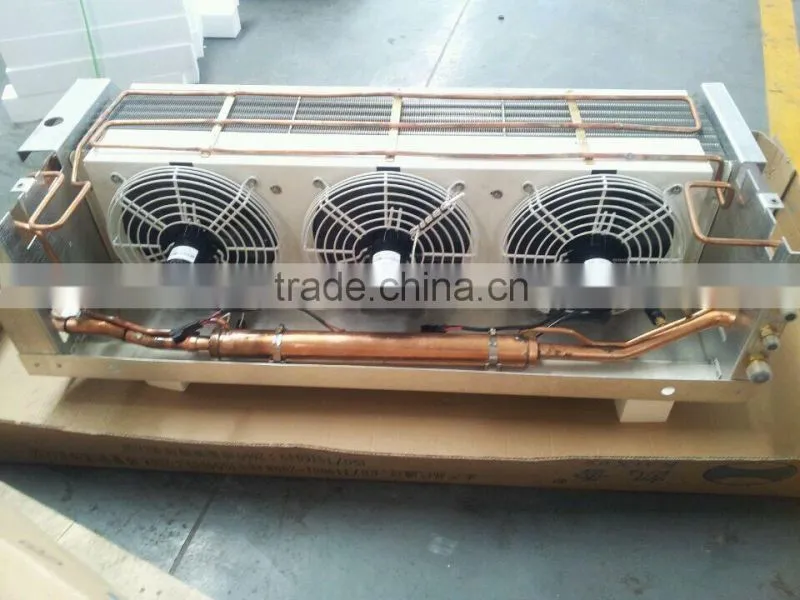

Factory Production Lines Photos:

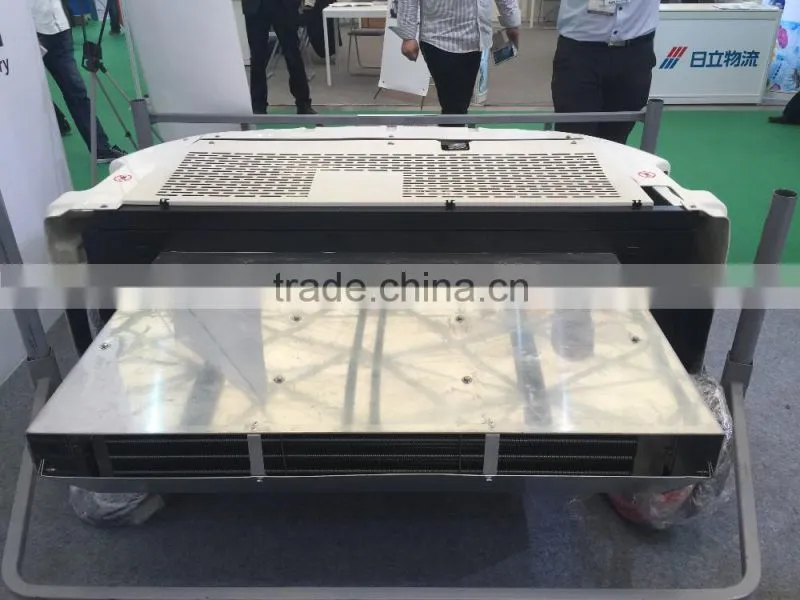

Installing photos:

Packaging & Shipping

Company Information

In China, we have been manufacturing high quality products as an OEM to Yutong Bus and CIMC
company since 1998. We are the most influential manufacturer of bus and refrigerated truck in
China. Until now, our products have begun to be introduced to 65 countries in Europe, Asia,
North America, South America and Africa, earning high reputation and sustainable growth in all
markets.

Our Services

Pre-sale:
(1) Professional suggestions (model selection ,technical solution , installation training…)
(2) Device model choice (recommend the best product according to vehicle model, temperature
rating, the container volume…)
(3) 24 hours service.
(4) Welcome to visit our factory and production line anytime.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time.
(2) Quality supervision.
(3) Product acceptance.
(4) Shipping on time.
After-sale:
(1) Installation guide for free.
(2) within the warranty period: spare parts are provide freely.
(3) Technical support the whole using life.

FAQ

Q:Why choose our product?
A:TKT, as the first and leading manufacturer of bus air conditioner and truck refrigeration in
China, has devoted to producing reliable, efficient and economical bus air conditioner and
truck refrigeration for the world.

Q:What are your products certified ?
A:All products have CE and ISO9001:2008 identification.

Q:How about installation training?
A:Professional engineers training can be offered.

Q:How long is your products warranty?
A:36 months warranty is available.

Q:How many countries have your products been exported to?
A:Until now, our products have begun to be introduced to 65 countries in Europe, Asia, North
America, South America and Africa, earning high reputation and sustainable growth in all
markets.
