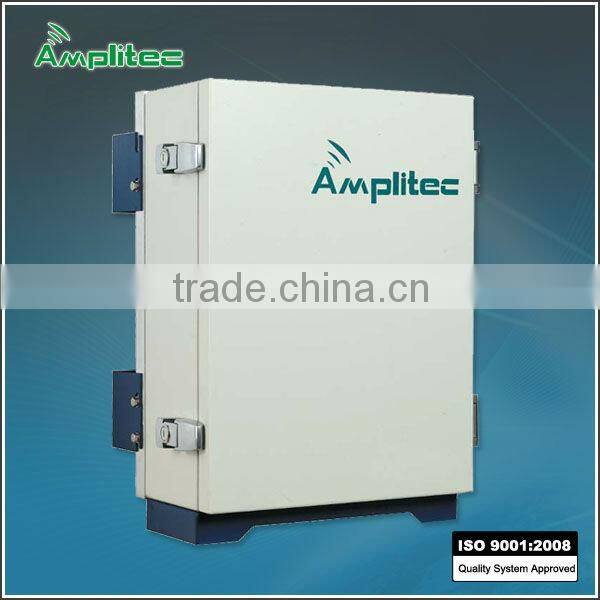

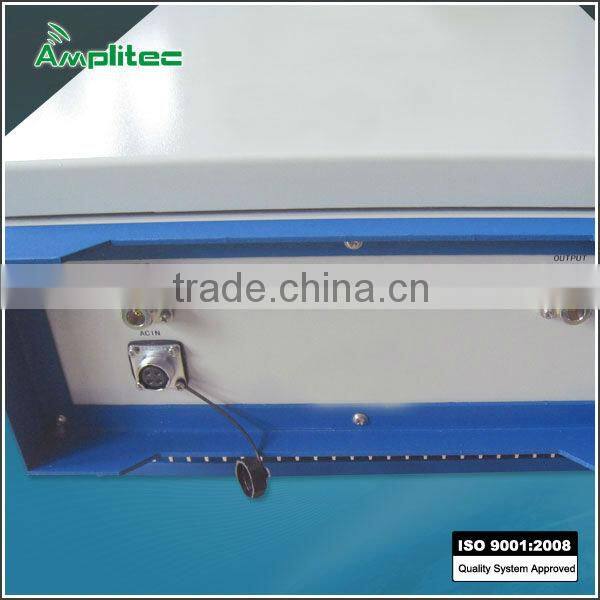

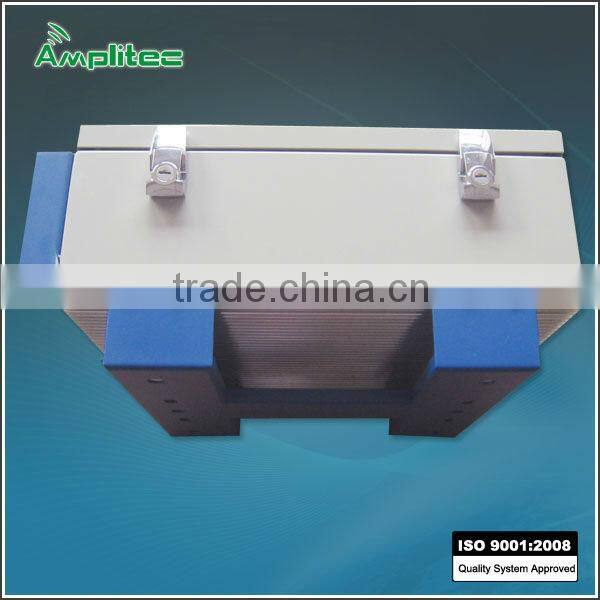

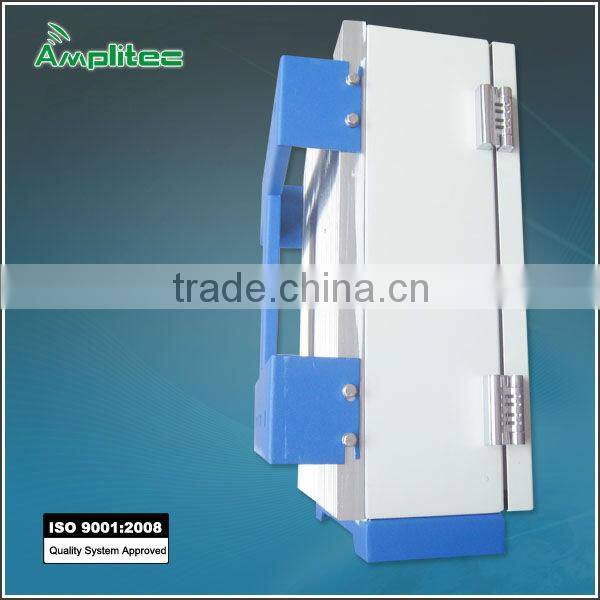

Product Name: W30T Band Selective GSM & DCS Dual Band Outdoor Repeater
Product Model: W30T-GD(02)
Product Code: CXT1011-206
- Provide quick coverage solution for weak & blind GSM & DCS mobile signal zones, reduce drop/off calls.
- Elegant design and easy installation.
- Suit for one or tow systems simultaneously.
- Use advanced high linear IF saw filter technology.
- Low consumption, low interference to BTS, high linear design and efficient fashion heat dissipation system.
- Reduce cellphone transmit pwoer and radiation, extend cellphone battery life.
- Use advanced high linear IF saw filter technology.
- ALC can limit output power to ensure stable AWS cell phone signal coverage.
- MCG(Manual Gain Control) function, by 1dB/step to make the 900 & 1800Mhz network signal coverage more flexible.
- Can be controlled and monitored, via RS232 connects to PC for local control, via GSM modem connects to PC for remote control.
- Apply to approximate 14000-32000 square meters coverage.
- Perfect Outdoor Repeater solution of GSM & DCS mobile signal extender.
1) AC power cord(EU standard/ US standard/UK standard/ SA standard/China standard,etc) 1PCS
2) Installation kit 1PCS
3) User manual 1PCS

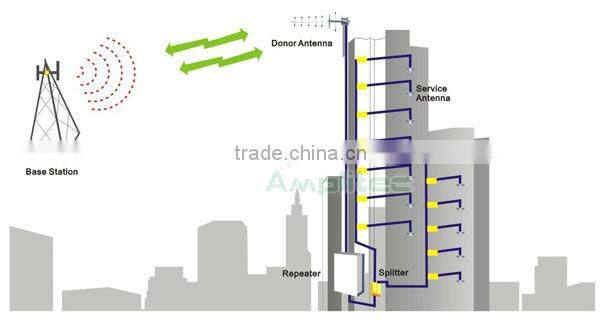

1) Donor antenna: Outdoor Panel Antenna (14dBi, 824-960Mhz/ 1710-2500MHz)
2) Service antenna: Omni Ceiling Antenna (2dBi@824-960MHz, 4.7dBi@1710-2500MHz)
3) 7/8" RF cable with connecter (Cable length optional)
4) Splitter, coupler
1)Output power 30dBm, 2 sub bands in any one of GSM, DCS sytem with OMT software.
2)Repeater models: W30T-GD(02)
Items |
Uplink | Downlink | |
| Frequncy Rage | GSM | 890-915 MHz | 935-960 MHz |
| DCS | 1710-1785 MHz | 1805-1880 MHz | |
| Bandwidth | Available upon request | ||
| Gain | 75 ± 2dB | 80 ± 2dB | |
| Output Power | 20 ± 2dBm | 30 ± 2dBm | |
| Local Control or RemoteControl | 1. Repeater Info 2. Alarm Enable 3. UL & DL Attenuation( UL & DL Manual Gain Control) 4. PA ON/OFF (Power Amplifier ON/OFF) 5. UL & DL Output High Power Alarm Level Limit. 6. DL Insufficient Output Power Alarm Level Limit. 7. Temperature Alarm Level(UL & DL Temperature Alarm Level Limit). |
||
| Local Monitoring or Remote Monitoring | 1. UL & DL Over Output Alarm. 2. UL & DL Over Temp Alarm. 3. UL & DL PA Failure Alarm. 4. Power Supply Alarm. |
||
| Alarm LED | Nomal | • Green | |
| Alarm | • Red | ||
| Power Consumption | <60W | ||
| Power Supply | AC:220V/50Hz | ||
| RF Connector | N-Female | ||
| Weight | ≤ 40kg | ||
| Size | 305 × 268 × 93 mm | ||
| Environment condition | IP65 | ||
Amplitec Corporation, a manufacturer was established in 2005 year, is in the forefront of Wireless revolution. With solid track record of successful development and deployment of advanced radio communication technologies, Amplitec is enabling operators worldwide for transition to a phenomenon of "seamless coverage".
Amplitec develops reliable indoor and outdoor coverage and optimization mobile signal repeater and booster's solutions for offices, restaurants, hotels, commercial centers, countryside, residential areas,tourist resorts, and stadiums on various GSM850, GSM900, GSM1800, GSM1900, CDMA800 PCS1900, IDEN, EGSM networks as well as WCDMA, 3G and TD-SCDMA systems.
