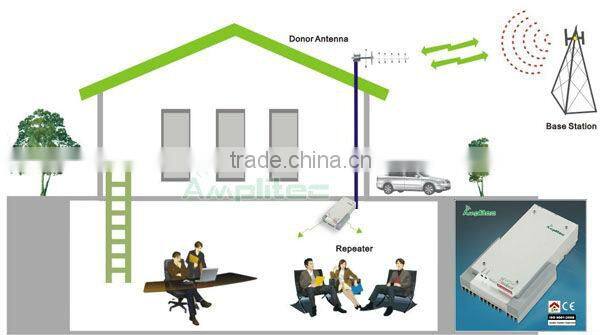

Product Name: Built-in GSM Cell Phone Repeater/ RF Band Selective repeater for home & office
Product Model: W15A-GSM(01)
Product Code: CXT1106-005
- Intelligent design, with built-in service antenna.
- Provide quick coverage solution for weak & blind GSM 900 MHz mobile signal zones, reduce drop/off calls.
- Compact size, micro, elegant design, easy installation and operation.
- High gain, Low consumption, low interference to BTS.
- Lowers GSM cell phone power emissions and extends phone battery life.
- Use advanced high linear IF saw filter technology.
- ALC can limit output power to ensure stable GSM cell phone signal coverage.
- MCG(Manual Gain Control) function, 1-25dB(1dB/step) )to ensure flexible GSM network coverage.
- Perfect Indoor Repeater solution of GSM 900MHz mobile signal extender.
1) DC9V/3A poer supply 1PCS
2) AC power cord(EU standard/ US standard/UK standard/ SA standard/China standard, etc) 1PCS
1) Donor antenna: Log Periodic Dipole Aantenna (8.2dBi@806-960MHz)
2) 1/2"RF cable with connector (Cable length to optional )
1) Output power for 15dBm,1-sub band in any one of GSM, WCDMA system .
2) Repeater models:W15A-GSM(01), W15A-WCDMA(01).
Items |
Uplink | Downlink | |
| Frequncy Rage | GSM | 890-915 MHz | 935-960 MHz |
| Bandwidth | Availale upon request | ||
| Gain | 65 ± 2dB | 65 ± 2dB | |
| Output Power | 10 ± 2dBm | 15 ± 2dBm | |
| AlC not Active | - | • Green | |
| ALC Acive 5-10dB | - | • Orage | |
| ALC Active 15-20dB | - | • Red | |
| Power Consumption | < 25W | ||
| Power Supply | DC:9V/3A | ||
| RF Connector | N-Female | ||
| Weight | ≤ 2.5kg | ||
| Size | 220 × 140 × 60 mm | ||
| Environment condition | IP40 | ||
Amplitec Corporation, a manufacturer was established in 2005 year, is in the forefront of Wireless revolution. With solid track record of successful development and deployment of advanced radio communication technologies, Amplitec is enabling operators worldwide for transition to a phenomenon of "seamless coverage".
Amplitec develops reliable indoor and outdoor coverage and optimization mobile signal repeater and booster's solutions for offices, restaurants, hotels, commercial centers, countryside, residential areas,tourist resorts, and stadiums on various GSM850, GSM900, GSM1800, GSM1900, CDMA800 PCS1900, IDEN, EGSM networks as well as WCDMA, 3G and TD-SCDMA systems.
If this Built-in GSM Cell Phone Repeater/ RF Band Selective repeater for home & office or any other cell repeaters meet your required, please feel free to contact with us.
More detail please visit our official website:
Contact: Jason
Skype ID: LJC_Amplitec
