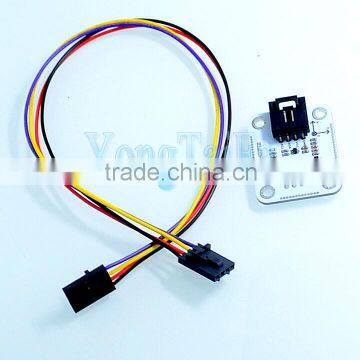

LSM303DLH 3D Compass and Accelerometer Module
US$ 9.17 - 10.83
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
YTF
Model Number:
LSM303DLH
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
USB 32 Way Servo Controller Servo Control Board V4.7 Support PS2 ControllerUS$ 23.83 - 28.17MOQ: 1 Piece -
Raspberry Pi 3 Model B Board+black Shell Heat Sinks 1GB LPDDR2 Quad-Core WiFi&BluetoothUS$ 45 - 46MOQ: 1 Piece
-
SIM800L V2.0 5V Wireless GSM GPRS MODULE Quad-Band W Antenna Cable CapUS$ 12.5 - 14.5MOQ: 1 Piece
-
845HN-2C-C-24VDC Power Relay in Stead of RT424024 24VUS$ 9 - 12MOQ: 1 Piece
-
New and Original Relay JV24S-KT 24V 5A 4pinUS$ 7.35 - 10MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
YTF
Model Number
LSM303DLH
FOR Arduino LSM303DLH 3D Compass and Accelerometer Module
Overview:
The LSM303DLH combines a digital 3-axis accelerometer and 3-axis magnetometer into a single package that is ideal for making a tilt-compensated compass. The six independent readings, whose sensitivities can be set in the ranges of ± 2 to ± 8 g and ± 1.3 to ± 8.1 gauss, are available through an I2C interface. The LSM303DLH is a great IC, but its small package makes it difficult for the typical student or hobbyist to use. This LSM303 carrier board includes voltage regulators and a level-shifting circuit that allows operation from 3V to 5.5 V, and the anti-reverse connector makes it easy to connect with Arduino sensor shield.
The module includes two voltage regulators that provide the 1.8 V and 3 V required by the LSM303, which allows the sensor to be powered from a single 3.3V- 5.5 V supply. The breakout board also includes a circuit that shifts the I2C clock and data lines to the same logic voltage level as the supplied VCC, making it simple to interface the board with 3.3 V or 5 V systems.
This sensor is a carrier / breakout module for the ST L3GD20 three-axis gyroscope, which measures the angular rates of rotation about the pitch (x), roll (y), and yaw (z) axes. Angular velocity measurements with a configurable range of ± 250 ° / s, ± 500 ° / s, or ± 2000 ° / s can be read through a digital I2C or SPI interface. The board has a 3.3 V linear regulator and integrated level-shifters that allow it to work over an input voltage range of 3.3V-5.5 V. The 0.1 "pin spacing making it easy to use with Arduino.
