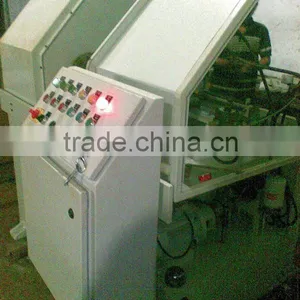

Copy Lathe Machine

Name: Copy Lathe Machine
Brand: GAMUT
SKU: 112863555
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Gamut Machine Tools

Payment & Shipping

Payment Methods:

Port of Shipment:

NHAVA SHEVA

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not Normal

Place of Origin Maharashtra, India

Brand Name GAMUT

Model Number GAMUT-1

Specifications

BOOST YOUR PRODUCTION AND IMPROVE YOUR QUALITY

GAMUT Copy Lathe Machines are suitable for job where simultaneous Facing and OD Turning or OD Turning and lD Turning or Facing and lD Turning required excluding holding portion. Mostly these machines are used on Tie Rod Housing, Gear Blanks, Sprockets, and Bearings etc. Machines are suitable for mass production of items economically. Machines are highly productive with ease in operation and maintenance.

TECHNICAL SPECIFICATION FOR COPYING LATHE


	SINGLE AXIS COPYING LATHE
MODEL		GAMUT 1	GAMUT 2
Max. Turning Diameter		200 mm	200 mm
Max. Turning Length		300/500 mm	300/500 mm
Admit Between Centres (max.)		500/700 mm	500/700 mm
SPINDLE
Taper in Spindle		A2-4	A2-5
Spindle Bore		38 mm	50 mm
Spindle RPM		2000	2000
Spindle Motor		5 HP	7.5 HP
COPYING SLIDE
Stroke		60/90 mm	90 mm
Tool Cross Section		25x25 mm	25x25 mm
Theoretical Thrust		190/300 kg	300 kg
TAIL STOCK
Max. Travel of Quill		75 mm	75 mm
Taper in Quill Bore		MT3	MT4
HYDRAULICS
Tank Capacity		90 Ltrs.	90 Ltrs.
Pump Capacity		20 lpm	20 lpm
Motor		2 HP	2 HP
APPROXIMATE DIMENSIONS
Length		1350 mm	1600 mm
Width		1100 mm	1100 mm
Height		1500 mm	1500 mm
'Specifications Subject to alteration without notice.
