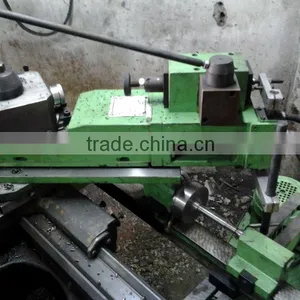

BOOST YOUR PRODUCTION AND IMPROVE YOUR QUALITYGAMUT Hydraulic Copy turning Face copying & Copy boring. GAMUT LATHE TRACERS are made by Graded Casting and have been Robustly constructed to take maximum cut with hardened tool post and very sensitive and precise Copy-Valve to render trouble free longer service. GAMUT TRACERcan be mounted at rear or front of a lathe machine and can be operated by semi-skilled personnel. Inspectiontime is drastically reduced and productionis increased by many times within accuracyof ±0.025mm when use good machining condition.
Features
- In-built Lubrication System for Tracing Slide.
- 6-Station Servo-actuated Turret for multicut operation (Optional item at extra cost).
- Hardened Tool post with Quick Change Tool Holder.
- Finish cut system from 0-1.5 mm. Tool get advance automatically in finish cut mode.
- Forward and retraction of slide and finish cut operation done manually by single operating handle. Electric push botton remote control at extra cost.
- Master carrier for round master and Flat Template Holder (optional at extra cost) can be set easily having arrangement for longitudinal and axial movements.
- Power pack having Dual Delivery pump, Oil level indicator, special isolator valve for pressure gauge and filters.
Technical Specification
MODEL |
5660 |
7090 7014 |
1014 |
1020 |
Stroke of Tracing Slide in mm |
60 |
90 140 |
140 |
200 |
Minimum centre Height from top of cross slide in mm |
|
|
135 |
135 |
Max.Dia of Round master in mm |
90 |
90 90 |
200 |
200 |
Max. length of rail in mm |
1000 |
1000 1000 |
2000 |
2000 |
Hydraulic Working Pressure in Kg/Cm² |
18 |
18 18 |
14 |
14 |
Pump Output in LT / Min |
7 |
7 7 |
14 |
14 |
Power Pack H.P. |
1 |
1 1 |
1.5/2.0 |
1.5/2.0 |
Theoretical Thrust in Kg |
190 |
300 300 |
470 |
470 |
Recommended tool shank in mm |
20x20 |
25x25 25x25 |
32x32 |
32x32 |
