Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > Copy Lathe Machine

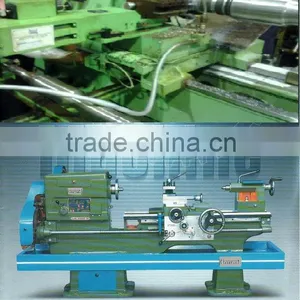

Copy Lathe Machine

Name: Copy Lathe Machine
Brand: GAMUT
SKU: 112863515
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Gamut Machine Tools

Payment & Shipping

Payment Methods:

Port of Shipment:

NHAVA SHEVA

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Automatic

Max. Swing Diameter 260mm

Place of Origin Maharashtra, India

Brand Name GAMUT

Model Number GAMUT-1

Voltage 415

After-sales Service Provided Engineers available to service machinery overseas

Specifications

BOOST YOUR PRODUCTION AND IMPROVE YOUR QUALITY

GAMUT Copy Lathe are suitable for job where simultaneous Facing and OD Turning or OD Turning and lD Turning or Facing and lD Turning required excluding holding portion. Mostly these machines are used on Tie Rod Housing, Gear Blanks, Sprockets, and Bearings etc. Machines are suitable for mass production of items economically. Machines are highly productive with ease in operation and maintenance.

TECHNICAL SPECIFICATION FOR COPYING LATHE


	SINGLE AXIS COPYING LATHE
MODEL GAMUT 1		GAMUT 2	GAMUT 3
Max. Turning Diameter 260mm		260mm	260mm
Max. Turning Length 950mm		1550mm	1850mm
Admit Between Centres (max.) 1000mm		1500mm	2000mm
SPINDLE
Taper in Spindle MT-4		MT-4	MT-5
Spindle Bore 54mm		54mm	54mm
Spindle RPM 25 to 500		25 to 500	25 to 500
Spindle Motor 3HP		3HP	3HP
COPYING SLIDE
Stroke 90/140mm		90/140mm	90/140mm
Tool Cross Section 25 X 25 mm		25x25 mm	25x25 mm
Theoretical Thrust 300Kg		300kg	300kg
TAIL STOCK
Max. Travel of Quill 125mm		125mm	125mm
Taper in Quill Bore MT-4		MT-4	MT-4
HYDRAULICS
Tank Capacity 40Ltrs.		40Ltrs.	40Ltrs.
Pump Capacity 7lpm		7lpm	7lpm
Motor 1HP		2HP	2HP
APPROXIMATE DIMENSIONS
Length 2200mm		2800mm	3100mm
Width 1100mm		1100mm	1100mm
Height 1500mm		1500mm	1500mm
'Specifications Subject to alteration without notice.
