Hydraulic Copy Attachment For Lathe
US$ 10 - 11
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
NHAVA SHEVA OR MUMBAI AIRPORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Horizontal
CNC or Not
Normal
Automatic Grade
Semi-Automatic
Max. Swing Diameter
As per customers requirement
Place of Origin
Maharashtra, India
Brand Name
GAMUT
Model Number
5 Model
Voltage
415V
Power(W)
0.75kw
Dimension(L*W*H)
1250mm X 750mm X 500mm
Weight
300kg
Certification
Exemption Certificate
After-sales Service Provided
Engineers available to service machinery overseas

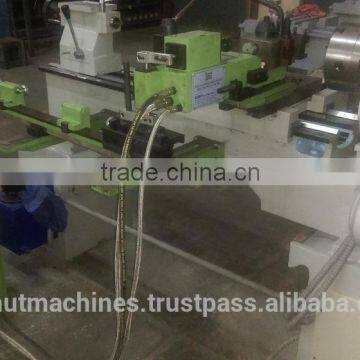

GAMUT Hydraulic Lathe Tracer for Copy Turning Face copying and Copy Boring. GAMUT LATHE TRACER are made by Graded Casting and have been Robustly constructed to take maximum cut with Hardend Tool Post and very sensitive and precise Copy-Valve to render trouble free longer service. GAMUT TRACER can be mounted on Rear or Front of the Lathe Machine and can be operated by semi skilled person. Inspection time is drastically reduced and Production increased by many many times with in accuracy of ‡0.025mm when used on good Lathe.
FEATURES

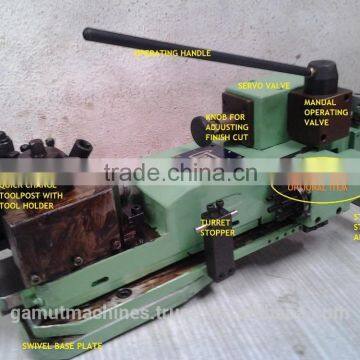

- In-built Lubrication system for Tracing slide.
- Hardened Tool Post with Quick Change Tool Holder.
- Automatic Finish Cut system from 0-1.5mm.
- 6-Station Servo actuated Turret for Multicut operation (Optional item at extra cost).
- Forward and Retraction of slide and finish cut operation done manually by single operating handle. Electrical Push Button Remote control at extra cost.

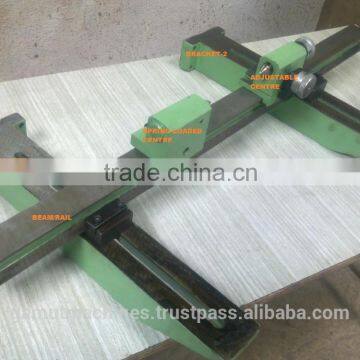

- Master carrier for Round master having fine tapper adjustment. Flat Template Holder optional at extra cost.

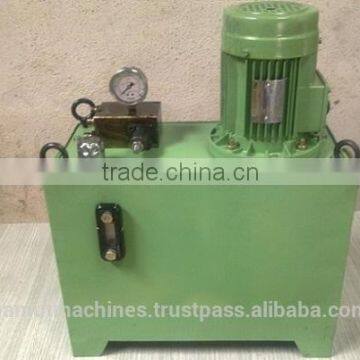

- Power pack having pump, manifold, filters, oil level, pressure gauge etc
TECHNICAL SPECIFICATION
| MODEL | 5660 | 7090 | 7014 | 1014 | 1020 |
| STROKE OF TRACING SLIDE MM | 60 | 90 | 140 | 140 | 200 |
|
MIN CENTER HEIGHT FROM TOP OF CROSS SLIDE MM |
90 | 100 | 100 | 140 | 140 |
| MAX DIA OF ROUND MASTER | 100 | 100 | 100 | 200 | 200 |
| MAX LENGTH OF RAIL | 1000 | 1000 | 1000 | 2000 | 2000 |
| HYDRAULIC PRESSURE KG/CM² | 18 | 18 | 18 | 14 | 14 |
| PUMP OUTPUT LPM | 9 | 9 | 9 | 14 | 14 |
| THRUST IN KG | 190 | 300 | 300 | 470 | 470 |
| POWER PACK HP | 1 | 1 | 1 | 1.5 | 1.5 |
| TOOL SHANK | 20X20 | 25X25 | 25X25 | 32X32 | 32X32 |
