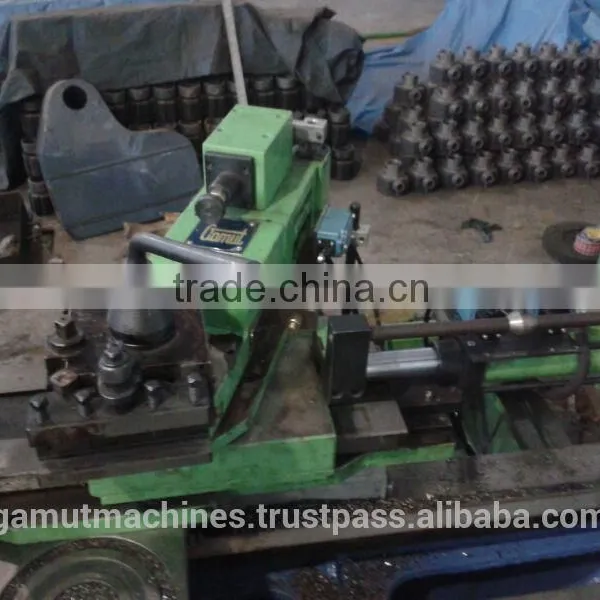

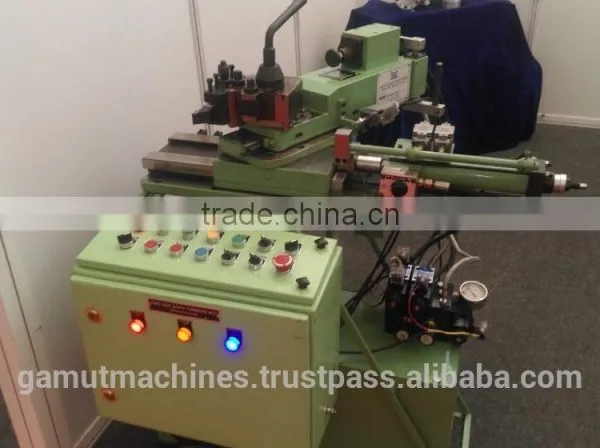

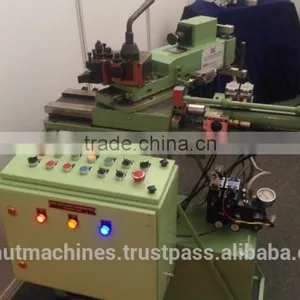

Self Contained Tracing System for Lathe includes Single Axis GAMUT Tracer mounted on independent longitudinal hydraulic feed slide with 0-40mm/secomd speed variation control, Hydraulic control valves, Dual Delivery Power Pack, Electric Control Panel and Limit Switches.
System is suitably desgined to get upto Two-cut Automatic Cycle of Tracer.
System is very much suitable where limited dependence on operator require. Operator is only required to load the job, press the strart Button and unload the job at the end of cycle.

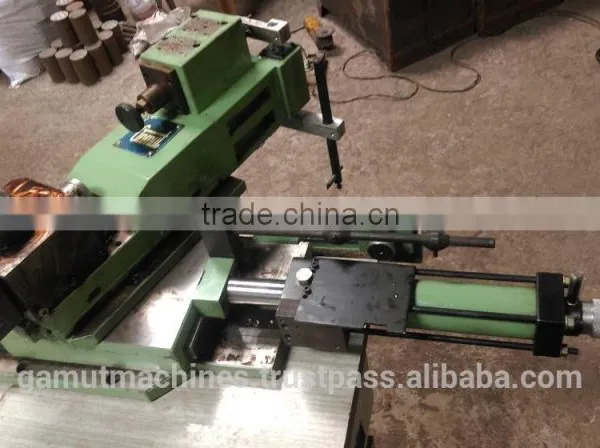

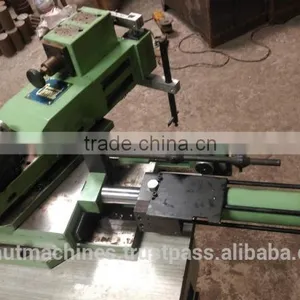

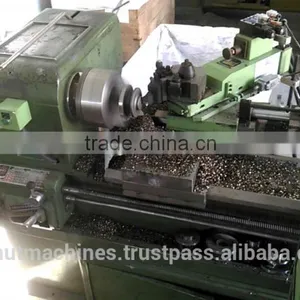

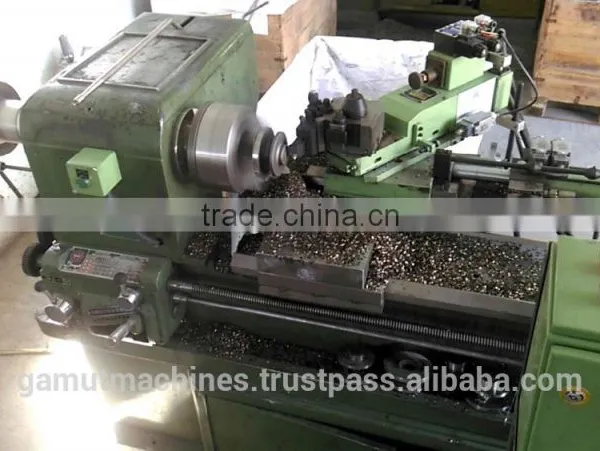

GAMUT Hydraulic Lathe Tracer for Copy Turning Face copying and Copy Boring. GAMUT LATHE TRACER are made by Graded Casting and have been Robustly constructed to take maximum cut with Hardend Tool Post and very sensitive and precise Copy-Valve to render trouble free longer service. GAMUT TRACER can be mounted on Rear or Front of the Lathe Machine and can be operated by semi skilled person. Inspection time is drastically reduced and Production increased by many many times with in accuracy of ‡0.025mm when used on good Lathe.
FEATURES
- In-built Lubrication system for Tracing slide.
- Hardened Tool Post with Quick Change Tool Holder.
- Automatic Finish Cut system from 0-1.5mm.
- 6-Station Servo actuated Turret for Multicut operation (Optional item at extra cost).
- Forward and Retraction of slide and finish cut operation done manually by single operating handle. Electrical Push Button Remote control at extra cost.
- Master carrier for Round master having fine tapper adjustment. Flat Template Holder optional at extra cost.

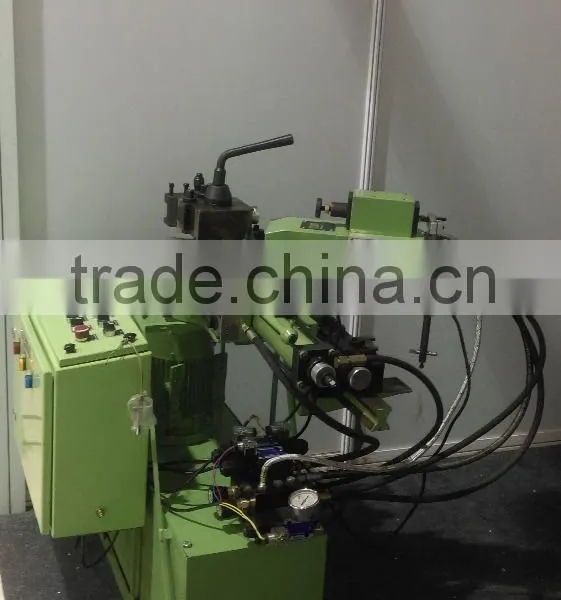

- Power pack having pump, manifold, filters, oil level, pressure gauge etc
| MODEL | 5660 | 7090 | 7014 | ||
|
STROKE OF TRACING SLIDE MM
STROKE OF LONGITUDINAL SLIDE |
60
200 |
90
200 |
140
200 |
||
|
MIN CENTER HEIGHT FROM TOP OF CROSS SLIDE MM |
90 | 100 | 100 | ||
| MAX DIA OF ROUND MASTER | 100 | 100 | 100 | ||
| MAX LENGTH OF RAIL | 600 | 600 | 600 | ||
| HYDRAULIC PRESSURE KG/CM² | 18 & 18 | 18 & 18 | 18 & 18 | ||
| DUAL PUMP OUTPUT LPM | 9 & 7 | 9 & 7 | 9 & 7 | ||
| THRUST IN KG | 190 | 300 | 300 | ||
| POWER PACK HP | 1.5/2 | 1.5/2 | 1.5/2 | ||
| TOOL SHANK | 20X20 | 25X25 | 25X25 |
