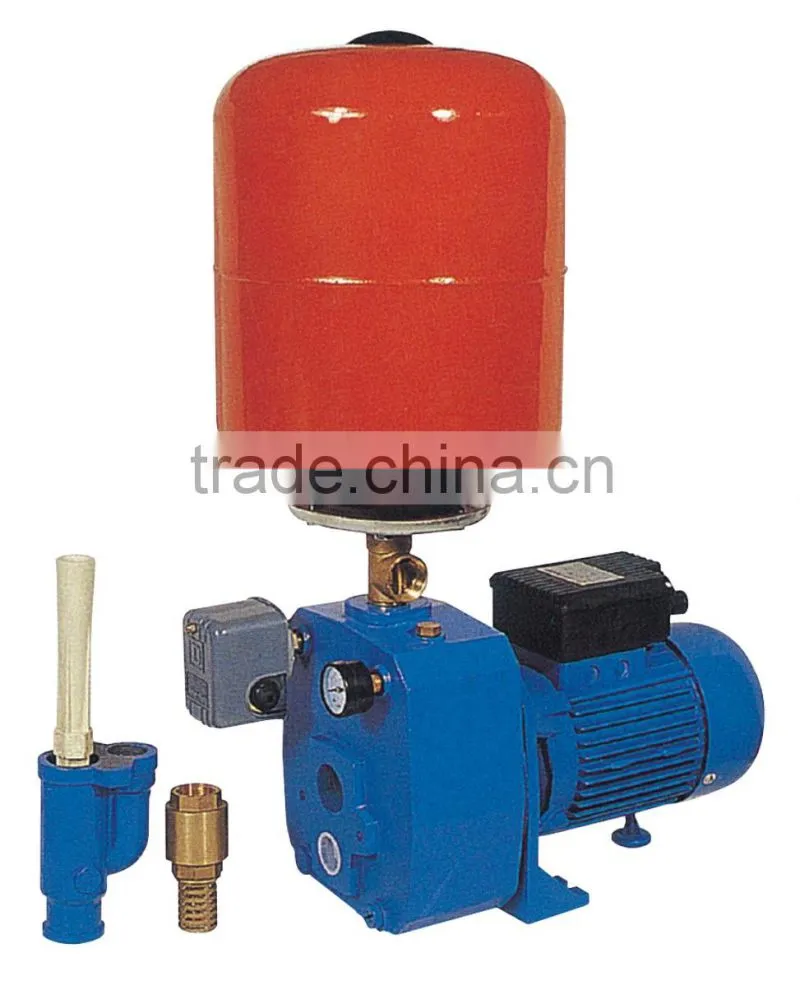

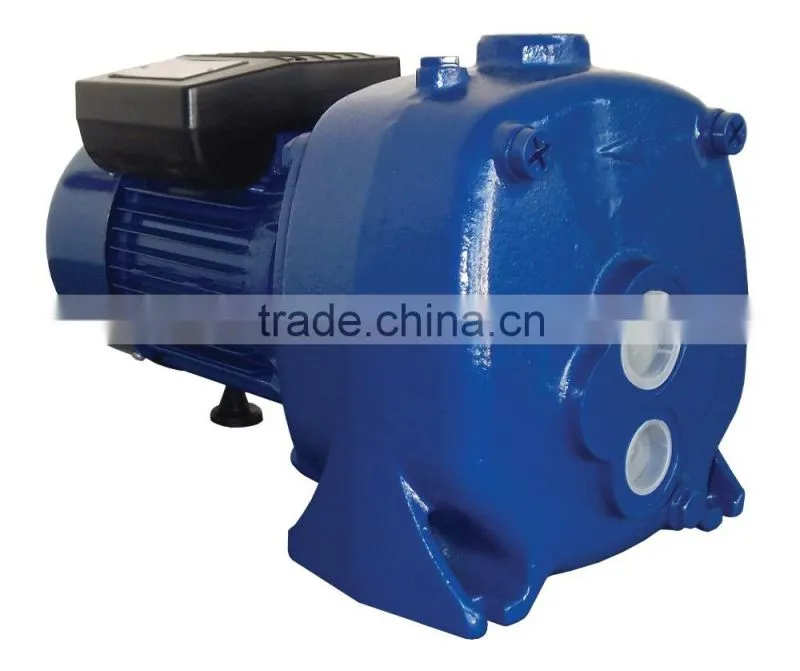

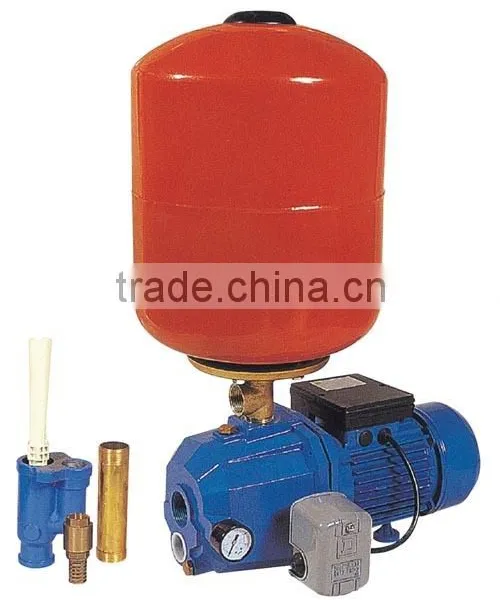

High Quality AUTOJDW Automatic Booster Pump
PUMP BODY: IRON CAST
FRONT COVER: IRON CAST
IMPELLER: BRASS,P.P.O,ALUMINIUM
MOTOR:The pumps are coupled directly to an asynchronous, high efficiency STAR/TEECO induction motor of suitable size, which is quiet running, close and extremely ventilated, suitable for ontinuous duty.
INSULATION: Class B
PROTECTION: IP44
Suction lift up to 45 m
Maximum ambient temperature +40°C
The thermal cutout relay (motor protector) is incorporated in single phase motors.
Three phase motors require an adequate external motor protector, with connections according to current standards.
INSTALLATION AND APPLICATIONS
These pumps are suitable for suction from deep wells, and the series installed above grand with the get body submerged guarantees functioning even when the static level of the well water fulls as far as of meters below the level of the installed pump. For this reason these pumps are extremely reliable, economical and simple to use and find many use in domestic where the suction depth exceed the normal capacity(9 meters) for surface pumps.
| JDW Series Self-Priming JET Pump | |||||||||
| Model | Power | Q.MAX | H.MAX | S.Head | Speed | Pipe Dia | N.W | Packing size | |
| W | HP | (L/min) | (m) | (m) | (r.p.m) | (Inch) | (kg) | (mm) | |
| AUTOJDW255 | 550 | 0.75 | 45 | 35 | 9 | 2850 | 1"*1" | 17 | 420*230*330 |
| AUTOJDW370 | 750 | 1 | 50 | 40 | 1"*1" | 20 | 420*230*330 | ||
| AUTOJDW505 | 1100 | 1.5 | 55 | 45 | 1"*1" | 24 | 420*230*330 | ||
| AUTOJDW505S | 1100 | 1.5 | 55 | 45 | 1"*1" | 24 | 450*235*330 | ||
| AUTOJDW750 | 2200 | 3 | 32 | 85 | 1.25"*1" | 27 | 520*255*330 | ||
