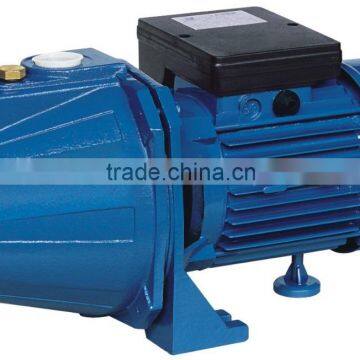

0.75HP CE Certificated JET80S Electric Water Pump

0.75HP CE Certificated JET80S Electric Water Pump thumbnail-1
0.75HP CE Certificated JET80S Electric Water Pump photo-1
US$ 25 - 50 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
OEM
Model Number:
JET80S
Contact Supplier Request Quote Chat Now
Fujian Fu'an Star Motors Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name OEM
Model Number JET80S
Theory Jet Pump
Structure Gear Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Other, Clean Water
Pressure Low Pressure
Application Other, Clean Water
0.75HP CE Certificated JET80S Electric Water Pump


1 .Working conditions:

Max temperature of fluid up to:      50℃

Max ambient temperature up to:        40℃

Max Pressure:                        8bar



2. Structural characteristics:

Pump casing:        Cast Iron

Impeller:            ABS/Brass/Noryl

Diffuser:            Noryl/PPO/ABS/Cast iron

Motor Housing:       Aluminum

Pump-motor adaptor:  Aluminum/Cast iron

Mechanical seal:      Stainless steel(graphite to ceramic)

Shaft:               45# steel or stainless steel

Bearing:             SKF/NTN/NSK/China

Insulation class:       B and F

Protection class:       IP44 and IP54

3. Technical data (220V,50HZ)

Model

Power

Q.MAX

(L/min)

H.MAX

(m)

S.Head

(m)

Speed

(r.p.m)

Pipe Dia

(Inch)

N.W

(kg)

Packing size

(mm)

W

HP

JET-60S

460

0.6

45

35



9



2850



1″* 1″

12.8



375*188*200

JET-80S

600

0.8

50

40

13.5

JET-100S

750

1

50

45

14.2

Model

Power

Q.MAX

(L/min)

H.MAX

(m)

S.Head

(m)

Speed

(r.p.m)

Pipe Dia

(Inch)

N.W

(kg)

Packing size

(mm)

W

HP

JET-60L

460

0.6

55

35



9



2850



1″* 1″

15.3



435*188*200

JET-80L

600

0.8

60

40

16.0

JET-100L

750

1

60

45

16.7

Model

Power

Q.MAX

(L/min)

H.MAX

(m)

S.Head

(m)

Speed

(r.p.m)

Pipe Dia

(Inch)

N.W

(kg)

Packing size

(mm)

W

HP

JET-60P

460

0.6

55

35



9



2850



1″* 1″

15.6



435*182*230

JET-80P

600

0.8

60

40

16.3

JET-100P

750

1

60

45

17

JET-140P

1100

1.5

60

65

33

556*235*260

JET-160P

1500

2

65

70

36



Model

Power

Q.MAX

(L/min)

H.MAX

(m)

S.Head

(m)

Speed

(r.p.m)

Pipe Dia

(Inch)

N.W

(kg)

Packing size

(mm)

W

HP

JSP-100A

300

0.4

42

30



9



2850



1″* 1″

9.3

385*160*175

JSP-155A

460

0.6

55

35

15

440*190*195

JSP-255A

600

0.6

60

40

15.7

JSP-355A

750

1

60

45

16.4



Model

Power

Q.MAX

(L/min)

H.MAX

(m)

S.Head

(m)

Speed

(r.p.m)

Pipe Dia

(Inch)

N.W

(kg)

Packing size

(mm)

W

HP

JTP-30

300

0.4

50

30



9



2850



1″* 1″

7.3

385*160*205

JTP-35

460

0.6

55

35

8.8

390*182*230

JTP-40

600

0.8

55

40

9.5

390*182*230

JTP-45

750

1

60

45

10.2

390*182*230

110V,115V,127V,230V,240V,110/220V,50HZ/60HZ,380V 50HZ three-phase etc.Models are acceptable if request.



INSTALLATION AND APPLICATIONS:
These pumps are suitable for pumping clean water and fluids which are not chemically aggressive to pump components.
They are extremely reliable,economical and simple to use, being particularly suitable for domestic applications such as the automatic distribution of water from small and medium-size tanks, watering gardens,etc.
These pumps should be installed in a covered area. protected against the weather.
 PERPORMANCE:
The wide range of pump in the JET-M series satisfied the most varied requirements with features such as:
- high heads with respect to power required.
-flat operating and power absorption curves, giving moderate curve variations with respect to large variations in delivery demand.
-high tolerance of the presence of entrained air in the fluid to be pumped.
-suction capacity up to 9 meters

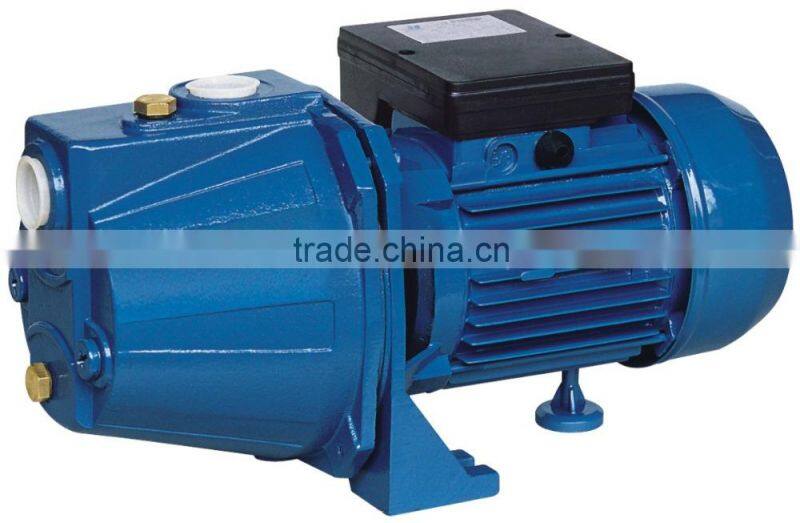

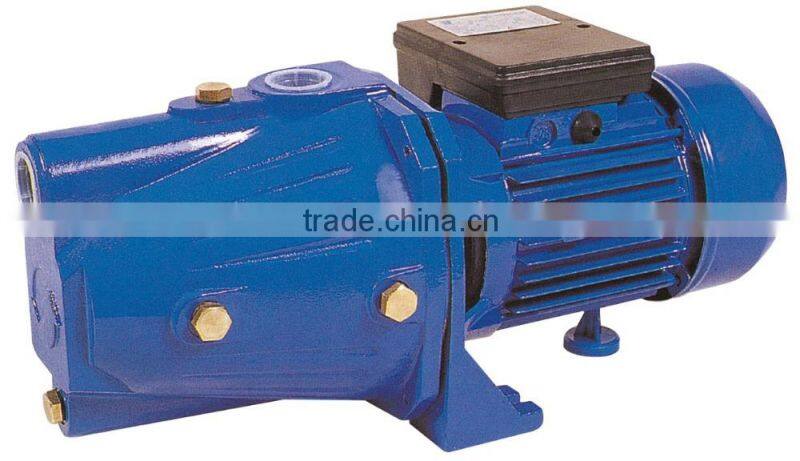

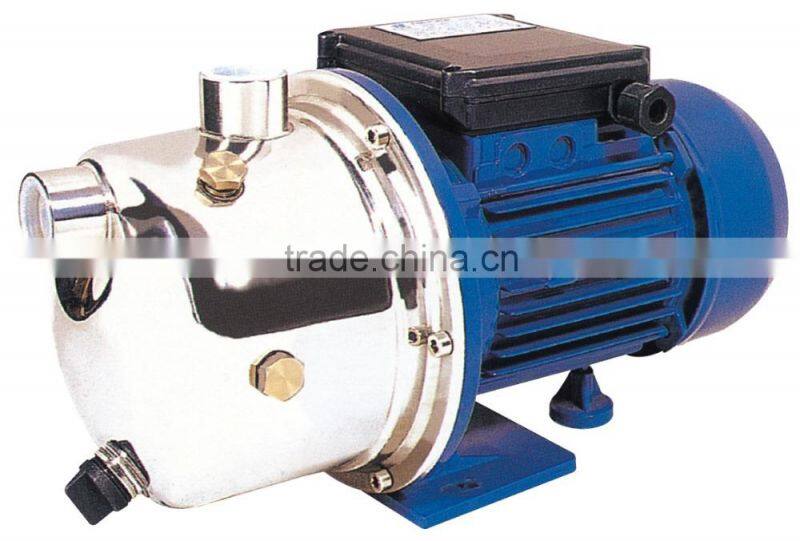

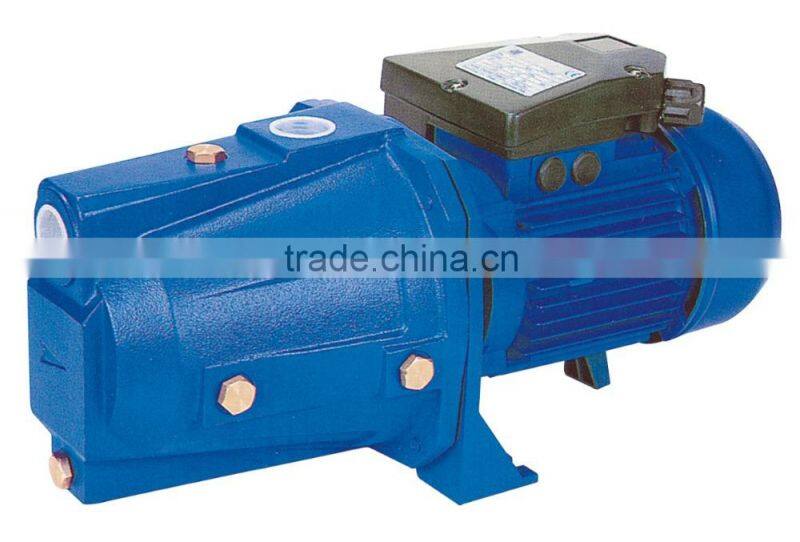

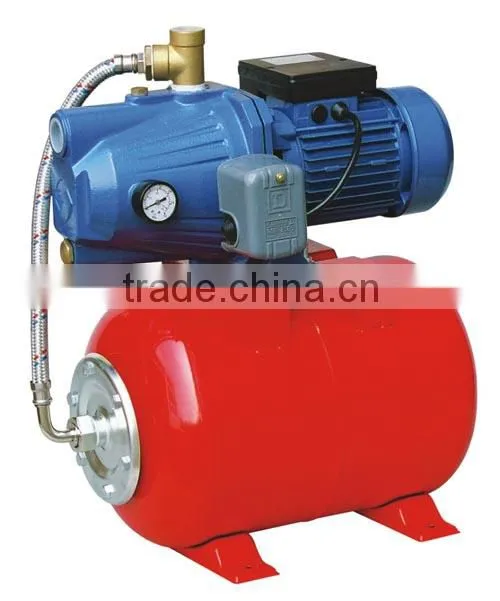

Detailed Pictures:
0.75HP CE Certificated JET80S Electric Water Pump0.75HP CE Certificated JET80S Electric Water Pump0.75HP CE Certificated JET80S Electric Water Pump0.75HP CE Certificated JET80S Electric Water Pump0.75HP CE Certificated JET80S Electric Water Pump
