AUTOQB60 Cast Iron Domestic Clean Water Booster Pump
US$ 37 - 58
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
OEM
Model Number:
AUTOQB60
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
0.75HP CE Certificated JET80S Electric Water PumpUS$ 25 - 50MOQ: 100 Pieces -
0.5HP/370W JET40 Cast Iron Copper Wire Self Priming JET PumpUS$ 25 - 50MOQ: 100 Pieces
-
0.5HP~2HP High Quality CE Certificated JET PumpUS$ 25 - 50MOQ: 100 Pieces
-
370W/500W 110V/230V 50/60HZ Copper/Aluminum Wire QB60 Peripheral PumpUS$ 10 - 30MOQ: 500 Pieces
-
1HP JET102M Cast Iron Self Priming JET Water PUMPUS$ 25 - 50MOQ: 100 Pieces
Place of Origin
Fujian, China
Brand Name
OEM
Model Number
AUTOQB60
Theory
Vortex Pump
Structure
Single-stage Pump
Usage
Water
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other, CLEAN WATER
Pressure
Low Pressure
Application
Other, CLEAN WATER

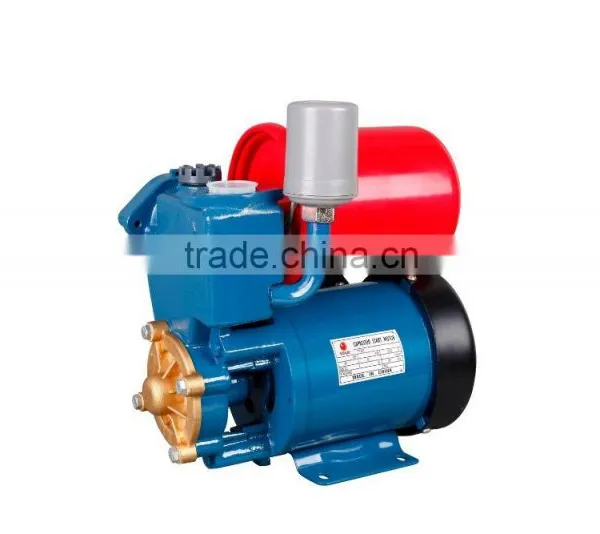

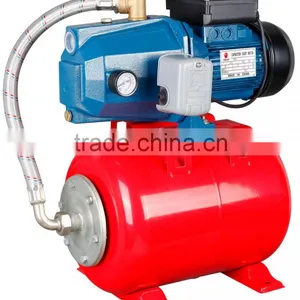

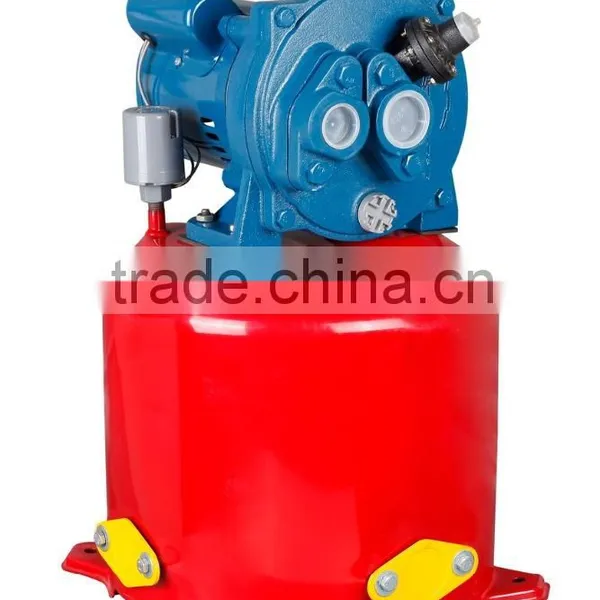

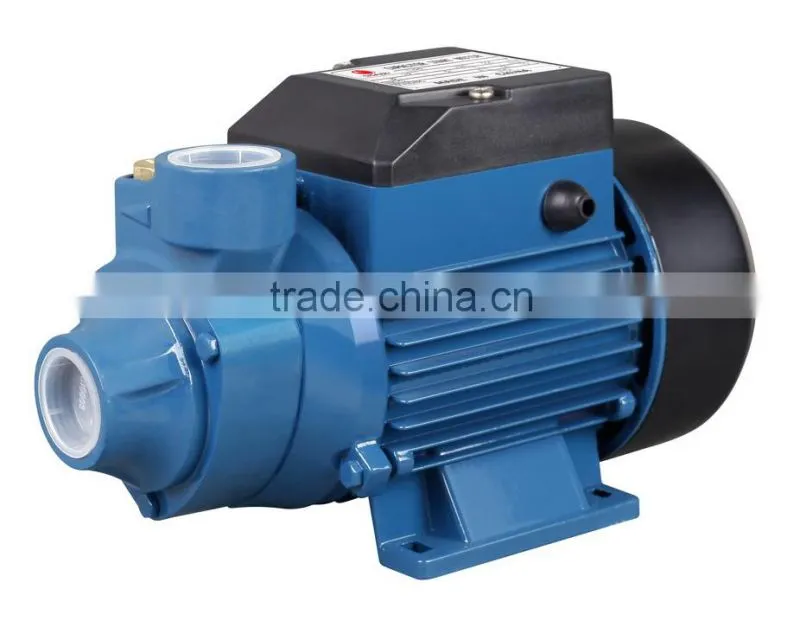

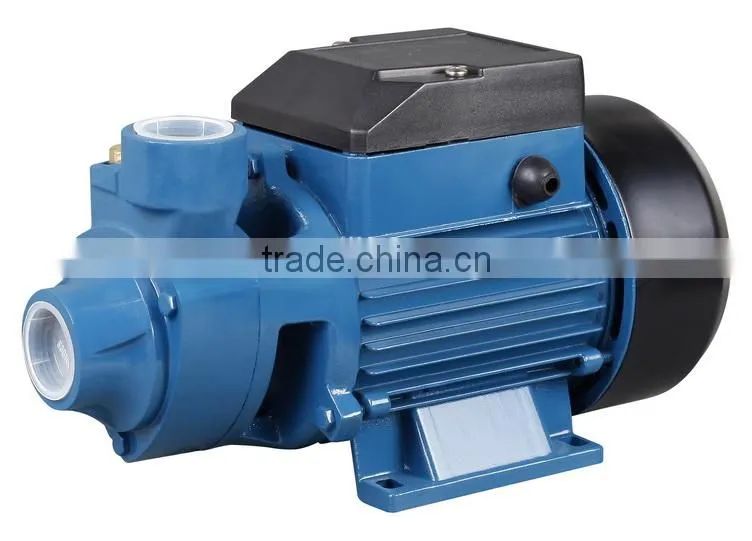

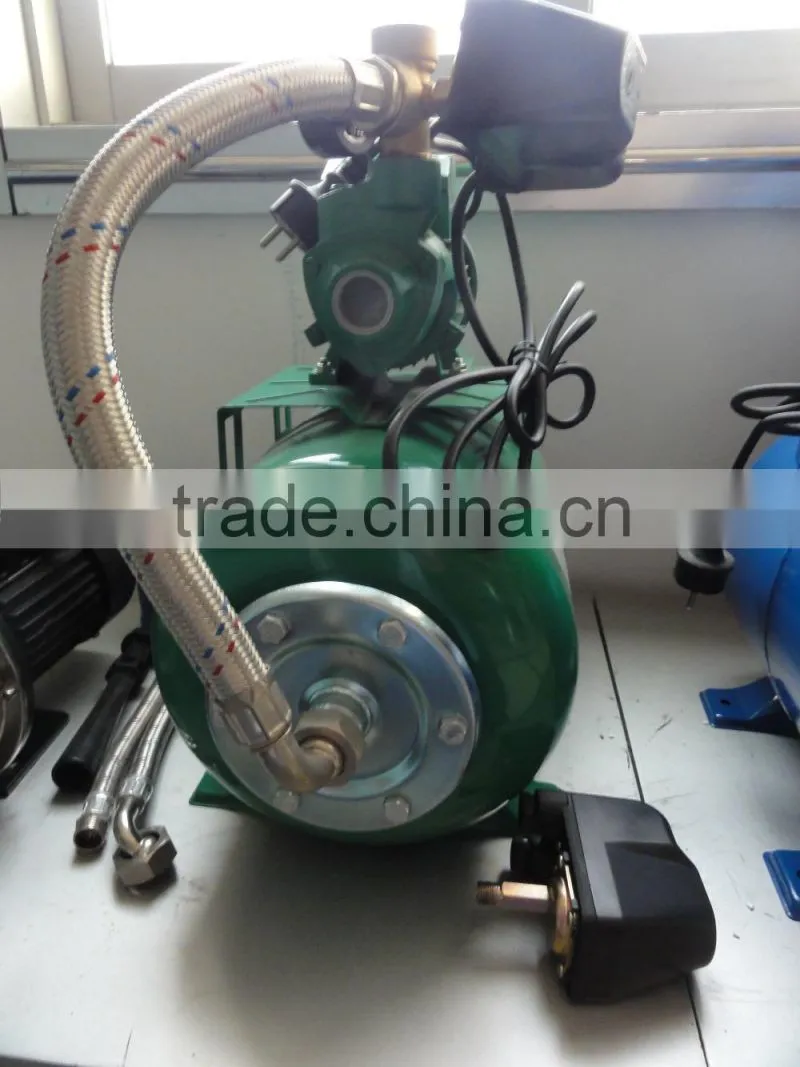

AUTOQB60 Cast Iron Domestic Clean Water Booster Pump
Pump Body: Cast Iron/Brass
Front Cover: Cast Iron/Brass
Impeller: Brass
Motor: Closed,Extremely Ventilated
Mechanical Seal: Ceramic and graphite
Insulation: Class B
Protection: IP44
Thermal protector: In requested.
Suction lift up to 9 m
Fluid temperature up to + 60°C
Maximum ambient temperature +40°C
Pressure tank: 2L,5L,19L
Pressure switch: 1-1.3Mpa
Pressure guage: MR/6
Brass connector: 5-way
INSTALLATION AND APPLICATIONS
These pumps are suitable for handing clean water not containing abrasive particles and fluids which are not chemically aggressive to the pump components.
These pumps consist for DB series pump,pressure tank,pressure switch,pressure guages and brass connector.
They are extremely reliable, light, economic and simple to use, finding many uses in domestic applications, in particular the automatic distribution of water from surge tanks, watering gardens and for boosting insufficient mains water pressure.
These pumps should be installed in a covered area, protected against the weather.
They are extremely reliable, light, economic and simple to use, finding many uses in domestic applications, in particular the automatic distribution of water from surge tanks, watering gardens and for boosting insufficient mains water pressure.
These pumps should be installed in a covered area, protected against the weather.
PERFORMANCE
The wide range of pumps in the DB series satisfies the most various operating requirements with features such as:
high heads with respect to power requirements.
Stable operating curves, with small variations in delivery rates with respect to large variations in the pressure demand.
high tolerance of the presence of entrained air in the fluid to the pumped.
Suction capacity up to 9 meters.
Stable operating curves, with small variations in delivery rates with respect to large variations in the pressure demand.
high tolerance of the presence of entrained air in the fluid to the pumped.
Suction capacity up to 9 meters.
| Model | Power | Q.MAX | H.MAX | S.Head | Speed | Pipe Dia | N.W | Packing size | |
| W | HP | (L/min) | (m) | (m) | (r.p.m) | (Inch) | (kg) | (mm) | |
| AUTOQB-60 | 370 | 0.5 | 35 | 35 | 9 | 2850 | 1"*1" | 7 | 265*120*182 |
| AUTOQB-70 | 550 | 0.75 | 43 | 50 | 1"*1" | 10 | 310*138*202 | ||
| AUTOQB-80 | 750 | 1 | 55 | 55 | 1.5"*1.5" | 12 | 315*138*210 | ||
