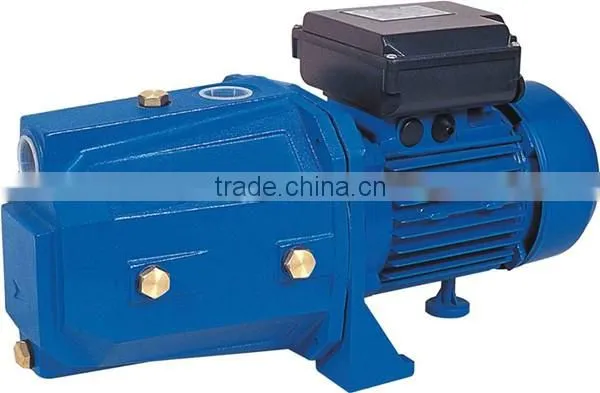

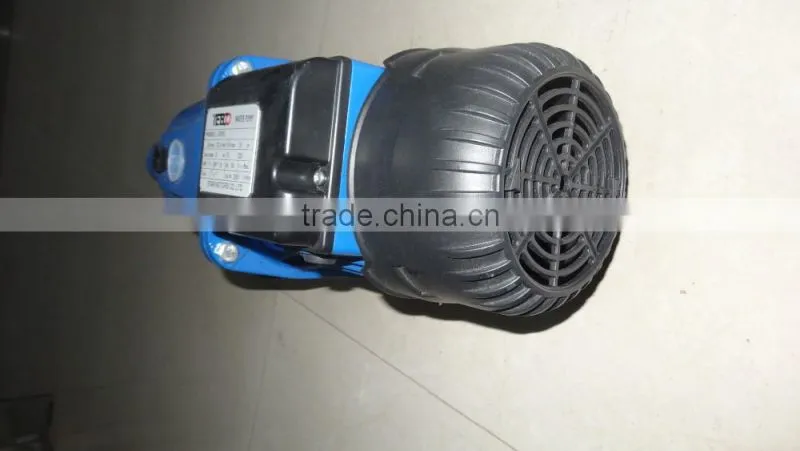

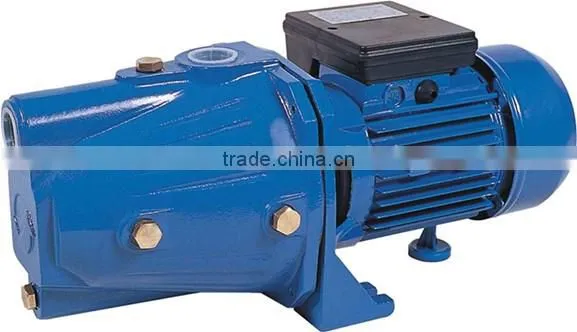

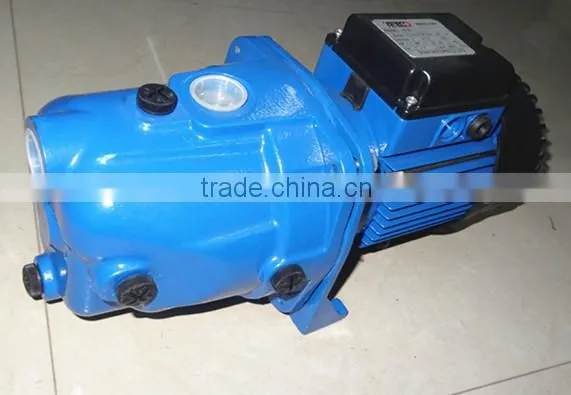

JDP85 1HP Manual Selfing-priming Farming Water Pump
US$ 38 - 58
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
OEM
Model Number:
JEP
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4KW/5HP SCP486 Centrifugal Water PumpUS$ 40 - 120MOQ: 60 Pieces -
JEP100 Manual Selfing-priming Farming Water PumpUS$ 38 - 58MOQ: 100 Pieces
-
370W~1100W Booster Garden PumpUS$ 38 - 58MOQ: 100 Pieces
-
1HP/750W CPM158 Centrifugal Water PumpUS$ 25 - 65MOQ: 100 Pieces
-
750W Copper Wire QB80 Peripheral PumpUS$ 10 - 30MOQ: 500 Pieces
Place of Origin
Fujian, China
Brand Name
OEM
Model Number
JEP
Theory
Jet Pump
Structure
Single-stage Pump
Usage
Water
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other, CLEAN WATER
Pressure
High Pressure
Application
Other, CLEAN WATER
JET100 Manual Self-Priming Farming Water Pump
1. Working conditions:
Max temperature of fluid up to: 80℃
Max ambient temperature up to: 40℃
Max Pressure: 10bar
2. Structural characteristics:
Pump casing: Cast iron
Impeller: Brass / PPO
Motor housing: Aluminum
Mechanical seal: Stainless steel(graphite to ceramic)
Shaft: 45# steel or stainless steel
Bearing: SKF/NTN/NSK/China
Insulation class: B and F
Protection class: IP44 and IP54
INSTALLATION AND APPLICATIONS
These pumps are suitable for handing clean water not containing abrasive particles and fluids which are not chemically aggressive to the pump components.
These pumps consist forJET series pump,pressure tank,pressure switch,pressure guages and brass connector.
They are extremely reliable, light, economic and simple to use, finding many uses in domestic applications, in particular the automatic distribution of water from surge tanks, watering gardens and for boosting insufficient mains water pressure.
These pumps should be installed in a covered area, protected against the weather.
They are extremely reliable, light, economic and simple to use, finding many uses in domestic applications, in particular the automatic distribution of water from surge tanks, watering gardens and for boosting insufficient mains water pressure.
These pumps should be installed in a covered area, protected against the weather.
PERFORMANCE
The wide range of pumps in the JET series satisfies the most various operating requirements with features such as:
high heads with respect to power requirements.
Stable operating curves, with small variations in delivery rates with respect to large variations in the pressure demand.
high tolerance of the presence of entrained air in the fluid to the pumped.
Suction capacity up to 9 meters.
Stable operating curves, with small variations in delivery rates with respect to large variations in the pressure demand.
high tolerance of the presence of entrained air in the fluid to the pumped.
Suction capacity up to 9 meters.
| AUTOJETL Series Self-Priming JET Pump | |||||||||
| Model | Power | Q.MAX | H.MAX | S.Head | Speed | Pipe Dia | N.W | Packing size | |
| W | HP | (L/min) | (m) | (m) | (r.p.m) | (Inch) | (kg) | (mm) | |
| JET-60L | 460 | 0.6 | 55 | 35 | 9 | 2850 | 1"*1" | 17.3 | 435*188*230 |
| JET-80L | 600 | 0.8 | 60 | 40 | 1"*1" | 18 | 435*188*230 | ||
| JET-100L | 750 | 1 | 60 | 45 | 1"*1" | 18.7 | 435*188*230 | ||
| AUTOJETP Series Self-Priming JET Pump | |||||||||
| Model | Power | Q.MAX | H.MAX | S.Head | Speed | Pipe Dia | N.W | Packing size | |
| W | HP | (L/min) | (m) | (m) | (r.p.m) | (Inch) | (kg) | (mm) | |
| JET-60P | 460 | 0.6 | 55 | 35 | 9 | 2850 | 1"*1" | 17.6 | 435*182*260 |
| JET-80P | 600 | 0.8 | 60 | 40 | 1"*1" | 18.3 | 435*182*260 | ||
| JET-100P | 750 | 1 | 60 | 45 | 1"*1" | 19 | 435*182*260 | ||
| JET-120P | 1100 | 1.5 | 60 | 65 | 1"*1" | 35 | 556*235*290 | ||
| JET-140P | 1500 | 2 | 65 | 70 | 1"*1" | 38 | 556*235*290 | ||
