Home > Products > Water Pumps > 4KW/5HP SCP486 Centrifugal Water Pump

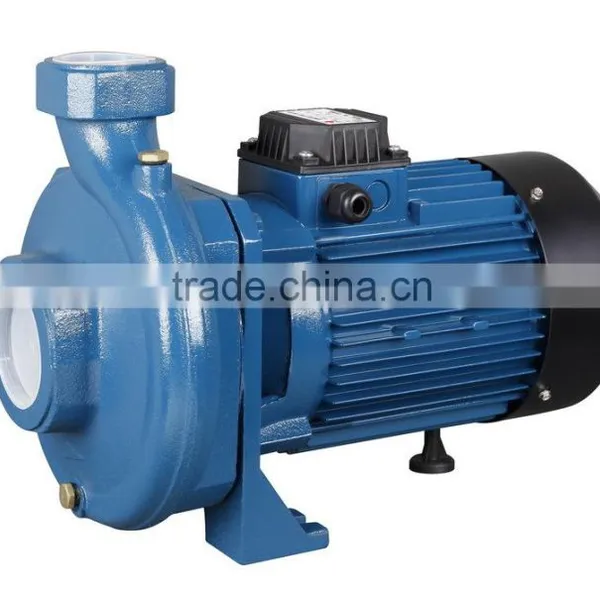

4KW/5HP SCP486 Centrifugal Water Pump
- 30000 Piece / Pieces per Month
- FUZHOU
- T/T
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Fujian, China | Brand Name: | OEM | Model Number: | SCP serie |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, clean water |
Pressure: | Low Pressure | Application: | Other, clean water |
Product Description
4KW/5HP SCP486 Centrifugal Water Pump
1. Working conditions:
Max temperature of fluid up to: 80℃
Max ambient temperature up to: 40℃
Max Pressure: 10bar
2. Structural characteristics:
Pump casing: Cast iron
Impeller: Cast iron
Motor housing: Aluminum
Mechanical seal: Stainless steel(graphite to ceramic)
Shaft: 45# steel or stainless iron
Bearing: SKF/NTN/NSK/China
Insulation class: B and F
Protection class: IP44 and IP54
3.Technical data(220V,50HZ)
CPM Seires
Model | Power | Q.MAX (L/min) | H.MAX (m) | S.Head (m) | Speed (r.p.m) | Pipe Dia (Inch) | N.W (kg) | Packing size (mm) | |
W | HP | ||||||||
SCP122 | 750 | 1 | 200 | 20 | 9
9 | 2850
2850 | 1” * 1”
2” * 2” 2.5"*2" 2.5"*2" | 8.8 | 420*235*300 |
SCP104 | 1100 | 1.5 | 170 | 26 | 12.2 | 420*205*300 | |||
SCP300 | 1800 | 2.5 | 108 | 32 | 13.6 | 490*300*360 | |||
SCP462 | 3000 | 4 | 120 | 40 | 20.2 | 502*310*370 | |||
SCP486 | 4000 | 5.5 | 130 | 46 | 23 | 502*310*370 |
110V,115V,127V,230V,240V,110/220V,50HZ/60HZ,380V 50HZ three-phase etc.Models are acceptable if request.
INSTALLATION AND APPLICATIONS
These pumps are suitable for pumping clean water and fluids which are not chemically aggressive to the pump components. They are extremely reliable,economical and simple to use,being particularly suitable for domestic applications such as the automatic distribution of water from small and medium-sized surge tanks, watering gardens,etc .These pumps should be installed in a covered area,protected against the weather. N.B.it is always advisable to install a foot valve or a non-return valve on the suction opening.
