Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > 1HP/750W CPM158 Centrifugal Water Pump

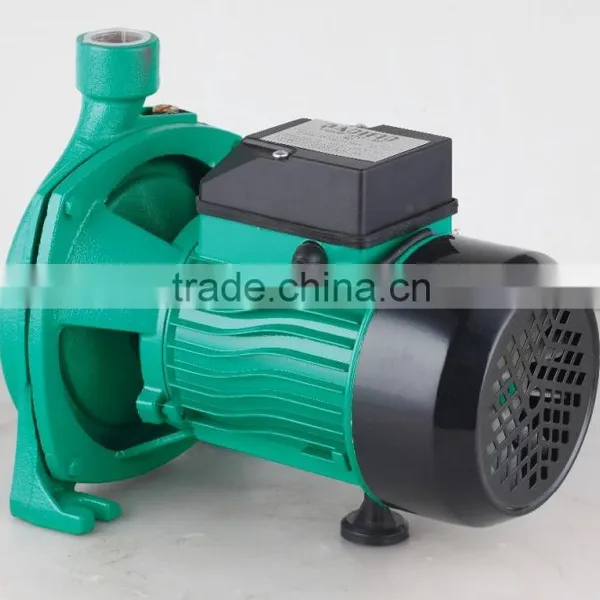

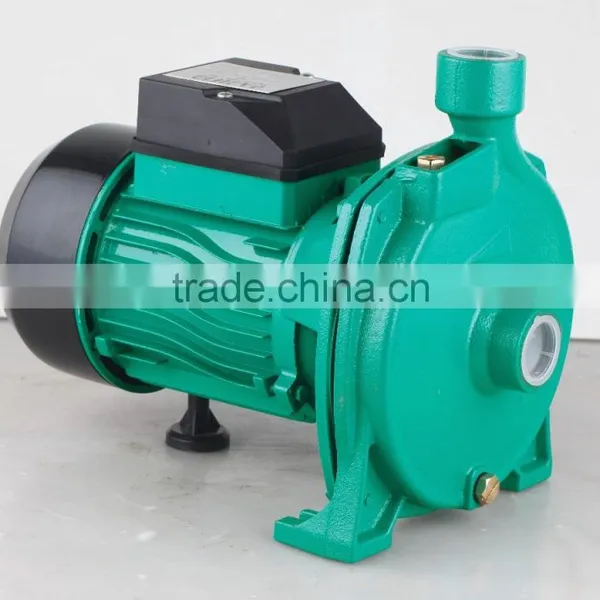

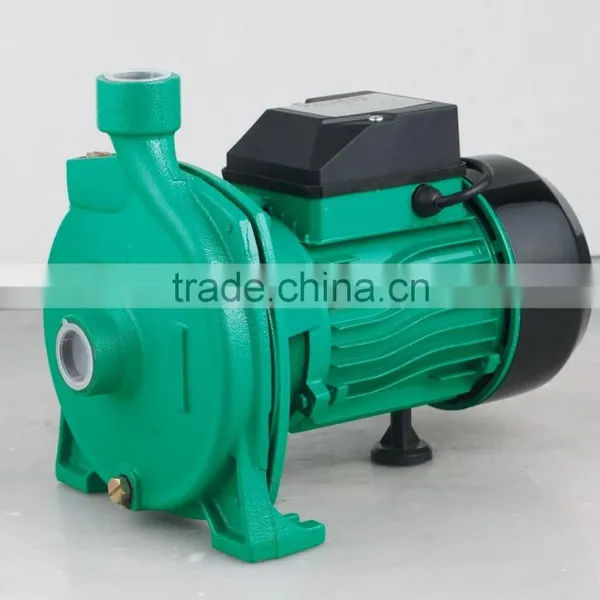

1HP/750W CPM158 Centrifugal Water Pump

1HP/750W CPM158 Centrifugal Water Pump thumbnail-3

1HP/750W CPM158 Centrifugal Water Pump photo-1

1HP/750W CPM158 Centrifugal Water Pump photo-2

1HP/750W CPM158 Centrifugal Water Pump photo-3

US$ 25 - 65 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

OEM

Model Number:

CPM serie

Contact Supplier Request Quote Chat Now

Fujian Fu'an Star Motors Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FUZHOU

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name OEM

Model Number CPM serie

Theory Centrifugal Pump

Structure Single-stage Pump

Usage Water

Power Electric

Standard or Nonstandard Standard

Fuel Other, clean water

Pressure Low Pressure

Application Other, clean water

1HP/750W CPM158 Centrifugal Water Pump

1. Working conditions:

Max temperature of fluid up to: 80℃

Max ambient temperature up to: 40℃

Max Pressure: 10bar

2. Structural characteristics:

Pump casing: Cast iron

Impeller: Brass

Motor housing: Aluminum

Mechanical seal: Stainless steel(graphite to ceramic)

Shaft: 45# steel or stainless iron

Bearing: SKF/NTN/NSK/China

Insulation class: B and F

Protection class: IP44 and IP54

3.Technical data(220V,50HZ)

CPM Seires

Model	Power		Q.MAX (L/min)	H.MAX (m)	S.Head (m)	Speed (r.p.m)	Pipe Dia (Inch)	N.W (kg)	Packing size (mm)
Model	W	HP	Q.MAX (L/min)	H.MAX (m)	S.Head (m)	Speed (r.p.m)	Pipe Dia (Inch)	N.W (kg)	Packing size (mm)
CPM-130	400	0.54	100	20	9 9	2850 2850	1” * 1” 1” * 1”	8.8	265165215
CPM-146	550	0.75	100	26				12.2	300175230
CPM-158	750	1	108	32				13.6	310190245
CPM-180	1100	1.5	120	40				20.2	361230292
CPM-200	1500	2	130	46				23	361230292

SCM Seires

Model	Power		Q.MAX (L/min)	H.MAX (m)	S.Head (m)	Speed (r.p.m)	Pipe Dia (Inch)	N.W (kg)	Packing size (mm)
	W	HP
SCM-22	400	0.54	100	20	9	2850	1″* 1″	9.4	280157210
SCM-42	550	0.75	115	22				10.5	300157210
SCM-50	750	1	108	32				12.8	300188240

DK Seires

Model	Power		Q.MAX (L/min)	H.MAX (m)	S.Head (m)	Speed (r.p.m)	Pipe Dia (Inch)	N.W (kg)	Packing size (mm)
Model	W	HP	Q.MAX (L/min)	H.MAX (m)	S.Head (m)	Speed (r.p.m)	Pipe Dia (Inch)	N.W (kg)	Packing size (mm)
1DK-14	370	0.5	75	12	9	2850	1″* 1″	7.4	270147172
1DK-20	550	0.75	120	16			1″* 1″	10.9	395165190
1.5DK-20	750	1	200	16			1.5″* 1.5″	11.4	305165192
2DK-16	1100	1.5	420	16			2″* 2″	20	365220220
2DK-20	1500	2	420	20			2″* 2″	23	365220220

DTM Seires

Model	Power		Q.MAX (L/min)	H.MAX (m)	S.Head (m)	Speed (r.p.m)	Pipe Dia (Inch)	N.W (kg)	Packing size (mm)
Model	W	HP	Q.MAX (L/min)	H.MAX (m)	S.Head (m)	Speed (r.p.m)	Pipe Dia (Inch)	N.W (kg)	Packing size (mm)
PX-201	370	0.5	110	14	9	2850	1″* 1″	13	320210210
PX-203	550	0.75	180	15			1.5″* 1.5″	14
PX-204	750	1	200	16			1.5″* 1.5″	14.6
PX-205	1500	2	420	20			2″* 2″	23	395220220
PX-207	2200	3	700	20			3″* 3″	37	440255280

PX Seires

Model	Power		Q.MAX (L/min)	H.MAX (m)	S.Head (m)	Speed (r.p.m)	Pipe Dia (Inch)	N.W (kg)	Packing size (mm)
Model	W	HP	Q.MAX (L/min)	H.MAX (m)	S.Head (m)	Speed (r.p.m)	Pipe Dia (Inch)	N.W (kg)	Packing size (mm)
DTM-16	1100	1.5	300	16	9	2850	1″* 1″	20	340210250
DTM-20	1500	2	420	20			2″* 2″	22	410220275
CM-20	750	1	165	18			1.5″* 1.25″	14	310175225
CM-30	1500	2	420	20			2″* 2″	24	395220220
CM-40	2200	3	600	22			3” * 3”	34	440280220
CM-50	3000	4	860	24			3″* 3″	40	420320240

110V,115V,127V,230V,240V,110/220V,50HZ/60HZ,380V 50HZ three-phase etc.Models are acceptable if request.

INSTALLATION AND APPLICATIONS
These pumps are suitable for pumping clean water and fluids which are not chemically aggressive to the pump components. They are extremely reliable,economical and simple to use,being particularly suitable for domestic applications such as the automatic distribution of water from small and medium-sized surge tanks, watering gardens,etc .These pumps should be installed in a covered area,protected against the weather. N.B.it is always advisable to install a foot valve or a non-return valve on the suction opening.
