Activated Carbon Fume Extraction For Fume Filtration Of Laser Cutting&Engraving PMMA/Plastic/Paper With CE Certification

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Port HongKong China
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Pure-Air
Model Number	PA-700FS

Product Description

Specifications

1.Application: for laser cutting,engraving,marking marchine to filtrate laser fume &toxic gas;
2.CE Certification

Product Description

PA-700FS Activated Carbon Fume Extraction For Fume Filtration Of Laser Cutting&Engraving PMMA/Plastic/Paper With CE Certification

1. Strict welding and painting technology achieve to high tightness and corrosion resistance cabinet.

2. Specific sound-absorbing materials reduce operating noise to improve operation efficiency.

3. This Fume Extraction use China blower, high pressure, low noise. It can effectively absorb particle and extend filter life of less power.

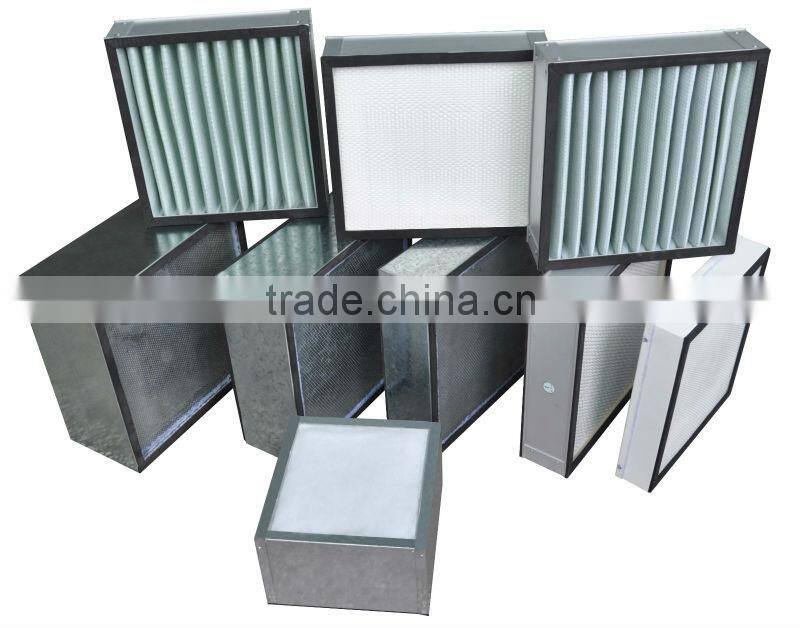

4. PA-700FS filtration system consist of four parts, they are metal filter, F5 class pre-filter, HEPA main filter and gas filter.

(a). Well-proportioned holes to ensure that large dust particles are trapped on the metal filter, to prevent them block the pre-filter.

(b). F5 class pre-filter comprised by cotton and metal mesh, full-thickness adhesive, can be adsorbed middling particles in the air to avoid main filter is blocked.

(c). Main filter consists of efficient HEPA element, in independent tests, these filters remove 99.997% of all particles above 0.3 microns and 95% down to 0.01 micron.

(d). Gas filter layer formed by the chemical materials can effectively remove harmful gases and pungent odor in the air.

5. Fume Extraction Filter Data

Filter Elements Data
Item	Technical Data	Remark
Pre-filter	F5 class	PP pre-filter.
Main-filter	H14 class HEPA	Filter can remove 99.997% of all particles above 0.3 microns and 95% down to 0.01 micron.
Air-filter	Chemical material	Chemical molecular, Oxidant & Active carbon adsorb noxious gas.
Average filtration rate	≥99.7%	It will be a little fluctuation according to different materials.

6. Fume Extraction Technical Paremeters

Blower Technical Data
Item	Technical Data	Remark
Running period	More than 10,000h	One year guarantee
Max. air flow	700m³/h	/
Input capacity	550W	Low capacity
Air pressure	2000pa	High pressure
Running sound	≤55dBA	/
Input power	110/220V, 50/60Hz	International standard

Equipment Data
Item	Technical Data	Remark
Fume & dust inlet	150mm	Single fume inlets, include one fume extract tube
Fresh air outlet	/	Trapezoid hole
Machine weight	80KG (N.W.)	Machine with all elements
Dimension	5005201250mm	Machine size
Package dimension	5806001400mm	Packed by plywood crate

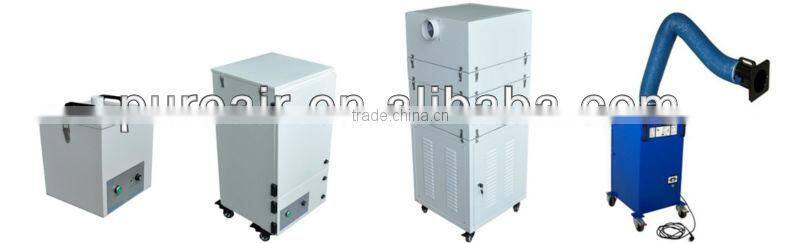

7. Application and collection Photo

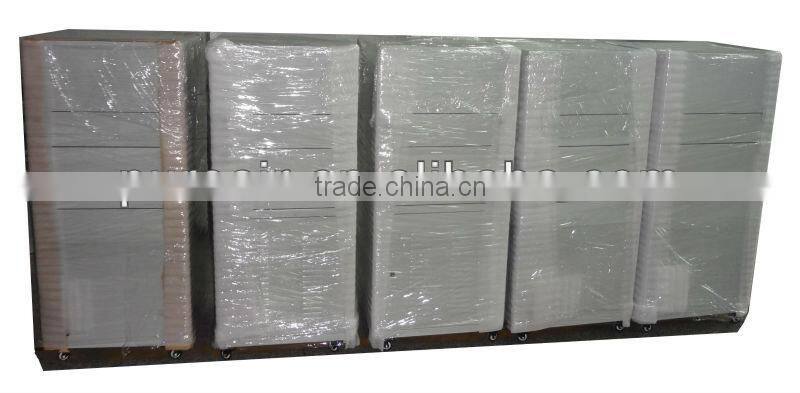

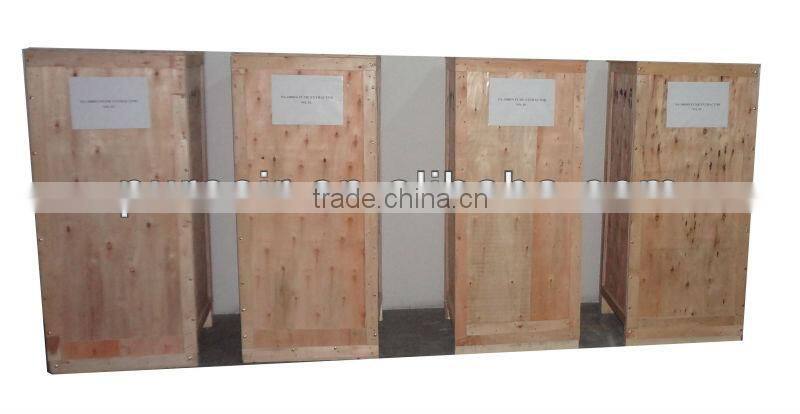

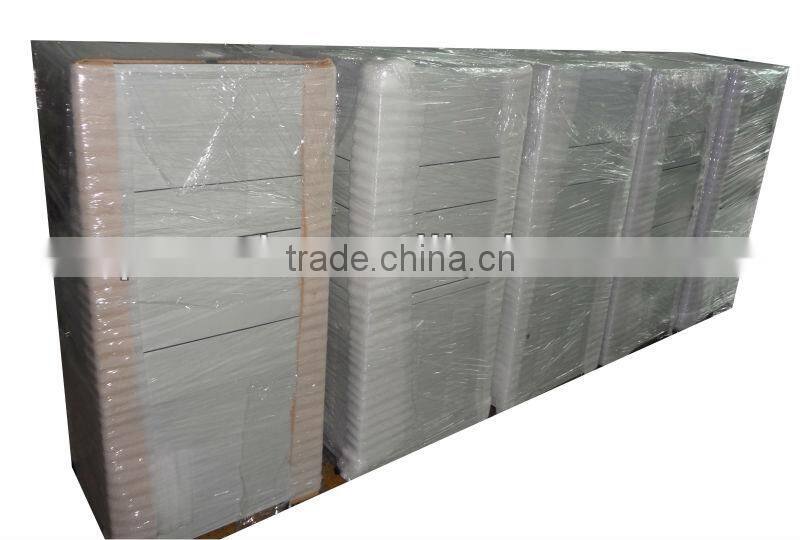

8. Packaging Photo
