PA-1000FS Pre-Filter Bag (PA1000-02) Bag Filter
US$ 1,350 - 2,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Pure-Air
Model Number:
PA-1000FS
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen;HongKong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PA-1000FS G3 Primary Filter Cotton Pad (PA1000-01)US$ 1,350 - 2,000MOQ: 1 Piece -
Pure-Air PA-500FS Gas Filter (PA500-03) With Activated Carbon FilterUS$ 1,550 - 2,000MOQ: 1 Piece
-
Pure-Air Air Filter HEPA Filter (PA500-02) For PA-500FS Fume ExtractionUS$ 1,550 - 2,000MOQ: 1 Piece
-
Pure-Air Air Filter Pre-filter (PA500-01) For PA-500FS Fume ExtractionUS$ 1,550 - 2,000MOQ: 1 Piece
-
Pure-Air Air Filter PA-300TS/TD Main Filter (PA300-03)US$ 350 - 650MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Pure-Air
Model Number
PA-1000FS
Pure-Air GCC Laser Fumes Extractor with CE Certification
1. Strict welding and painting technology achieve to high tightness and corrosion resistance cabinet.
2. Specific sound-absorbing materials reduce operating noise to improve operation efficiency.
3. This Fume Extractor use China blower, high pressure, low noise. It can effectively absorb particle and extend filter life of less power.
4. PA-700FS filtration system consist of four parts, they are metal filter, F5 class pre-filter, HEPA main filter and gas filter.
(a). Well-proportioned holes to ensure that large dust particles are trapped on the metal filter, to prevent them block the pre-filter.
(b). F5 class pre-filter comprised by cotton and metal mesh, full-thickness adhesive, can be adsorbed middling particles in the air to avoid main filter is blocked.
(c). Main filter consists of efficient HEPA element, in independent tests, these filters remove 99.997% of all particles above 0.3 microns and 95% down to 0.01 micron.
(d). Gas filter layer formed by the chemical materials can effectively remove harmful gases and pungent odor in the air.
5. Fume Extractor Filter Data
Filter Elements Data | ||
Item |
Technical Data |
Remark |
Pre-filter |
F5 class, life-time 1-3 months |
PP pre-filter. |
Main-filter |
H14 class HEPA, life-time 6-10 months |
Filter can remove 99.997% of all particles above 0.3 microns and 95% down to 0.01 micron. |
Air-filter |
Chemical material, life-time 5-6 months |
Chemical molecular, Oxidant & Active carbon adsorb noxious gas. |
Average filtration rate |
≥99.7% |
It will be a little fluctuation according to different materials. |
6. Fume Extractor Technical Paremeters
Blower Technical Data | ||
Item |
Technical Data |
Remark |
Running period |
more than 10,000h |
One year guarantee |
Max. air flow |
1000m³/h |
/ |
Input capacity |
750W |
Low capacity |
Air pressure |
2000pa |
High pressure |
Running sound |
≤60dBA |
/ |
Input power |
110/220V, 50/60Hz |
International standard |
Equipment Data | ||
Item |
Technical Data |
Remark |
Fume & dust inlet |
150mm |
Single fume inlets, include one fume extract tube |
Fresh air outlet |
/ |
Trapezoid hole |
Machine weight |
90KG (N.W.) |
Machine with all elements |
Dimension |
500*520*1500mm |
Machine size |
Package dimension |
600*650*1650mm |
Packed by plywood crate |

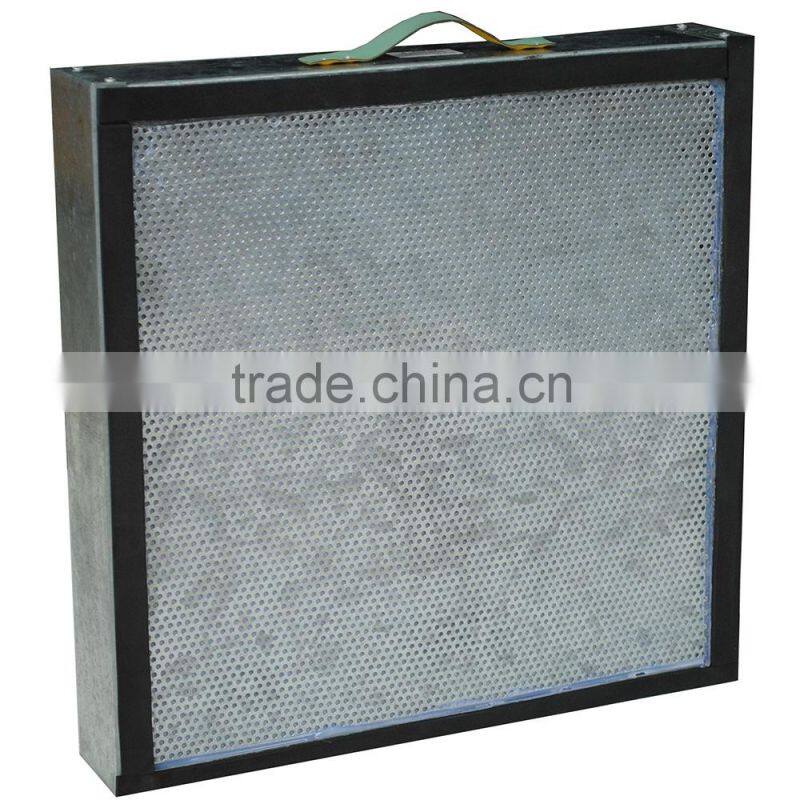

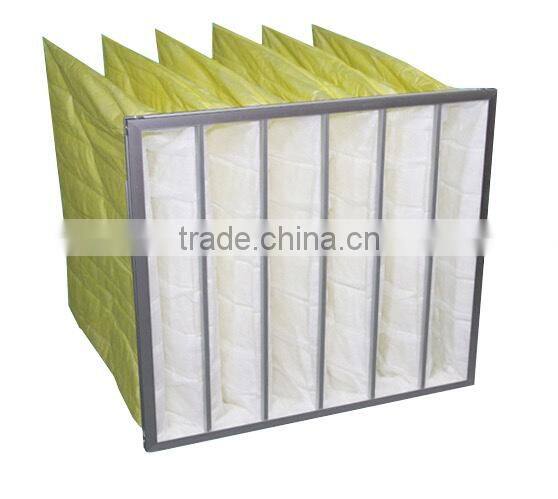

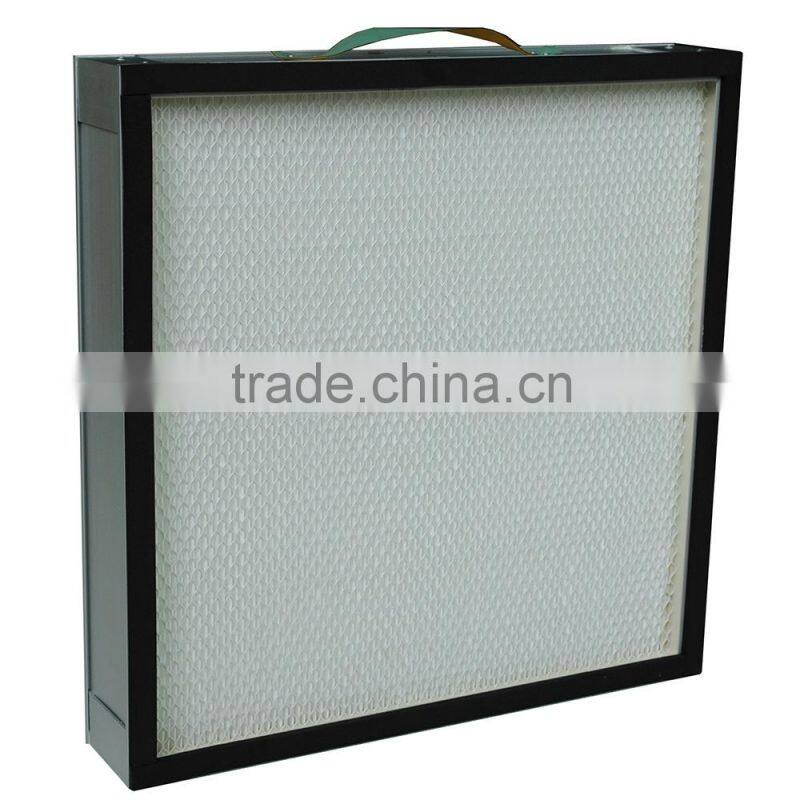

7. Product & Filter Photo
8. Packaging Photo
9. Why choose us?
1) We are not a trading company, we are a professional fume extractor factory, well expertise in the field of industrial air purification. With many different product types: Laser fume extractor / Soldering Fume Extractor / Welding Fume Extraction / Dust Collector / Metal Cutting Fume Filter / Printing Odor Filter / Beauty & Medical Fume Filter, Oil Filter etc.
2) Comptitive Price & High Quality Product;
3) Very Short Lead Time, we normally keep stocks for regualr products, so production time 0-3days for most customers;
4) Our factory is glad to make customized products as per different application, we produce suitable products for clients to resolve their air purification demand;
5) Strong team with solution providing, engineering, system design, best product suggestion, quality control, delivery, good after sales service, etc
6) You can get your reply during 12 hours.
10. Contact us
We will reply you shortly during 12 hours.
Contact Person: Ms Charlene Chen
E-mail: sales01(at)
Skype: pureairtech
Tel: 0086-(0)-769-22867970
Mobile: 0086-18676972919(whatsapp)
